Acura CL (1997 – 1999) – wiring diagrams – driver information center/messege center

Acura CL (1997 – 1999) – wiring diagrams – driver information center/messege center

Year of productions:  1997, 1998, 1999

Driver information center/messege center

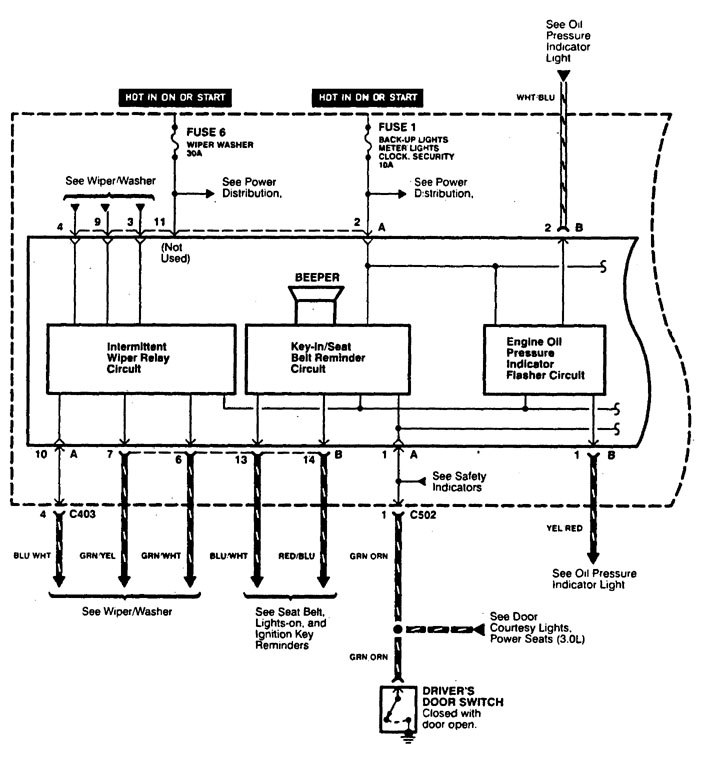

Acura CL - wiring diagram - driver information center/message center (part 1)
Acura CL – wiring diagram – driver information center/message center (part 1)

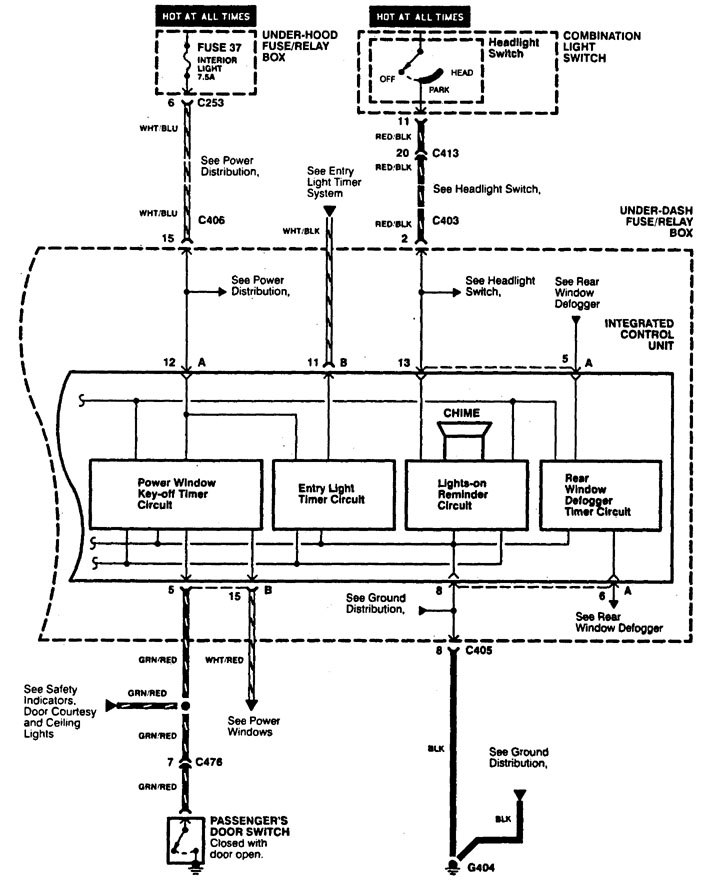

Acura CL - wiring diagram - driver information center/message center (part 2)
Acura CL – wiring diagram – driver information center/message center (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
