Wuling Sunshine – fuse box diagram

Year of production:

Distribution of fuse and relay

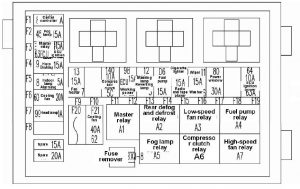

Wuling Sunshine - fuse box diagram
Wuling Sunshine – fuse box diagram
Fuse Consumer Ampere rating [A]
F1 Center controller
F2 Fog lamp 15
F3 Master relay, ECU ignition 15
F4 Horn, Braking 15
F5 Indoor lamp, alarming 5
F6 Cooling fan 20
F7 Headlamp
F8
F9 Fan heater 15
F10
F11 Compressor clutch 10
F12 ECU, Working power 15
F13 Steering lamp, reversing lamp
F14 Fuel pump 15
F15 Cigarette lighter, radio and tape player 15
F16 Wiper, washer 15
F17 Power window 30
F18
F19 ECU, Ignition power 10
F20
F21 Cooling fan 40
A1 Master relay
A2 Rear defog and defrost relay
A3 Low-speed fan relay
A4 Fuel pump relay
A5 Fog lamp relay
A6 Compressor clutch relay
A7 High-speed fan relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
