Headlamps

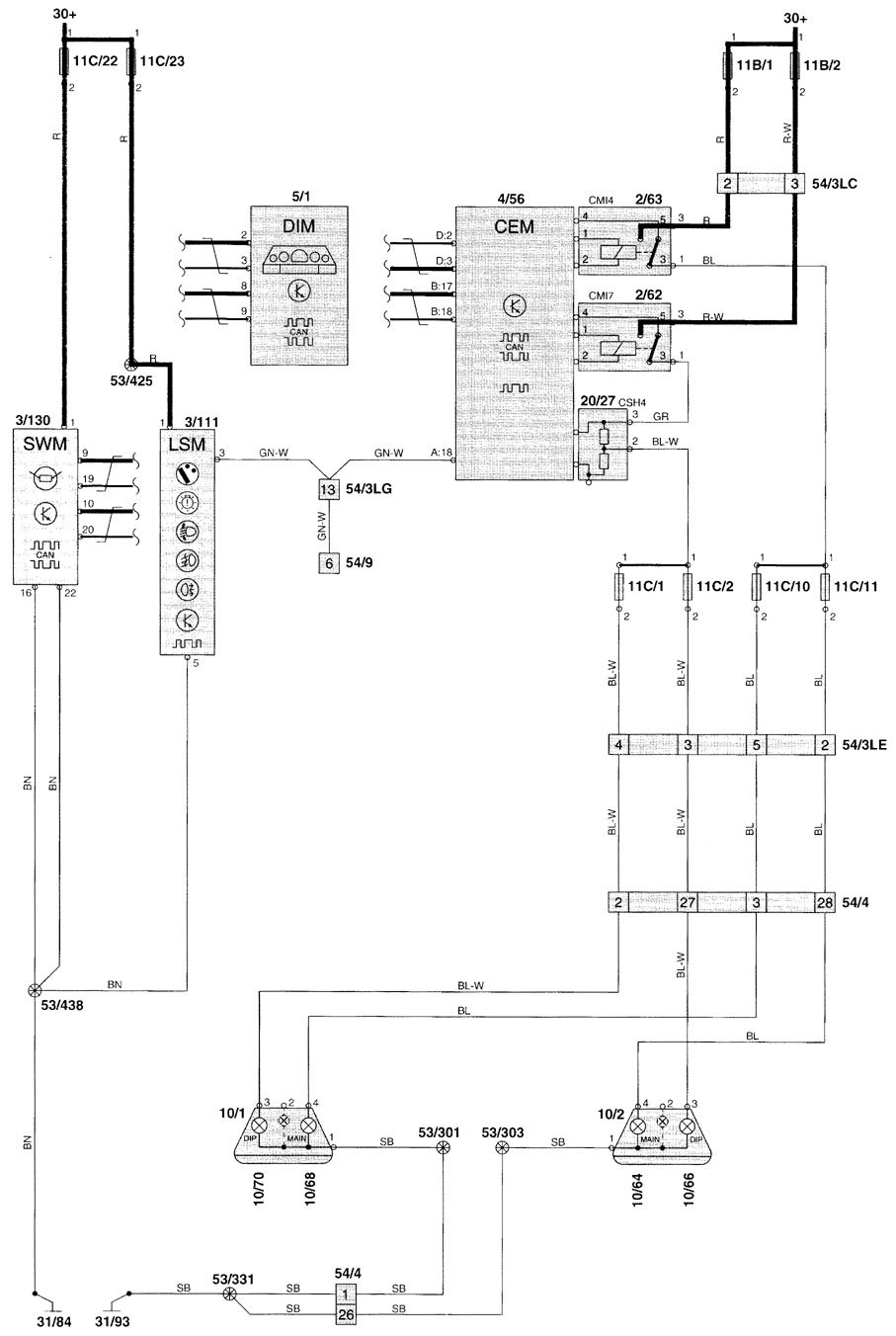

Volvo V70 - wiring diagram - headlamps (part 1)
Volvo V70 – wiring diagram – headlamps (part 1)

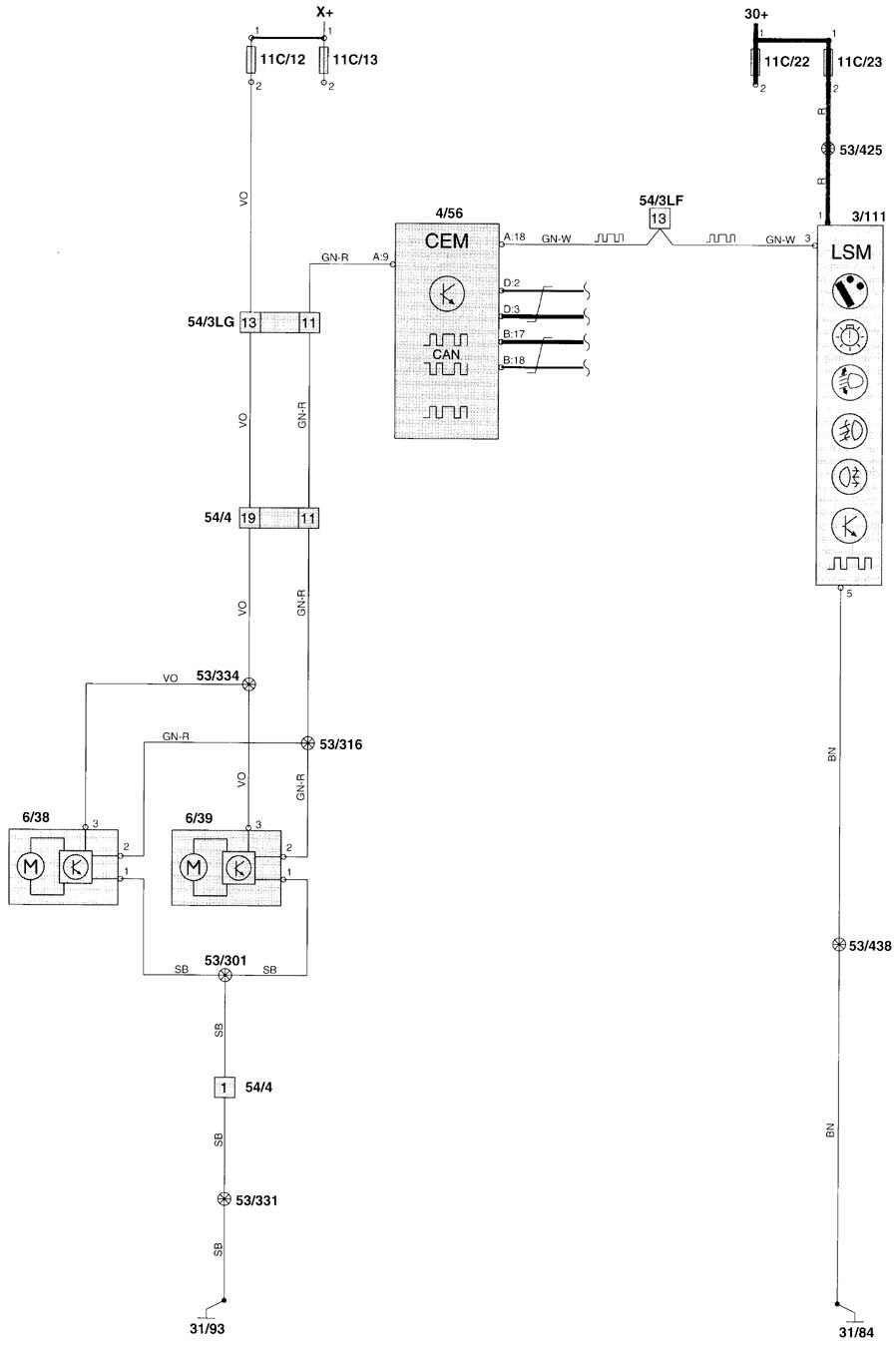

Volvo V70 - wiring diagram - headlamps (part 2)
Volvo V70 – wiring diagram – headlamps (part 2)

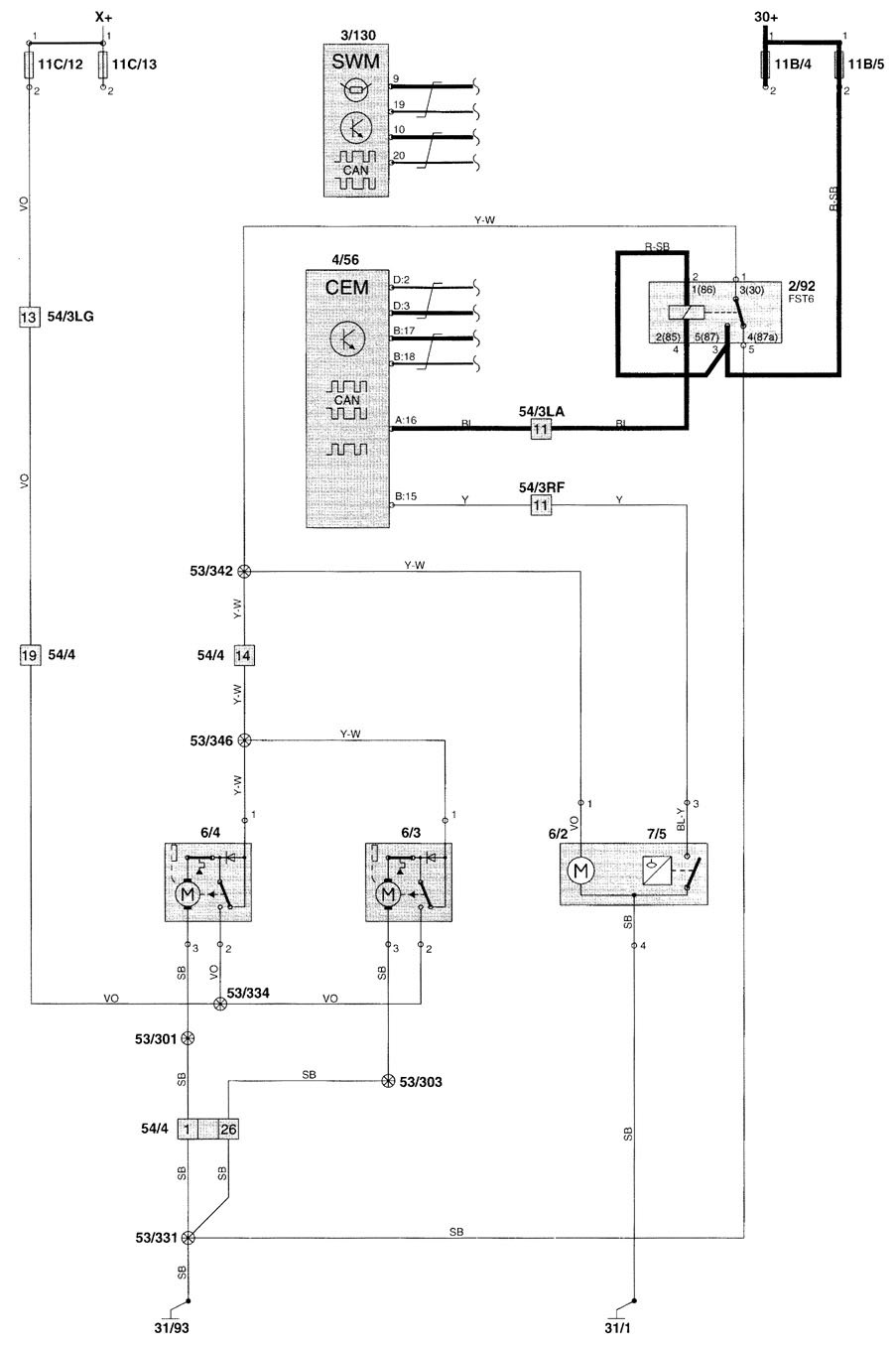

Volvo V70 - wiring diagram - headlamps (part 3)
Volvo V70 – wiring diagram – headlamps (part 3)
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
