Volvo 960 (1997) – wiring diagrams – power/auxiliary outlet

Volvo 960 (1997) – wiring diagrams – power/auxiliary outlet

Year of productions:  1997

Power/auxiliary outlet

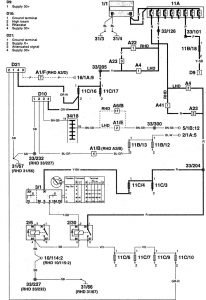

Volvo 960 - wiring diagram - power/auxiliary-outlet (part 1)

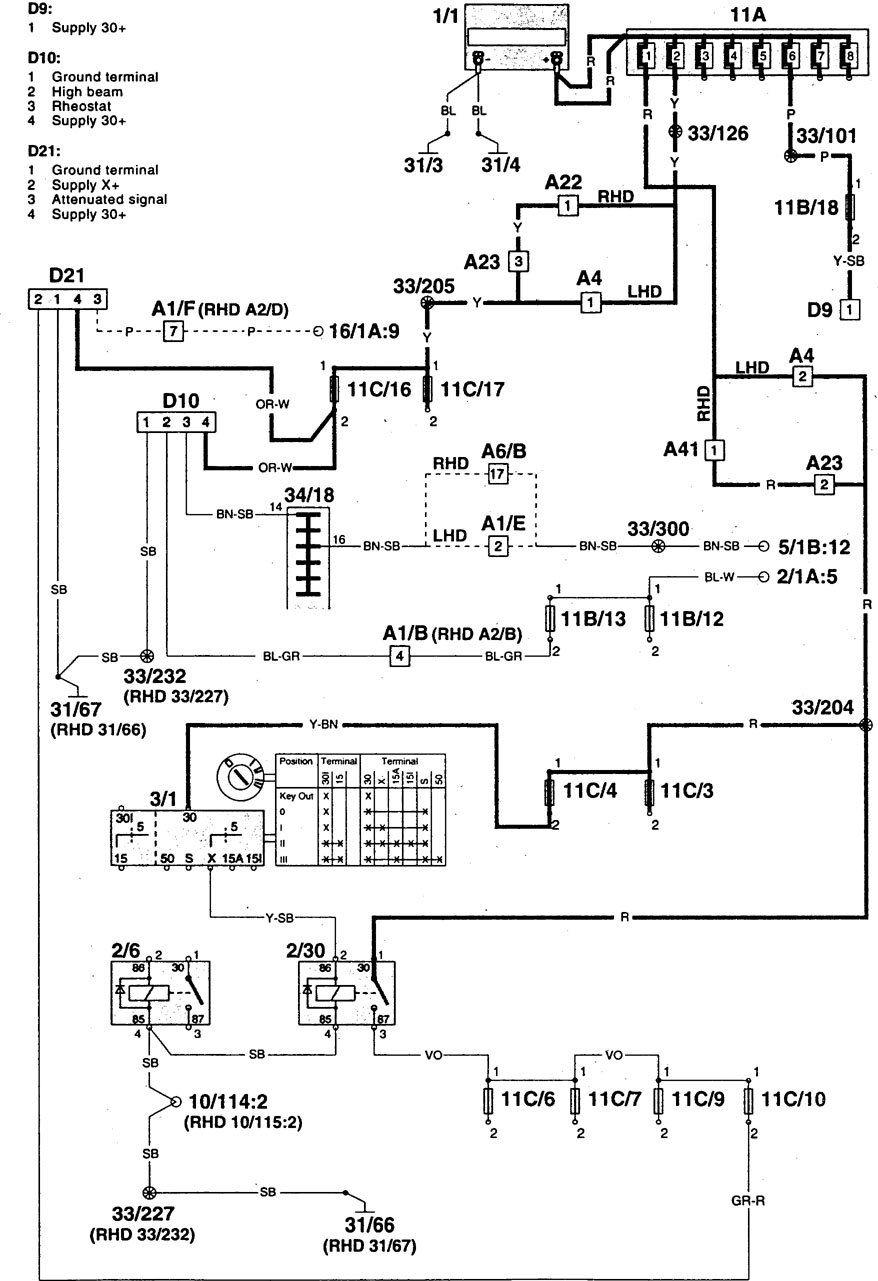

Volvo 960 – wiring diagram – power/auxiliary-outlet (part 1)
Volvo 960 - wiring diagram - power/auxiliary outlet (part 2)
Volvo 960 – wiring diagram – power/auxiliary outlet (part 2)
Volvo 960 - wiring diagram - power/auxiliary outlet (part 3)
Volvo 960 – wiring diagram – power/auxiliary outlet (part 3)
Volvo 960 - wiring diagram - power/auxiliary outlet (part 4)
Volvo 960 – wiring diagram – power/auxiliary outlet (part 4)
Volvo 960 - wiring diagram - power/auxiliary outlet (part 5)
Volvo 960 – wiring diagram – power/auxiliary outlet (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
