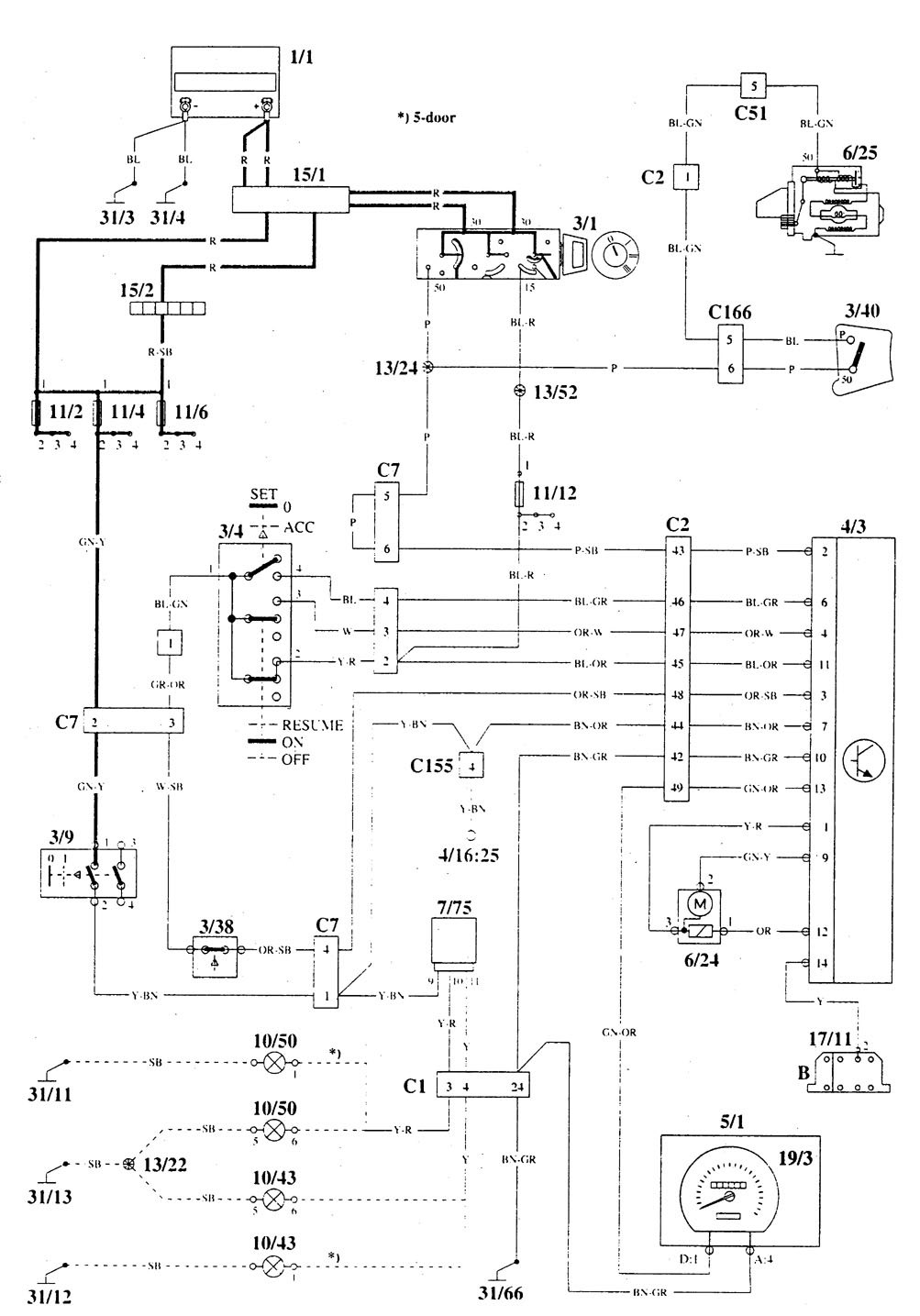

Volvo 940 (1995) – wiring diagrams – speed control

Acura TL (2003 – 2005) – wiring diagrams – horn Year of productions:  2003, 2004, 2005 Horn WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura RL (2010) – wiring diagrams – collision mitigation brake system Year of productions:  2010 Collision mitigation brake system WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]

Acura TL (2003 – 2004) – wiring diagrams – symbol ID Year of productions:  2003, 2004 Symbol ID WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
