Volvo 940 (1995) – wiring diagrams – heated seats

Volvo 940 (1995) – wiring diagrams – heated seats

Year of productions:  1995

Heated seats

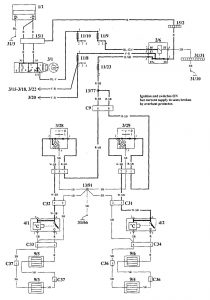

Volvo 940 – wiring diagrams – heated seats (part 1)

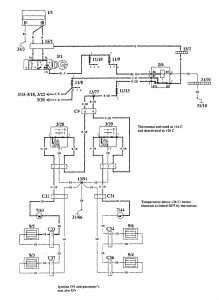

Volvo 940 – wiring diagrams – heated seats (part 2)
Volvo 940 – wiring diagram – heated seats (part 3)
Volvo 940 – wiring diagram – heated seats (part 4)
Volvo 940 – wiring diagram – heated seats (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
