Volvo 940 (1993 – 1994) – wiring diagrams – power seats

13 June 2017 admin 940, Volvo 0

Volvo 940 (1993 – 1994) – wiring diagrams – power seats

Year of productions:  1993, 1994

Power seats

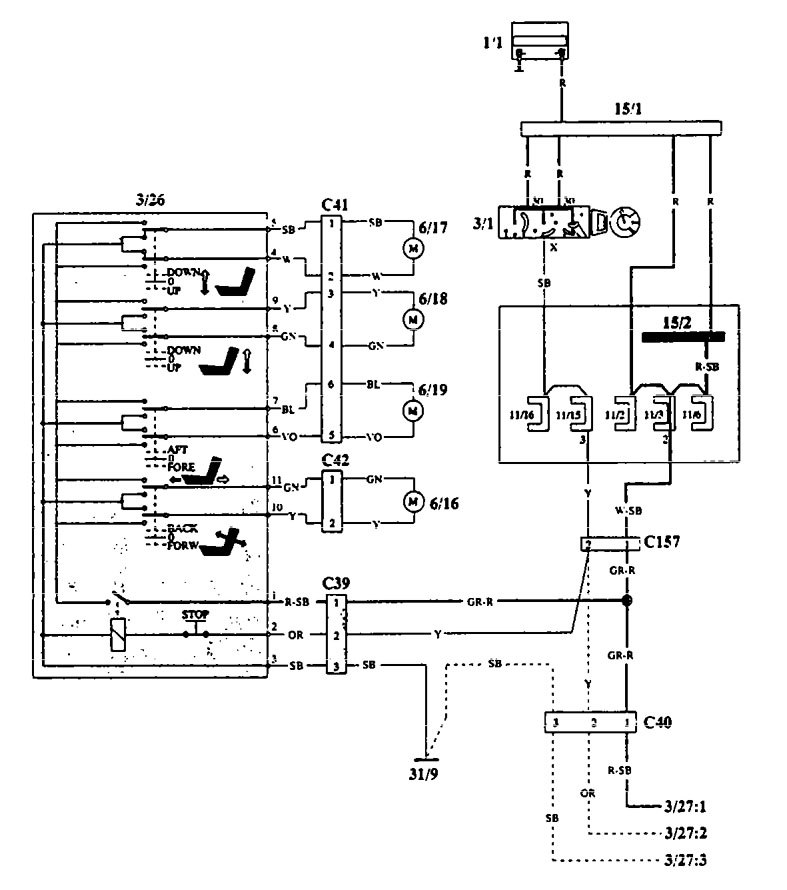

Volvo 940 (1993) – wiring diagrams – power seats (part 1)
Volvo 940 (1993) – wiring diagrams – power seats (part 2)
Volvo 940 (1993) – wiring diagrams – power seats (part 3)
Volvo 940 (1993) – wiring diagrams – power seats (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
