Volvo 850 (1993) – wiring diagrams – power mirrors

Volvo 850 (1993) – wiring diagrams – power mirrors

Year of productions:  1993

Power mirrors

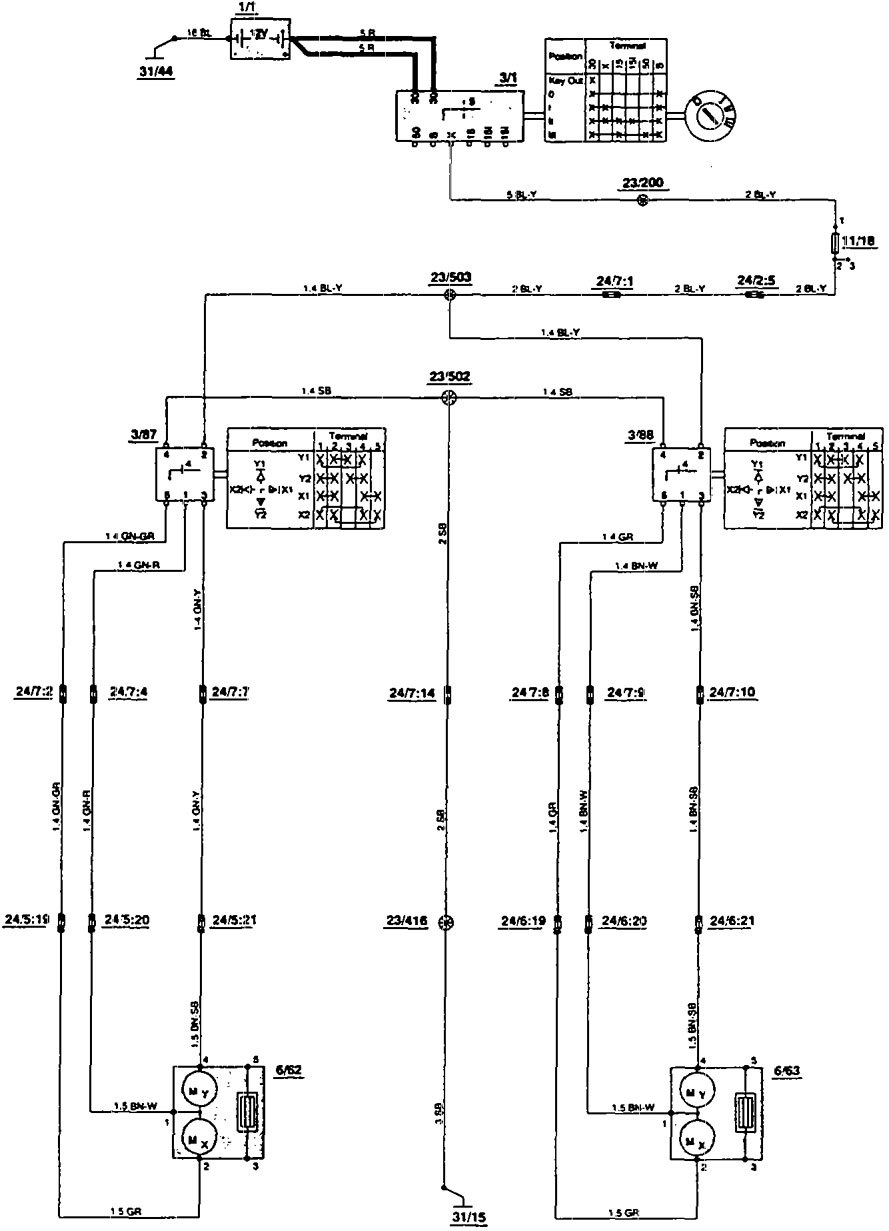

Volvo 850 - wiring diagram - power mirrors (part 1)
Volvo 850 – wiring diagram – power mirrors (part 1)

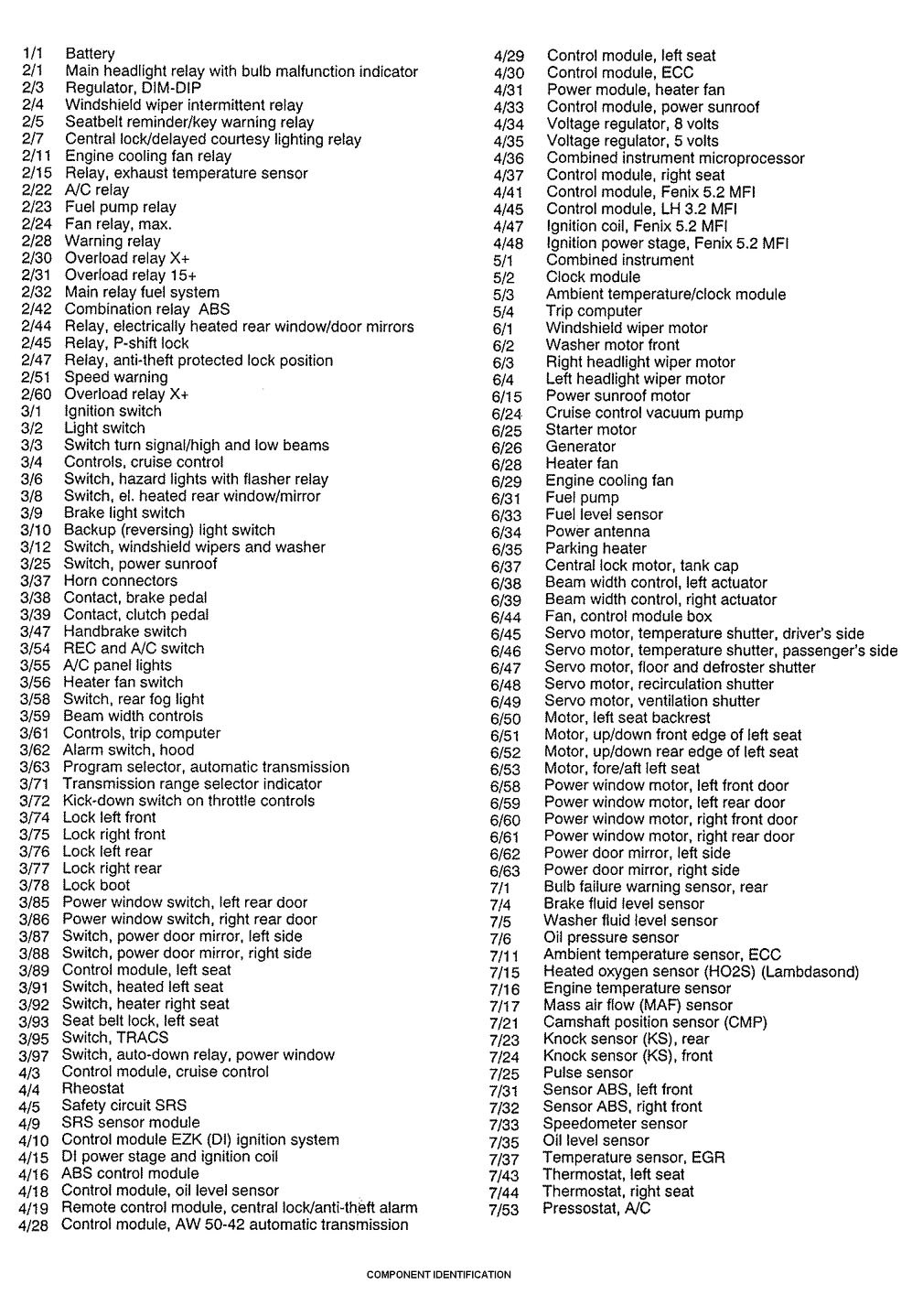

Volvo 850 - wiring diagram - power mirrors (part 2)
Volvo 850 – wiring diagram – power mirrors (part 2)

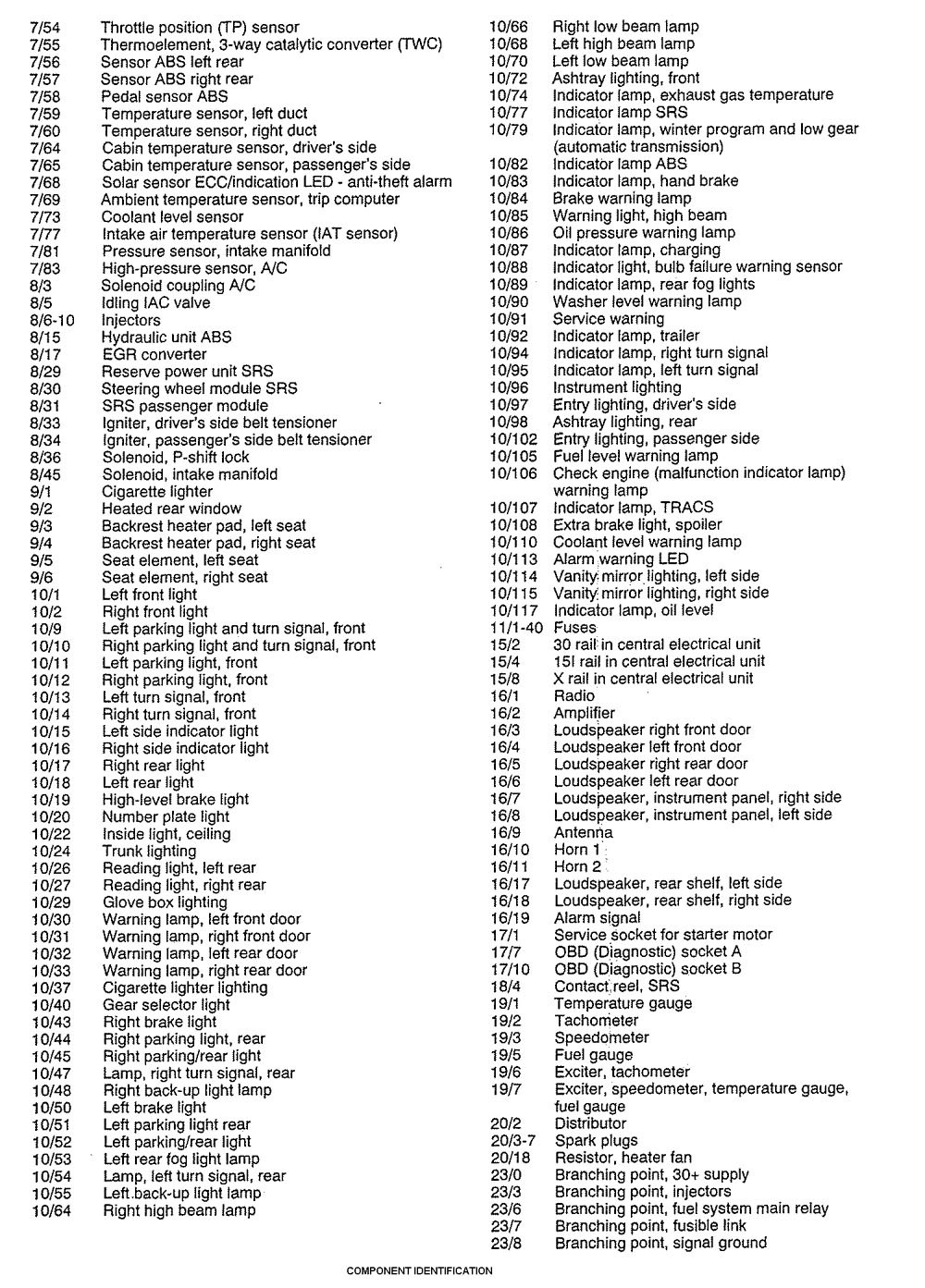

Volvo 850 - wiring diagram - power mirrors (part 3)
Volvo 850 – wiring diagram – power mirrors (part 3)

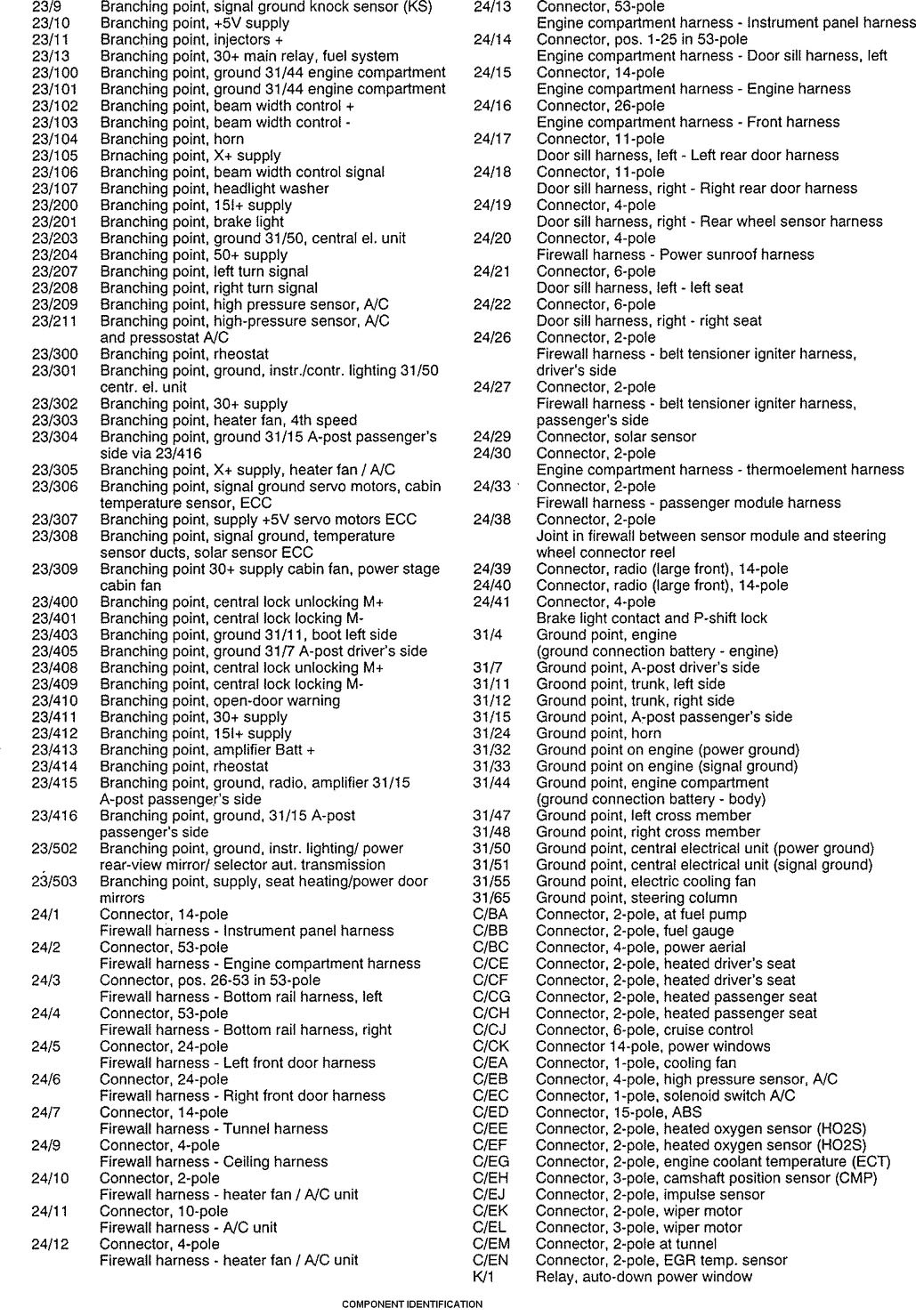

Volvo 850 - wiring diagram - power mirrors (part 4)
Volvo 850 – wiring diagram – power mirrors (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
