Volvo 740 (1992) – wiring diagrams – instrumentation

Volvo 740 (1992) – wiring diagrams – instrumentation

Year of productions:  1992

Instrumentation

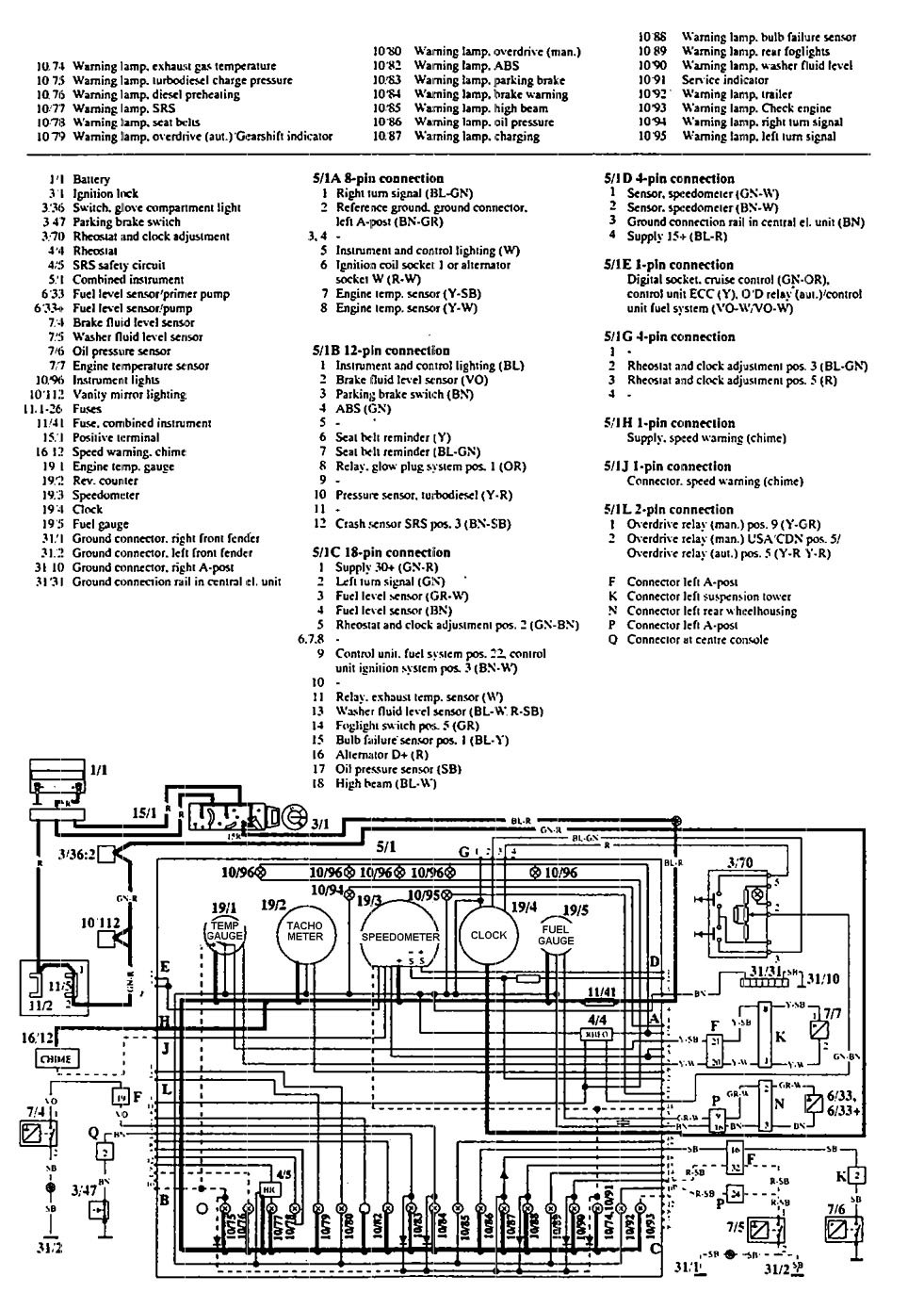

Version 1

Volvo 740 – wiring diagram – instrumentation

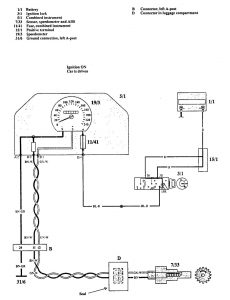

Version 2

Volvo 740 – wiring diagram – instrumentation

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
