Volvo 740 (1991) – wiring diagrams – headlamps

Volvo 740 (1991) – wiring diagrams – headlamps

Year of productions:  1991

Headlamps

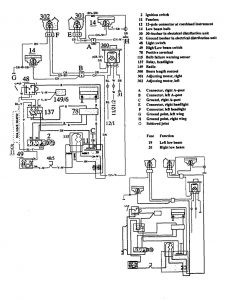

Version 1

Volvo 740 – wiring diagram – headlamps

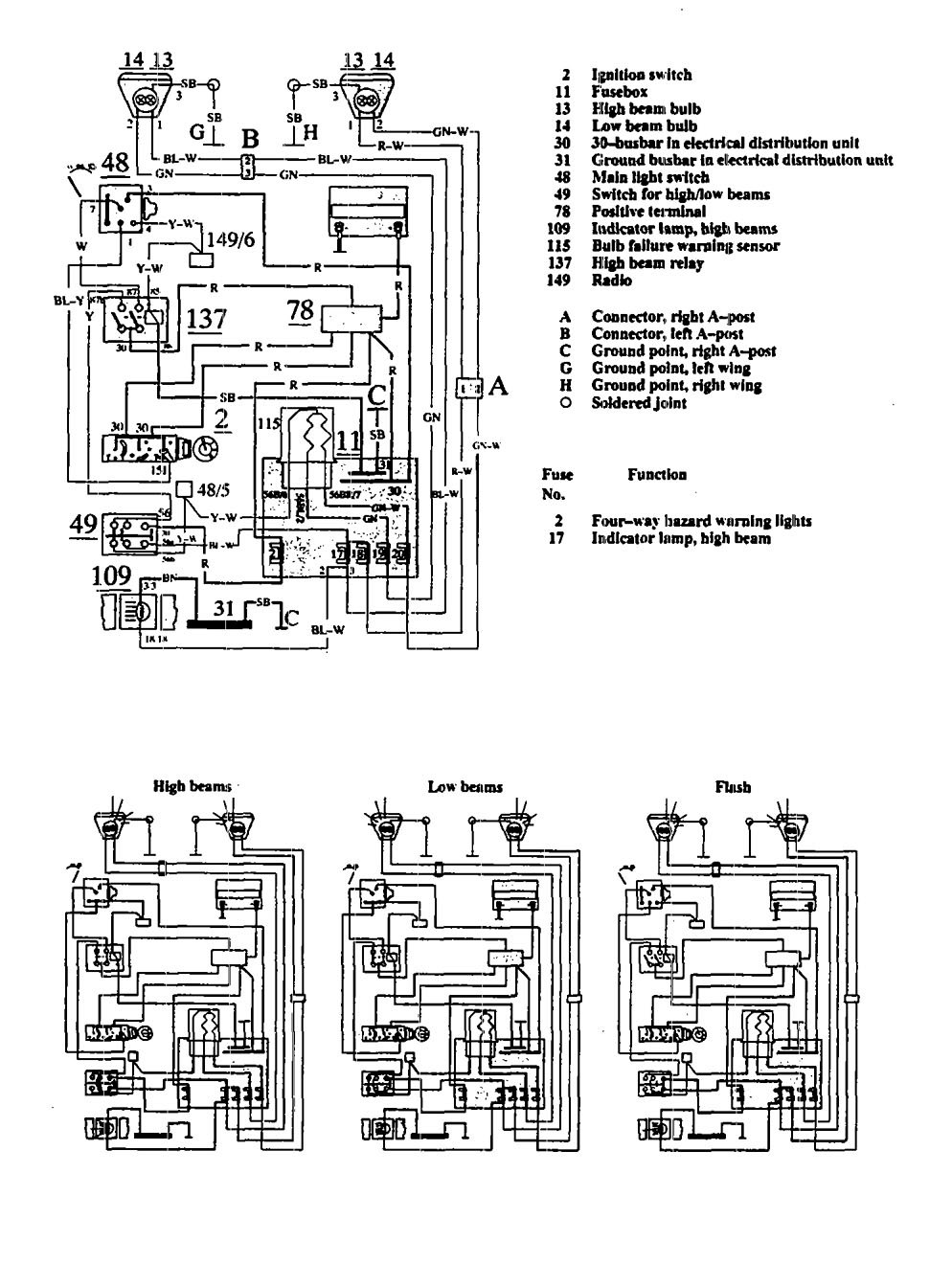

Version 2

Volvo 740 – wiring diagram – headlamps

Version 3

Volvo 740 – wiring diagram – headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
