Volvo 740 (1991) – wiring diagrams – glove compartment lamp

Volvo 740 (1991) – wiring diagrams – glove compartment lamp

Year of productions:  1991

Glove compartment lamp

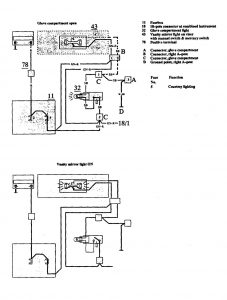

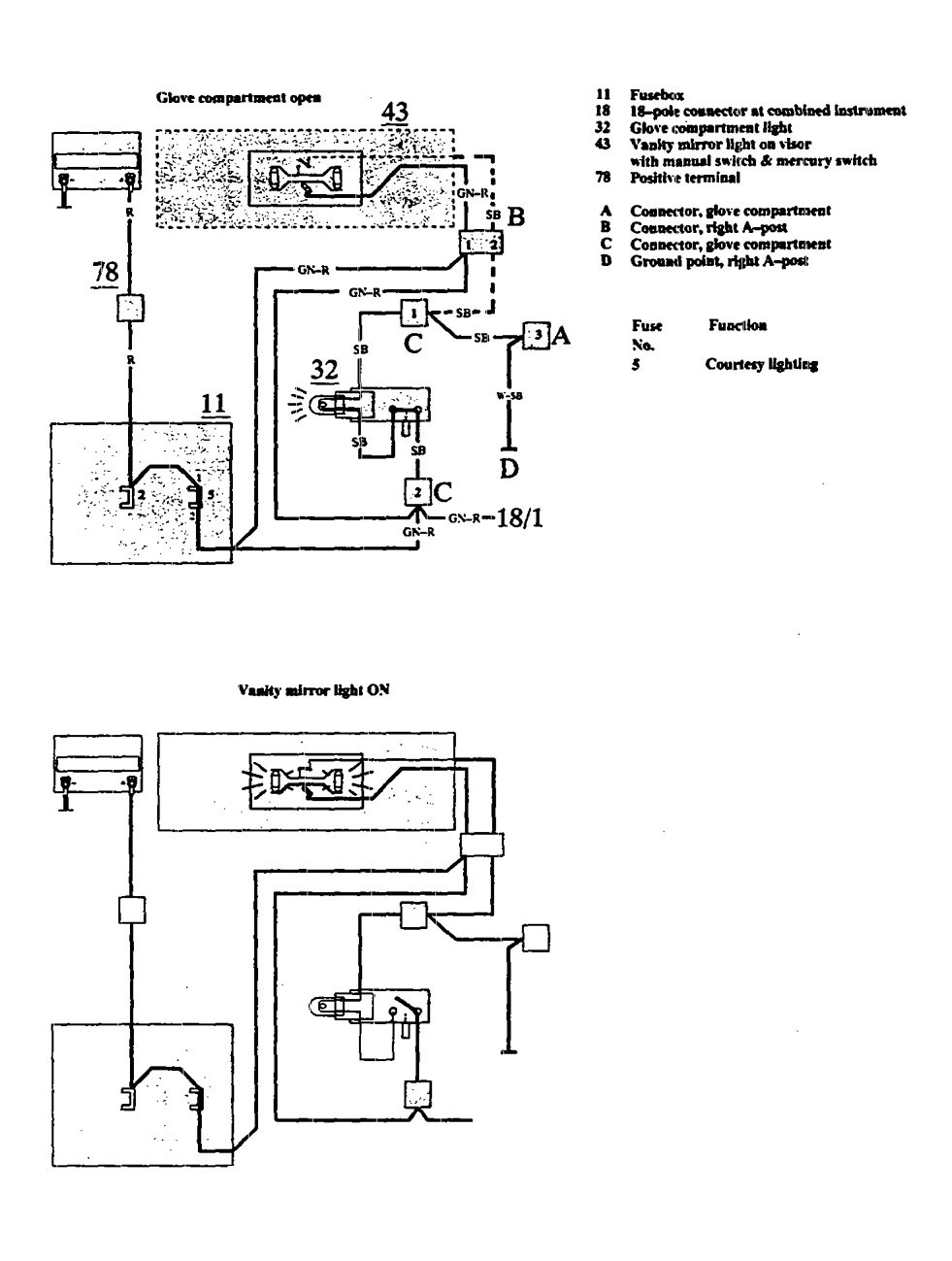

Volvo 740 – wiring diagram – glove compartment lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
