Year of productions: 1991, 1992, 1993

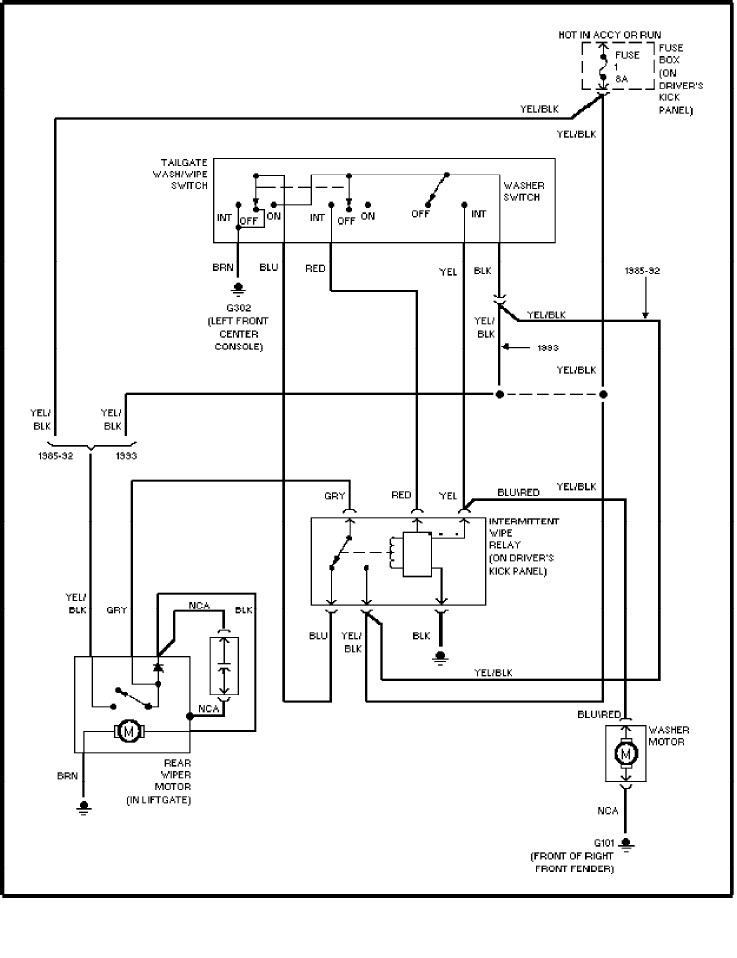

Rear washer/wiper W/ intermittent relay circuit

Volvo 240 – wiring diagrams – rear washer/wiper W/ intermittent relay circuit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
