Volvo 240 (1991 – 1993) – wiring diagrams – heated seats circuit

Volvo 240 (1991 – 1993) – wiring diagrams –  heated seat circuit

Year of productions: 1991, 1992, 1993

Heated seat circuit

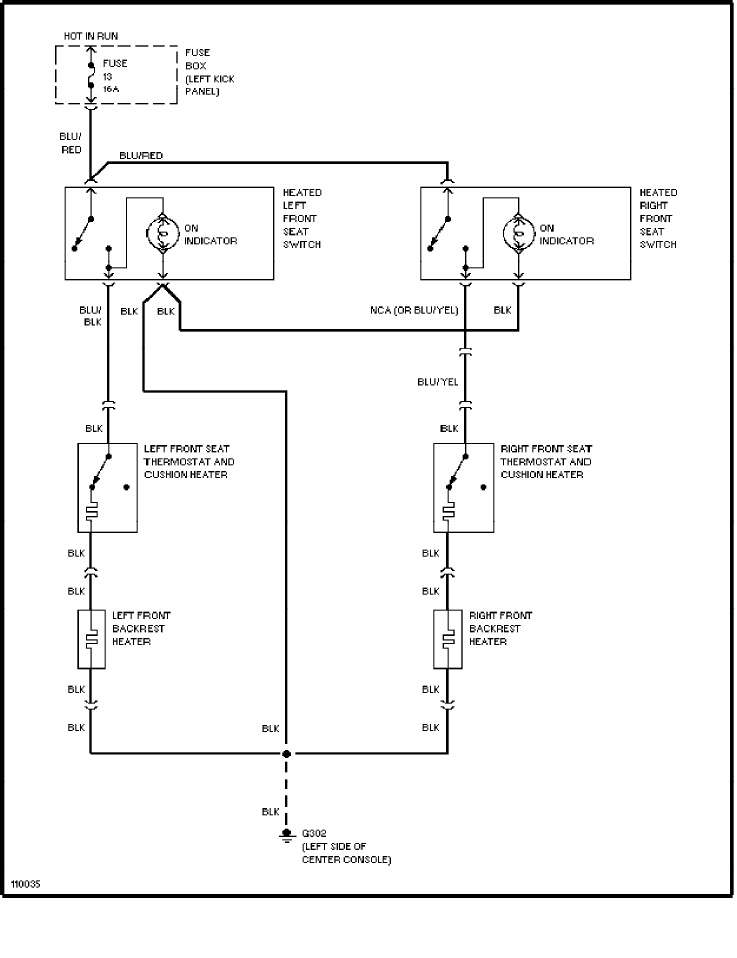

Volvo 240 – wiring diagrams – heated seats circuit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
