Volvo 240 (1975) – wiring diagrams – starting circuits

Volvo 240 (1975) – wiring diagrams – starting circuits

Year of productions: 1975

Starting circuits

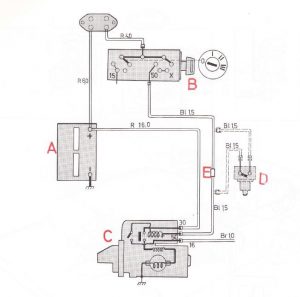

Volvo 240 – wiring diagram – starting circuits

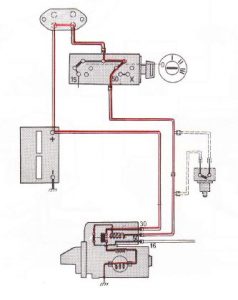

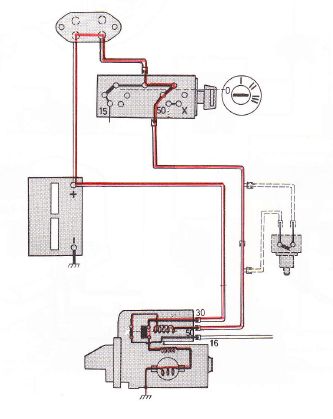

Volvo 240 – wiring diagram – starting circuits (starter motor operating)

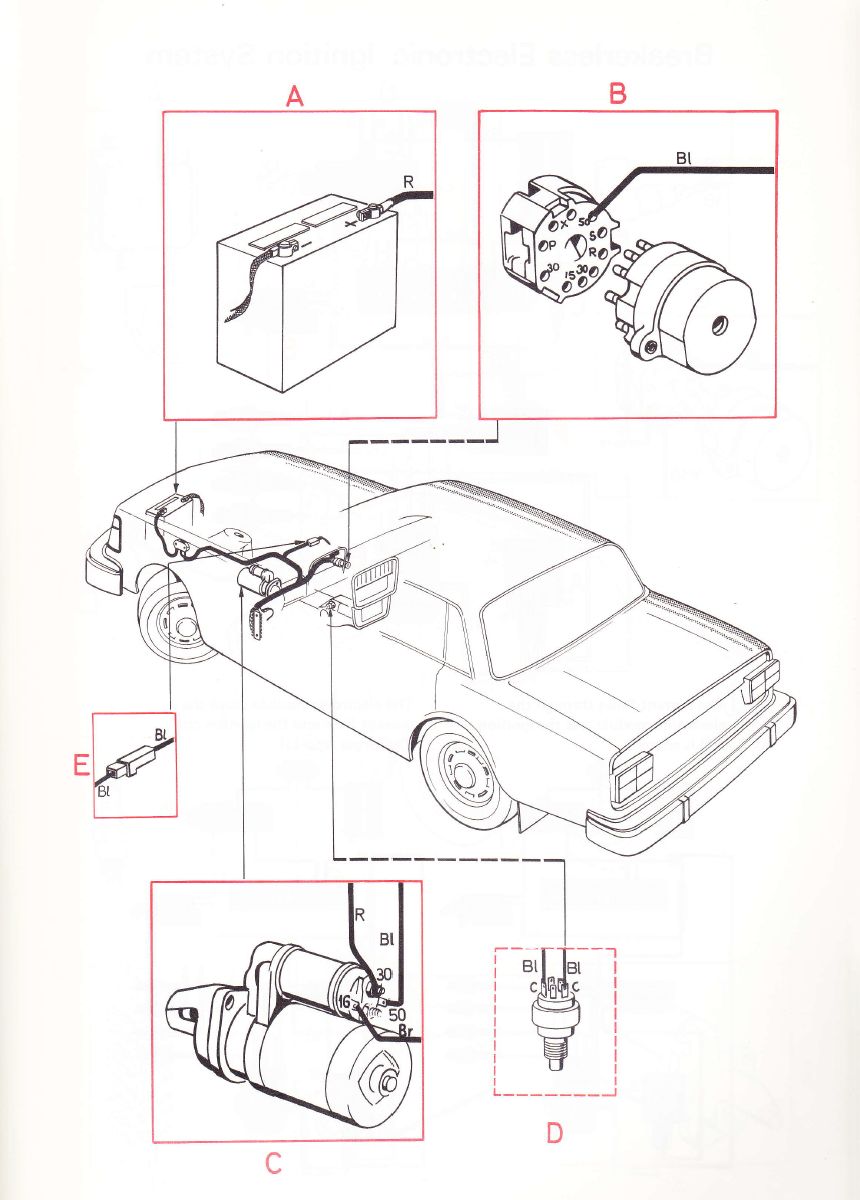

Volvo 240 – wiring diagram – starting circuits location



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
