TVR Tuscan (1999 – 2006) – fuse box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Fuses

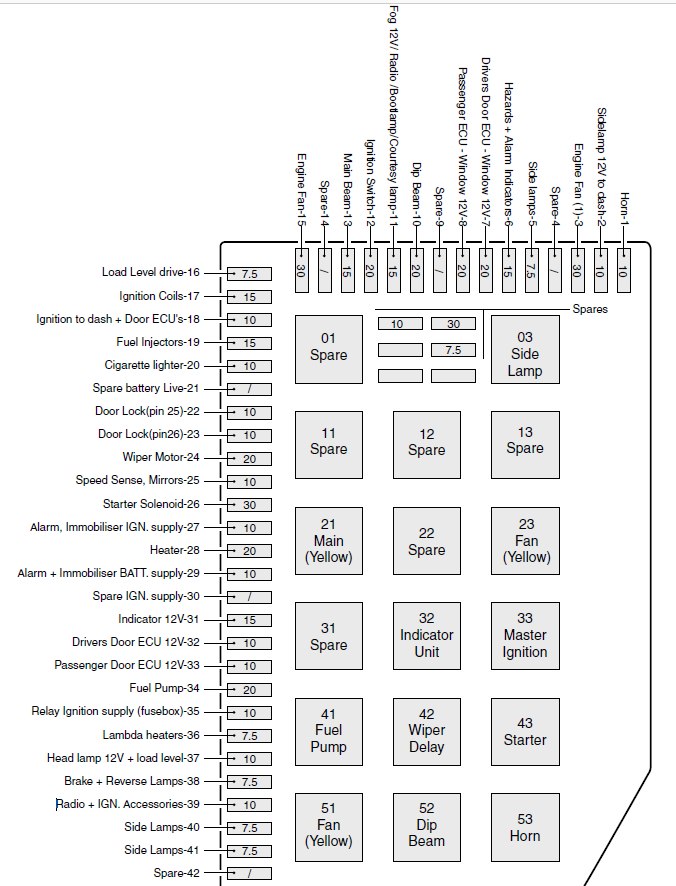

TVR Tuscan - wiring diagram - fuse box diagram
TVR Tuscan – wiring diagram – fuse box diagram
Fuse Consumer Ampere rating [A]
1 Horn 10
2 Sidelamp 12V to dash 10
3 Engine Fan (1) 30
4 Spare
5 Side lamps 7,5
6 Hazards + Alarm indicators 15
7 Driver’s Door ECU – window 12V 20
8 Passenger ECU – window 12V 20
9 Spare
10 Dip Beam 20
11 Fog 12V/Radio/Bootlamp/Courtesy lamp 15
12 Ignition switch 20
13 Main beam 15
14 Spare
15 Engine fan 30
16 Load level drive 7,5
17 Ignition Coils 15
18 Ignition to dash + Door ECU’s 10
19 Fuel Injectiors 15
20 Cigarette lighter 10
21 Spare battery live
22 Door lock (pin 25) 10
23 Door lock (pin 26) 10
24 Wiper motor 20
25 Speed Sense, Mirrors 10
26 Starter Solenoid 30
27 Alarm, Immobiliser IGN, supply 10
28 Heater 20
29 Alarm + Immobiliser BATT. supply 10
30 Spare IGN. supply
31 Indicator 12V 15
32 Drivers Door ECU 12V 10
33 Passenger Door ECU 12V 10
34 Fuel pump 20
35 Relay ignition supply (fusebox) 10
36 Lambda heaters 7,5
37 Head lamp 12V +  load level 10
38 Brake  + Reverse lamps 7,5
39 Radio + IGN.Accessories 10
40 Side Lamps 7,5
41 Side Lamps 7,5
42 Spare
01 Spare
03 Side Lamp
11 Spare
12 Spare
13 Spare
21 Main (Yellow)
22 Spare
23 Fan (Yellow)
31 Spare
32 Indicator Unit
33 Master ignition
41 Fuel pump
42 Wiper Delay
43 Starter
51 Fan (Yellow)
52 Dip beam
53 Horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
