TATA Tiago (2016 – 2017) – fuse box diagram

Year of production: 2016, 2017

Battery mounted fuse box

TATA Tiago - fuse box -  battery
TATA Tiago – fuse box – battery
Fuse Function Ampere rating [A]
PF1 STARTER MOTOR CAL 1

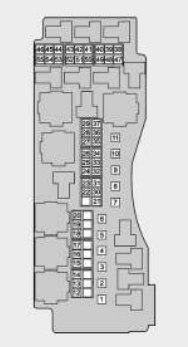

Engine compartment fuse and relay box

TATA  Tiago - fuse box -  engine compartment
TATA Tiago – fuse box –
engine compartment
Fuse Function Ampere rating [A]
1 INTERIOR F/B 2 IGNITION 60
2 ABS 40
3 GLOW PLUG (DIESEL) 60
4 COOLING FAN HIGH SPEED 40
5 EPAS 60
6
7 INTERIOR F/B 1 BATTERY 60
8 UNDER BONNET F/R BOX 60
9
10 IGNITION LOAD 60
11
12 COMPRESSOR 10
13 STARTER SOLENOID 20
14 ABS ECU 25
15
16 HORN HIGH /LOW TONE 15
17 FRONT FOG 10
18 EMS BATTERY 10
19
20 FUEL PUMP 20
21 BRAKE LAMP 10
22 RELAY COIL 5
23
24 FRONT WIPER MOTOR 20
25 ABS 5
26 WASHER MOTOR 10
27
28 REVERSE & BRAKE LAMP 10
29 REAR WIPER 10
38 EMS ECU 20
39 EMS ECU 15
40 INJECTORS (PETROL) 20
41
42 HEAD LAMP LOW 15
43 EMS IGN 10
44
45
46 HEAD LAMP HIGH 15

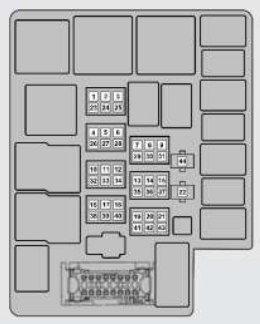

Cabin wiring harness fuses & relay box

TATA Tiago - fuse box -  cabin compartment
TATA Tiago – fuse box – cabin compartment
Fuse Function Ampere rating [A]
1 AIR BAG 10
2 ACCESSORY 15
3
4 BCM 15
5 INTERIOR LAMP 5
6 MIRROR ADJUST MOTOR 5
7 BCM/POSITION RH 15/5
8 CLUSTER / OBD 10
9 BCM/POSITION LH 15/5
10 KEY IN AFTER MARKET
11 IMMOBILIZER / EPAS 5
12
13 BLOWER MOTOR 30
14 CDL / ACCESSORY 15
15 POWER SOCKET 15
16 RELAY COILS 5
17
18 HVAC 10
19 HRW / FLASHER 25/10
20 IGN SUPPLY 10
21 POWER SOCKET 15
22 TRANSIT/INFOTAINMENT 15



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
