TATA Indica Vista & Vista – fuse box diagram

Year of production: 2017

Engine compartment

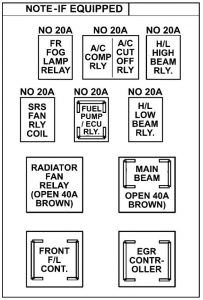

TDI/Quadrajet/Safire  engine compartment fuse box (A)

TATA Indica - wiring diagram - fuse box - engine compartment (box A)
TATA Indica – wiring diagram – fuse box – engine compartment (box A)

Quadrajet engine compartment fuse box (B)

TATA Indica - fuse box - engine compartment (box B) - Quadrajet
TATA Indica – fuse box –
engine compartment (box B) – Quadrajet

TDI  engine compartment fuse box (B)

TATA Indica - fuse box - engine compartment (box B) - TDI
TATA Indica – fuse box –
engine compartment (box B) – TDI

Safire  engine compartment fuse box (B)

TATA Indica - fuse box - engine compartment (box B) - Safire
TATA Indica – fuse box –
engine compartment (box B) – Safire

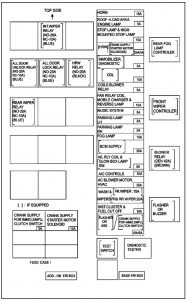

Cabine compartment (Quadrajet/TDI/Safire)

TATA Indica - fuse box - cabin
TATA Indica – fuse box –
cabin

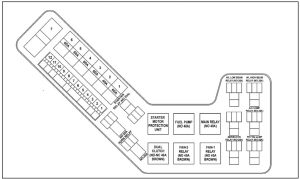

Engine compartment

TATA Indica -fuse box - engine compartment
TATA Indica -fuse box – engine compartment
Fuse Function Ampere rating [A]
1 FAN HIGH SPEED 30
2 FAN LOW SPEED 30
3 HL LOW BEAM 15
4 HL HIGH BEAM 15
5 MAIN RELAY 30
6 COIL MAIN RELAY 15
7 COIL & SENSOR W/H 20
8 FUEL FILTER & ECU 10
9 GLOW PLUG TIMER 10
10 FUEL PUMP RELAY 20
11 ECU 10
12



Fuse Function Ampere rating [A]
1 GLOW PLUG SUPPLY 60
2 ABS 40
3 FAN 60
4 ALTERNATOR 60
5 IGNITION 60
6

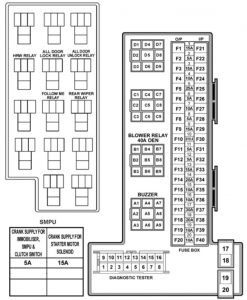

Cocpit fuse box vista tech

TATA Indica - fuse box - cocpit fuse box vista tech
TATA Indica – fuse box – cocpit fuse box vista tech
Fuse Function Ampere rating [A]
1 HORN 15
2 ROOF, ENGINE & LOAD AREA LAMP 5
3 MUSIC SYSTEM ,CLOCK & INSTRUMENT CLUSTER 15
4 STOP LAMP & HIGH MOUNTED STOP LAMP 10
5 HEATED RR WINDOWS 25
6 IMMOBILIZER & DIAGNOSTIC 5
7 CDL 10
8 COILS BLOWER RELAY 5
9 MOBILE CHARGER & REVERSE LAMP (SENSER W/H) 15
10 CASSETTE PLAYER & RADIO 5/10
11 POSITION LAMP LH 5
12 POSITION LAMP RH 5
13 FOG LAMP 20
14 BCM
15 H/L RLY COIL 10
16 AC CONTROLS 10
17 VENTILATION MOTOR, HVAC 30
18 WASH & WIPERS 20
19 INST. CLUSTER, FUEL CUT OFF 10
20 ABS 10

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
