Smart Fortwo (2008) – fuse box diagram

Year of production: 2008

Fuse box in passenger compartment

The fuse box is located on the driver’s side below the dashboard.

Front side

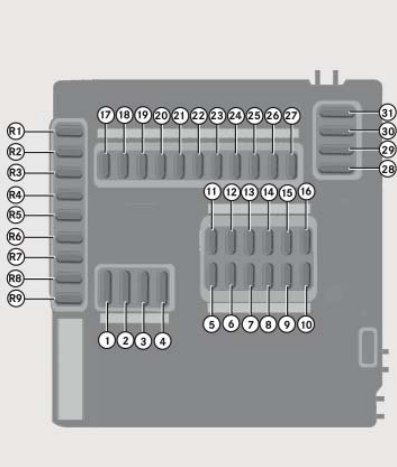

Smart Fortwo - wiring diagram - fuse box -  dashboard (front side)
Smart Fortwo – wiring diagram – fuse box – dashboard (front side)
1 – 31 Fuse
R1 – R9 backup fuse slots



Rear side

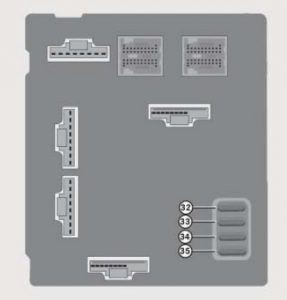

Smart Fortwo - wiring diagram - fuse box -  dashboard (rear side)
Smart Fortwo – wiring diagram – fuse box –
dashboard (rear side)
32 – 36 Fuse



Fuse Consumer Ampere rating [A]
1 Engine 25
2 Windshield wipers 25
3 Power window, left and right 20
4 Blower 25
5 Front fog lamps 10
6 Right parking and lamp, instrument lighting, terminal 58R 7,5
7 Parking and lamp, left 7,5
8 Engine 25
9 Engine 7,5
10 Engine 15
11 ESP® 15
12 Switches strip, on-board diagnosis socket, turn signal lamp, transmission control unit 10
13
14 Charge air cooler, air conditioning compressor 15
15 Audio, subwoofer, interior lighting 15
16 Fuel pump 15
17 Rear window wiper (coupé only) 15
18 ESP®, power steering, air bag, instrument panel 10
19 Motor control unit, onboard diagnosis socket, transmission control unit 7,5
20 Air conditioning system, exterior mirror adjustment, washer pump, audio, seat heating, gear selector lever control unit 10

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
