Skoda Superb (2015) – fuse box diagram

Skoda Superb (2015) – fuse box diagram

Year of production: 2015

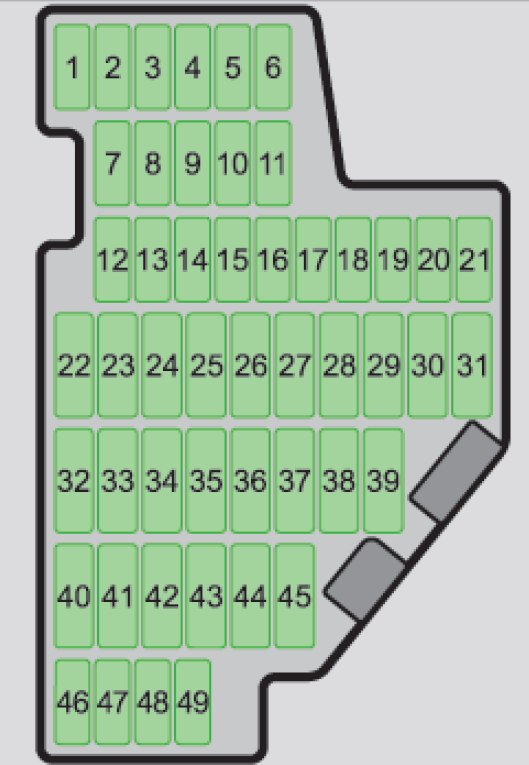

Fuse box in dash panel

Skoda Superb - fuse box diagram - dashboard
Skoda Superb – fuse box
diagram – dashboard
Number Power consumer
1 Diagnostic socket, engine control unit, fuel pump relay, fuel pump control unit
2 ABS control unit, ESC switch for tyre pressure warning, brake sensor, for START STOP coil of the starter relay only
3 Switch and control unit for airbag
4 WIV, parking light, dimming rear mirror, pressure sensor, telephone preinstallation
5 Control unit for headlamp beam adjustment and headlight swivel, control unit for parking aid, control unit for park assist
6 Instrument cluster, control unit for electromechanical power steering, Haldex, selector lever lock, power supply for data bus
7 Heated opening of the crankcase ventilation, air flow meter
8 Control unit for trailer detection
9 Relay for auxiliary heating and ventilation
10 Adaptive left main headlight
11 Adaptive right main headlight
12 Not assigned
13 Diagnostic socket, light switch, rain sensor, clock
14 Central locking system and bonnet lid
15 Central control unit – interior lights
16 The air conditioning system
17 Not assigned
18 Telephone
19 Instrument cluster, operating lever under the steering wheel, relay coil for heated windscreen
20 KESSY
21 KESSY ELV
22 Air blower for Climatronic
23 Front power window, central locking of the front doors
24 Selector lever lock
25 Rear window heater, relay for auxiliary heating and ventilation
26 Power socket in the boot
27 Fuel pump relay, control unit for fuel pump, injection valves
28 Electric boot lid
29 Haldex
30 Climate controlled front seats
31 DVD preinstallation
32 Front power window, central locking system of the rear doors
33 Electric sliding/tilting roof
34 Alarm, spare horn
35 Front and rear lighter
36 Headlight cleaning system
37 Heated front seats
38 Heated rear seats
39 Rear window wiper
40 Fan air-conditioning system, relay for auxiliary heating and ventilation
41 Not assigned
42 Light switch
43 Control unit for trailer detection
44 Control unit for trailer detection
45 Control unit for trailer detection
46 Switch for seat heating
47 Telephone preinstallation
48 Preparation for the aftermarket radio
49 Only for START-STOP: Central control unit, DC-DC converter, the engine control unit

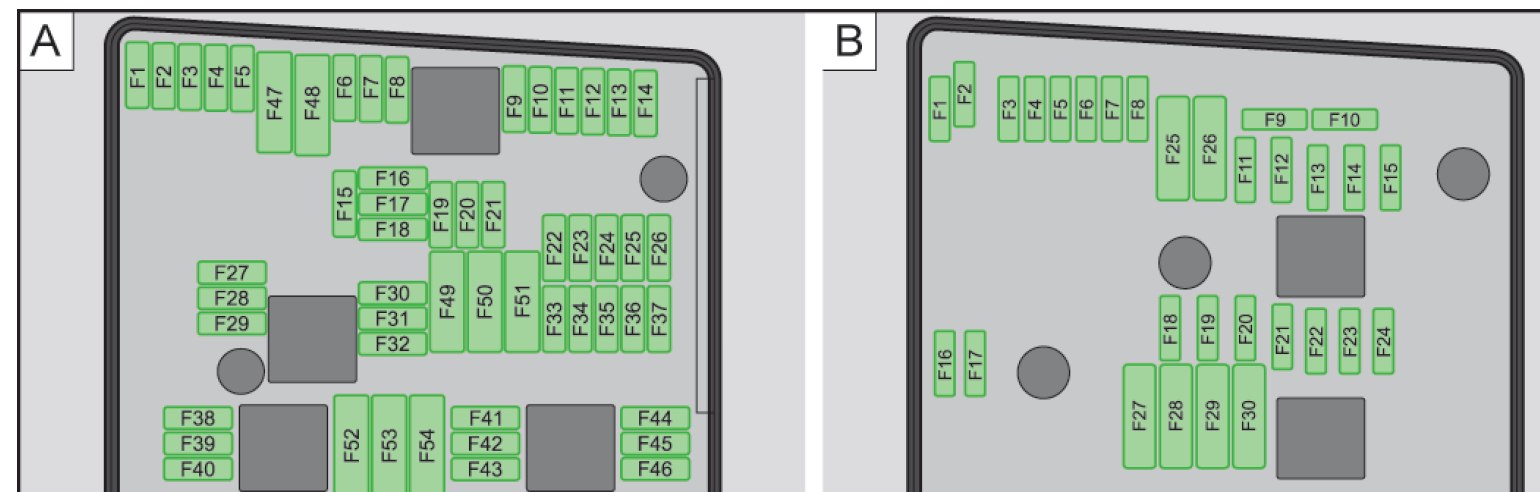

Fuse box in engine compartment

Skoda Superb - fuse box diagram - engine compartment
Skoda Superb – fuse box
diagram – engine compartment

Version A

Number Power consumer
F1 Front right main headlight, right rear light unit
F2 Valves for ABS
F3 Not assigned
F4 Not assigned
F5 Horn
F6 Not assigned
F7 Not assigned
F8 Not assigned
F9 Not assigned
F10 Not assigned
F11 Not assigned
F12 Not assigned
F13 Control unit for automatic gearbox
F14 Not assigned
F15 Coolant pump
F16 Not assigned
F17 Instrument cluster, windshield wiper lever and turn signal light lever
F18 Audio amplifier (sound system)
F19 Radio
F20 Not assigned
F21 Not assigned
F22 Not assigned
F23 Engine control unit
F24 Data bus control unit
F25 Not assigned
F26 Not assigned
F27 Fuel dosage valve
F28 Engine control unit
F29 Main relay
F30 Auxiliary heating and ventilation control unit
F31 Windscreen wipers
F32 Not assigned
F33 Not assigned
F34 Not assigned
F35 Not assigned
F36 Not assigned
F37 Not assigned
F38 Radiator fan, valves
F39 Clutch/brake pad sensor
F40 Lambda probe
F41 AKF valve
F42 Lambda probe
F43 Ignition
F44 Not assigned
F45 Not assigned
F46 Not assigned
F47 Front left main headlight, left rear light unit
F48 Pump for ABS
F49 Power supply for terminal 15 (ignition on)
F50 Not assigned
F51 Not assigned
F52 Power supply relay – terminal a)
F53 Accessory
F54 Not assigned
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.

Version B

Number Power consumer
F1 Not assigned
F2 Control unit for automatic gearbox DSG
F3 Measuring circuit
F4 Valves for ABS
F5 Control unit for automatic gearbox DSG
F6 Not assigned
F7 Power supply relay – terminal Xa)
F8 Radio
F9 Not assigned
F10 Engine control unit, Main relay
F11 Auxiliary heating and ventilation control unit
F12 Data bus control unit
F13 Engine control unit
F14 Ignition
F15 Lambda probe (petrol engine), glow plug system relay and fuel pump (diesel engine)
F16 Front right main headlight, right rear light unit
F17 Horn
F18 Audio amplifier (sound system)
F19 Windscreen wipers
F20 Valve for metering fuel, coolant pump, high pressure pump
F21 Lambda probe
F22 Clutch pedal switch
F23 Coil of the coolant pump relay valves, high-pressure pump
F24 Radiator fan
F25 Pump for ABS
F26 Front left main headlight, left tail light
F27 Control unit for glow plug system
F28 Windscreen heater
F29 Power to the internal fuse carrier
F30 Power supply for terminal 15 (ignition on)
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
