Skoda Rapid (2017) – fuse box diagram

Skoda Rapid (2017) – fuse box diagram

Year of production: 2017

Fuse box in dashboard

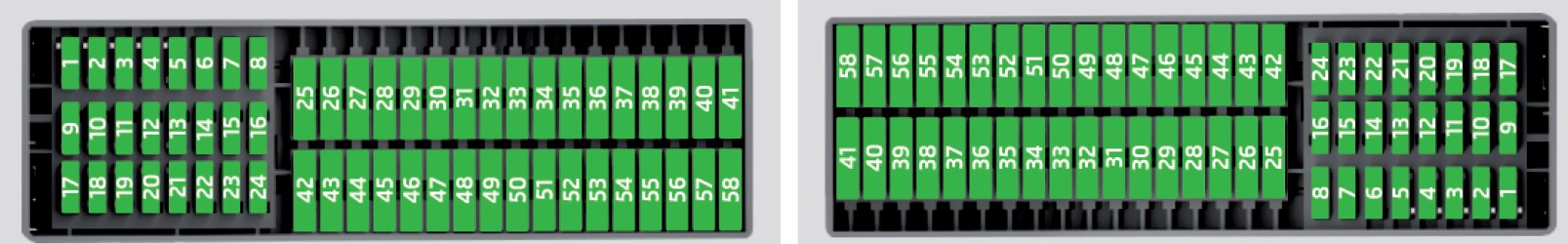

Skoda Rapid – fuse box diagram – dashboard panel (left-hand vehicle/right-hand vehicle)
Number Power consumer
1 Light – left
2 Central locking, front and rear window washer system (only with KESSY or heated windscreen)
3 Ignition
4 Light – right
5 Power windows – driver
6 Interior lighting
7 Horn
8 Towing hitch – left light
9 Operating lever beneath the steering wheel, engine control unit (only without KESSY), automatic gearbox (only without KESSY), automatic gearbox (only without KESSY), ESC (only without KESSY), towing equipment (only without KESSY), power steering (only without KESSY)
10 Power windows – rear left
11 Headlight cleaning system
12 Infotainment display
13 Multifunction unit for taxi vehicles
14 Operating lever under the steering wheel, light switch, ignition key removal lock (automatic gearbox), headlight flasher, SmartGate, rain sensor, rear view camera
15 Air conditioning, automatic gearbox, diagnostic connector, heated windscreen
16 Instrument cluster, emergency call
17 Anti-theft alarm, horn
18 Rear seat heating
19 Not assigned
20 Not assigned
21 Not assigned
22 Front and rear window washer system (without KESSY or without heated windscreen)
23 Heated front seats
24 Blower fan for air conditioning system, heating, air conditioning, heating
25 Not assigned
26 Heated front seats
27 Rear window wiper
28 Not assigned
29 Airbag
30 Electric windows, reverse light switches, air conditioning system, Park Assist, exterior mirror surface settings, power feed for centre button strip, power feed for side button strip, interior mirror
31 Fuel pump, radiator fan, cruise control, front and rear window washer, light switch
32 Diagnostic connector, beam range adjustment, control lever under the steering wheel, interior lighting, voltage stabiliser for taxi vehicles
33 Engine starting, clutch pedal switch
34 Heated windscreen washer jets
35 Not assigned
36 Not assigned
37 Radar
38 Not assigned
39 Electrical auxiliary heating system
40 Not assigned
41 Rear window heater
42 Power windows – front passenger
43 Towing hitch – contact in the socket
44 Cigarette lighter, 12-volt outlet in the interior, 12-volt power socket in the luggage compartment
45 Power windows – rear right
46 Front and rear window washer, operating lever under the steering wheel
47 Trailer device – electrical outlet
48 Towing hitch – right light
49 Fuel pump
50 Infotainment
51 Heating of the external mirror
53 Steering lock (KESSY)
54 ABS or ESC
55 Not assigned
56 Not assigned
57 Not assigned
58 Rear seat heating
59 Not assigned

Fuse box in engine compartment

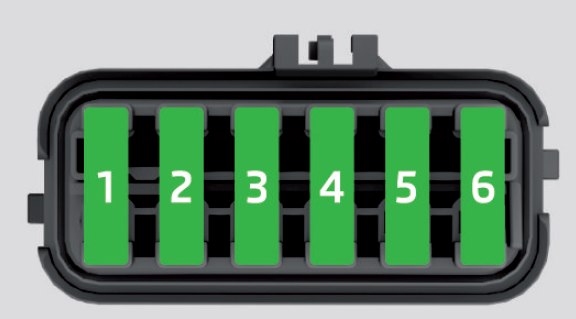

Skoda Rapid – fuse box diagram – engine compartment
Number Power consumer
1 Radiator fan
2 Glow plug system
3 ABS or ESC
4 Additional electrical heating, heated windscreen
5 Additional electrical heating, heated windscreen
6 Automatic gearbox
7 Engine control system
8 Windscreen wipers
9 Battery data module
10 ABS or ESC
11 Not assigned
12 Injectors, valve for fuel metering, control valve for fuel pressure
13 Brake pedal switch
14 Fuel pump, radiator fan, cooling pump, pump for intercooling
15 Engine control system, voltage stabiliser for taxi vehicles
16 Starter
17 Engine control system
18 Additional electric heater, valve for intake manifold, supercharger regulator, oil temperature, valve for activated charcoal filter, valve for oil pressure control
19 Lambda probe
20 Glow plug system, crankcase ventilation heater

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
