Oldsmobile Silhouette (1995) – fuse box diagram

Oldsmobile Silhouette (1995) – fuse box diagram

Year of production: 1995

Fuse panel (3.1L V6 ENGINE)

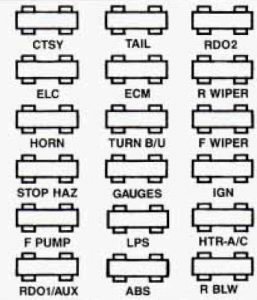

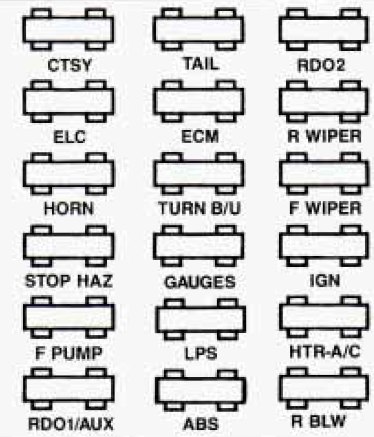

Oldsmobile Silhouette - fuse box diagram - engine 3.1L V6
Oldsmobile Silhouette –
fuse box diagram – engine 3.1L V6
Position Circuity
CTSY Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Power Sliding Delay Lock Modu
ELC Auto Level Control, Underhood Lamp
HORN Horns. Horn Relay, Safety Belt Buzzer
STOP HAZ Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop Lamps, Instrument Cluster Turn Indicator Lamps, Cruise Brake Switch
F PUMP Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
RDO1/AUX Radio, Front Cigar Lighter, Accessory Power Outlet
TAIL Front Park Lamps, Rear Taillamps, Front Sidemarker Lamps, License Plate Lamp, Radio, HeatNentlAC Control Head, Power Sliding Door
ECM Throttle Body Fuel Injection, Fuel Pump Relay, Elec. Vac. Reg. Valve, Elec. Control Module, Elec. Spark Control Module
TURN B/U Front/Redr Turn Lamps, Front Side Marker Lamps, Cluster Turn Telltale, Back-up Lamps, Fog Lamps
GAUGE Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
LPS Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch, Heat/Vent/AC Control Head, Door Switch Illumination, FrontIRear Ashtray Illumination Bulbs
ABS Anti-Lock Brake System
RD02 Radio
R/WIPER Rear WipedWasher Motors; Overhead Console Compass
F/WIPER Front Wiper/Washer Motor
IGN A/C Compressor, A/C Solenoid Box, Compressor Relay, Temp. Door Motor, Low Blower Relay; HeatNentlAC Control Head; Cruise Module; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Vehicle Speed Sensor Buffer and Generator Charge Discrete, Transaxle Converter Clutch Sw
HTR A/C Front/Rear Blower Motors, High Blower Relay
RR BLWR Rear Blower, Rear Heat/Vent/AC

Fuse panel (3800 v6 ENGINE)

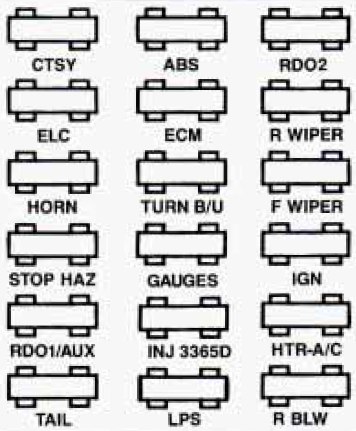

Oldsmobile Silhouette - fuse box diagram - engine 3800 V6
Oldsmobile Silhouette –
fuse box diagram – engine 3800 V6
Position Circuity
CTSY Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Power Sliding Delay Lock Module
ELC Auto Level Control, Underhood Lamp
HORN Horns. Horn Relay, Safety Belt Buzzer
STOP HAZ Front/Rear Turn Lamps, Front Sidemarker Lamps, Rear Stop Lamps, Instrument Cluster Turn Indicator Lamps
RDOl/AUX Radio, Front Cigar Lighter, Accessory Power Outlet
TAIL Front Park Lamps, Rear Tail Lamps, Front Side Marker Lamps, License Plate Lamp, Radio, Heat/Vent/AC Control Head, Power Sliding Door
ABS Anti-Lock Brake System
ECM Mass Air Flow Sensor, Electronic Control Module
TURN B/U Front/Rear Turn Lamps, Front Side Marker Lamps, Cluster Turn Telltale, Back-up Lamps, Fog Lamps
GAUGES Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
INJ 3365D Remote Location
LPS Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch, Heat/Vent/AC Control Head, Door Switch Illumination, Front/Rear Ashtray Illumination Bulbs
RDO2 Radio
R/WIPER Rear Wiper/Wdsher Motors; Overhead Console Compass
F/WIPER Front Wiper/Washer Motor
IGN A/C Solenoid Box, Temp. Door Motor, Low Blower Relay; HeatNentlAC Control Head; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Transaxle Converter Clutch Solenoid and Generator Charge Discrete
HTR A/C Front/Rear Blower Motors, High Blower Relay
RR BLWR Rear Blower, Rear Heat/Vent/AC

Circuit breaker/relay panel

Circuit breaker/relays are locatted in thr circuit breaker/relay panel. This is located behind the panel under the glove box, near the passengers’s door.

Oldsmobile Silhouette - fuse box diagram - circuit breaker/relay panel
Oldsmobile Silhouette –
fuse box diagram –
circuit breaker/relay panel
Position Circuity
1 Hazard Flasher
2 With 3800 V6 engine only: Canister Purge Solenoid, A/C Clutch Control Relay, Cruise Control
3 Not Used
4 Power Windows Circuit Breaker
5 Power SeatIPower Sliding Door Motor Circuit Breaker
6 Rear Defogger Circuit Breaker
7 Air Conditioning Blower Relay
8 Horn Relay
9 Chime Module
10 Defogger Timer Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
