Mercedes-Benz 600SEL (1993) – wiring diagrams – security/anti-theft

Mercedes-Benz 600SEL (1993) – wiring diagrams – security/anti-theft

Year of productions:  1993

Security/anti-theft

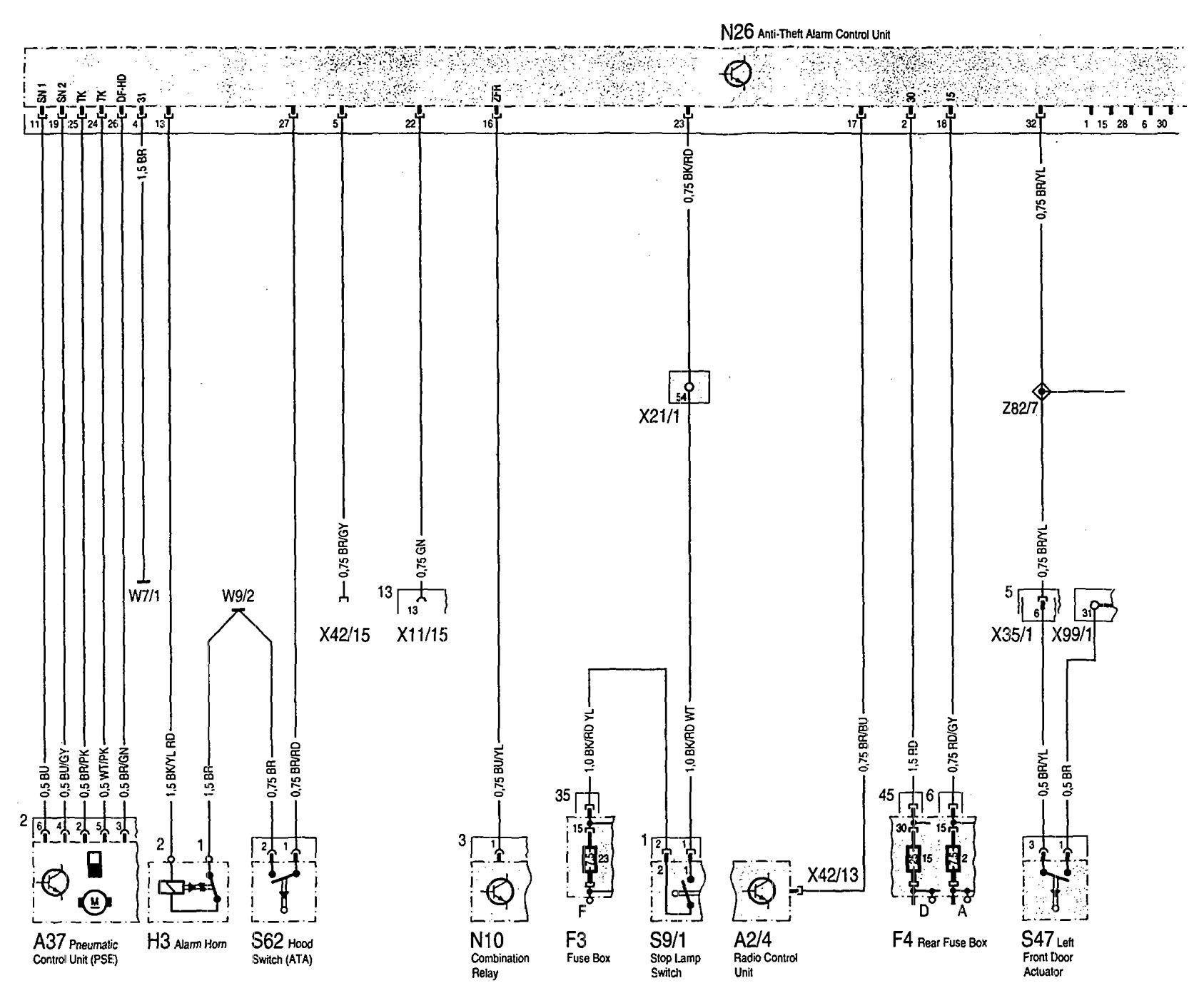

Mercedes-Benz 300SE - wiring diagram - secuirty/anti-theft (part 1)
Mercedes-Benz 600SEL – wiring diagram – secuirty/anti-theft (part 1)

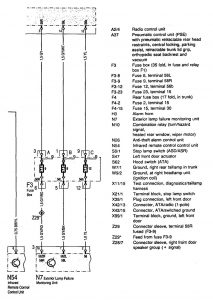

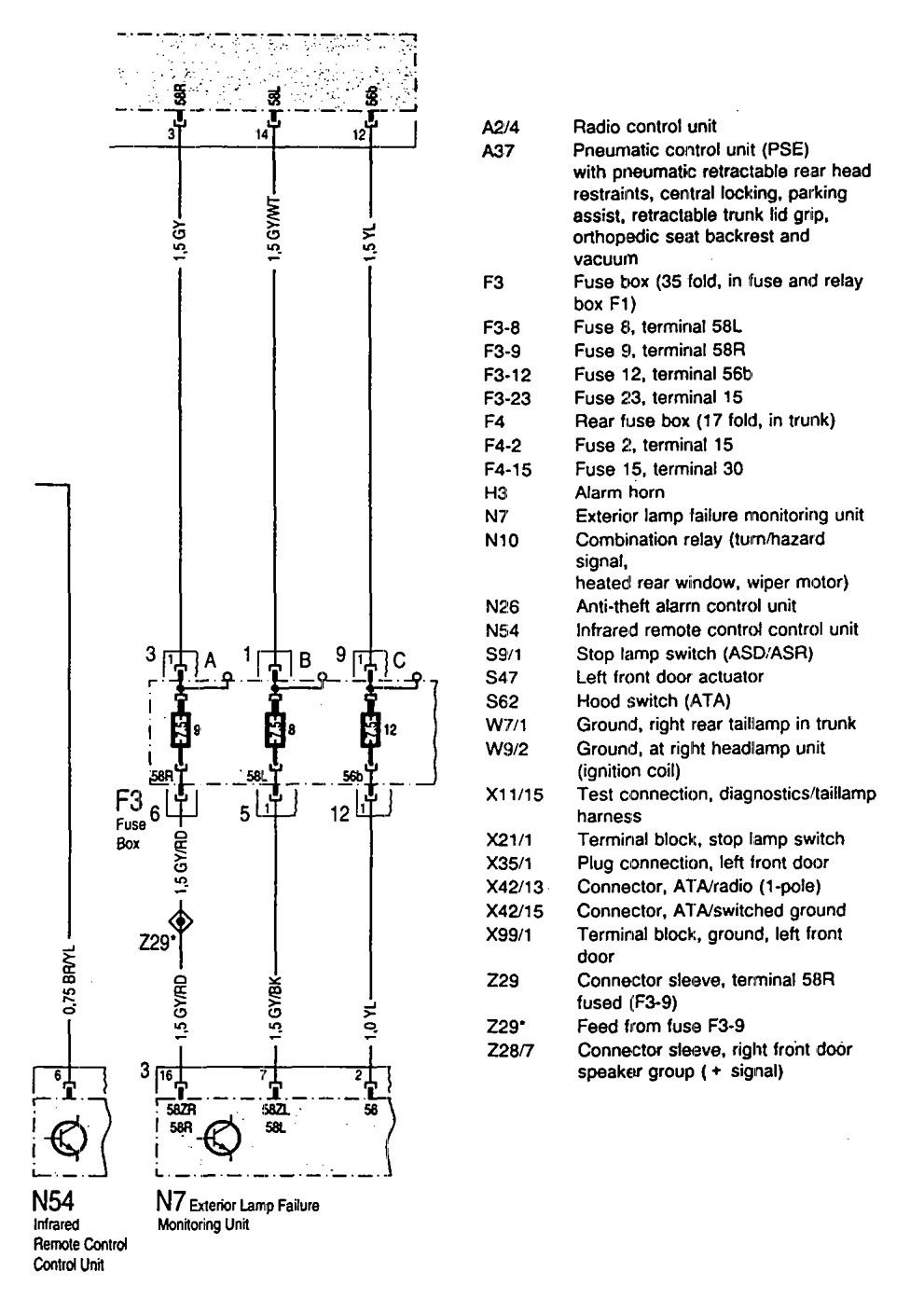

Mercedes-Benz 300SE - wiring diagram - secuirty/anti-theft (part 2)
Mercedes-Benz 600SEL – wiring diagram – secuirty/anti-theft (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
