Mercedes-Benz 300TE (1991) – wiring diagrams – security/anti-theft

Mercedes-Benz 300TE (1991) – wiring diagrams – security/anti-theft

Year of productions:  1991

Security/anti-theft

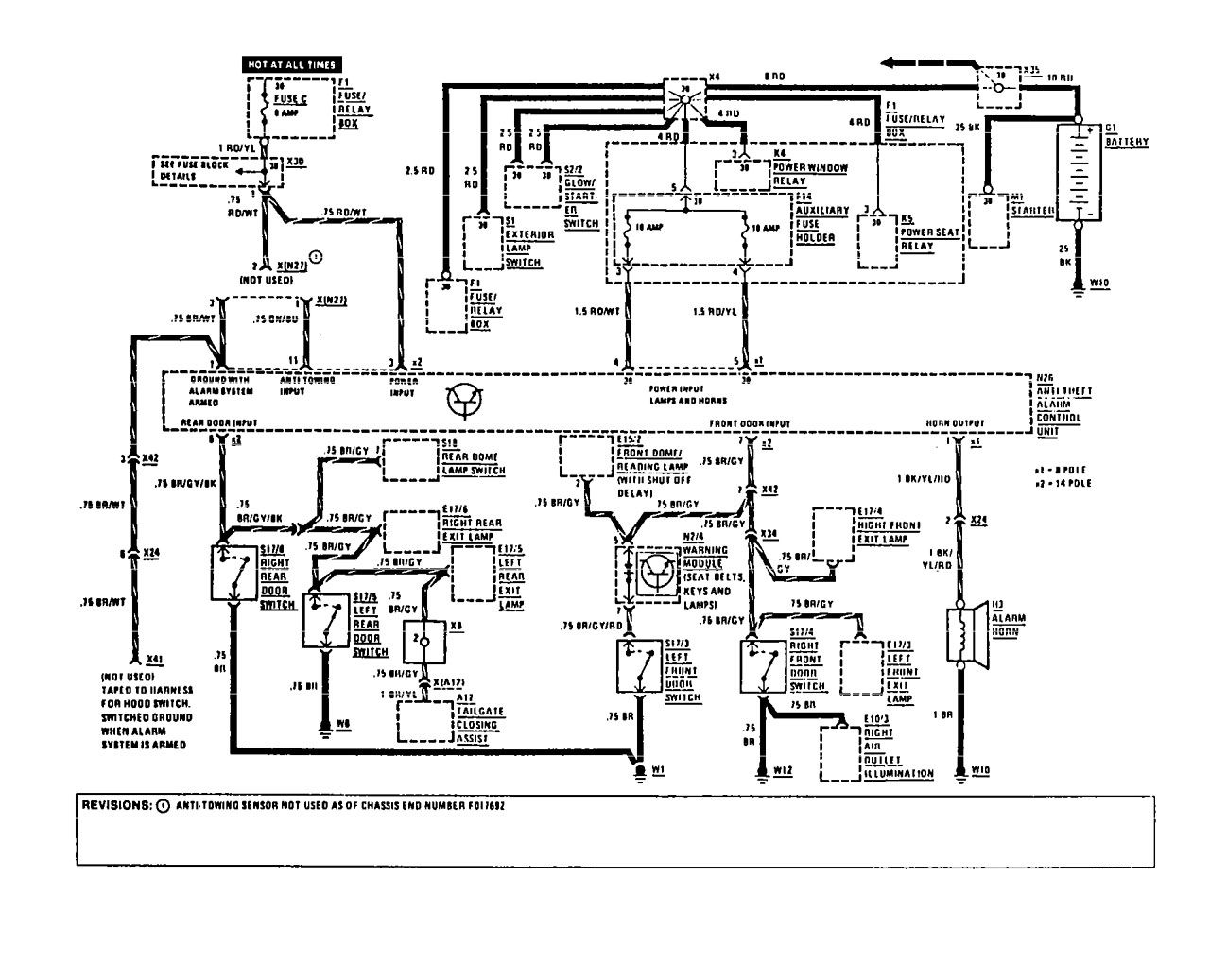

Mercedes-Benz 300TE - wiring diagram - security/anti-theft (part 1)
Mercedes-Benz 300TE – wiring diagram – security/anti-theft (part 1)

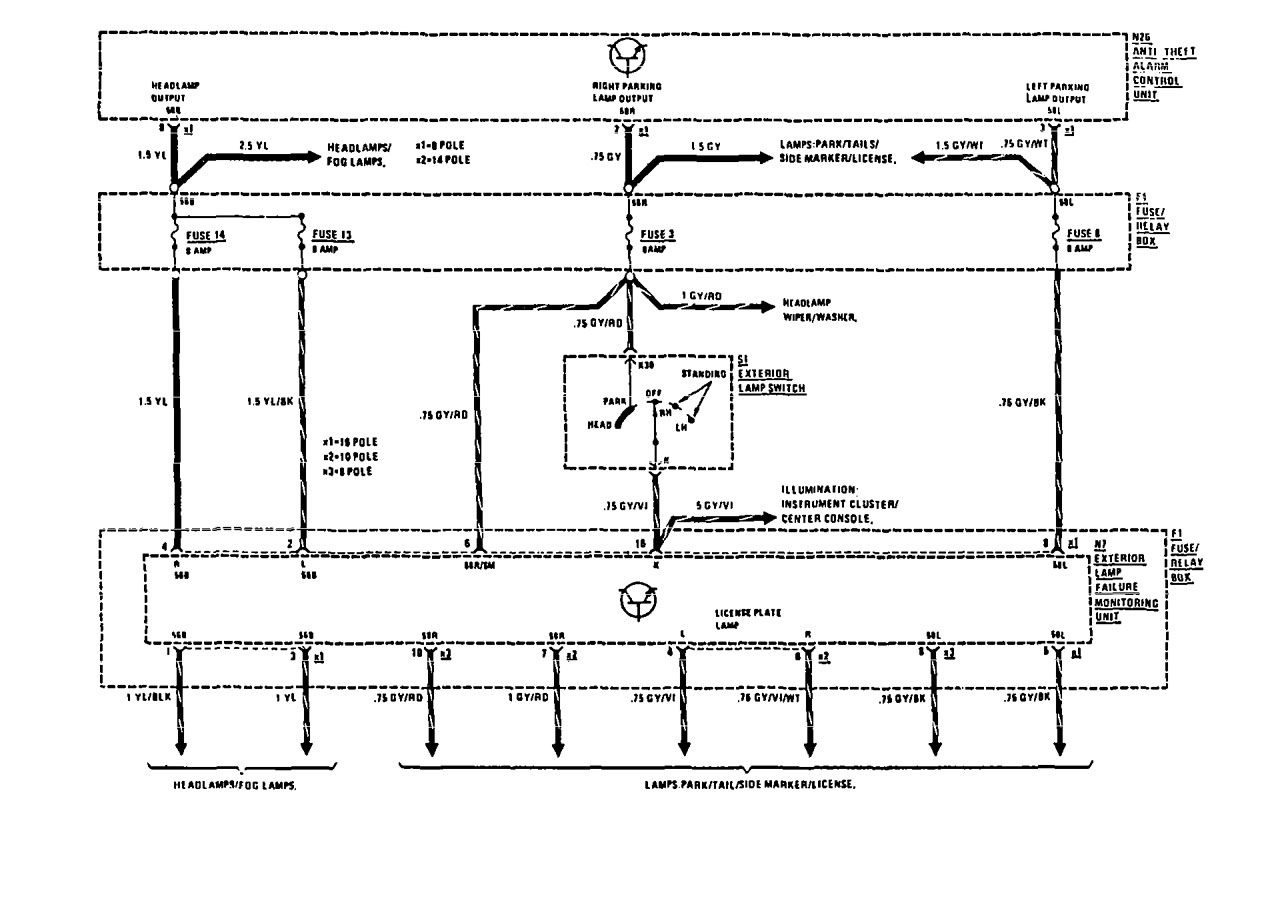

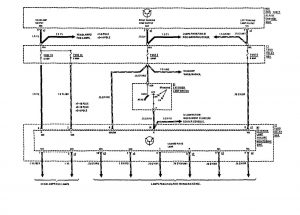

Mercedes-Benz 300TE - wiring diagram - security/anti-theft (part 2)
Mercedes-Benz 300TE – wiring diagram – security/anti-theft (part 2)

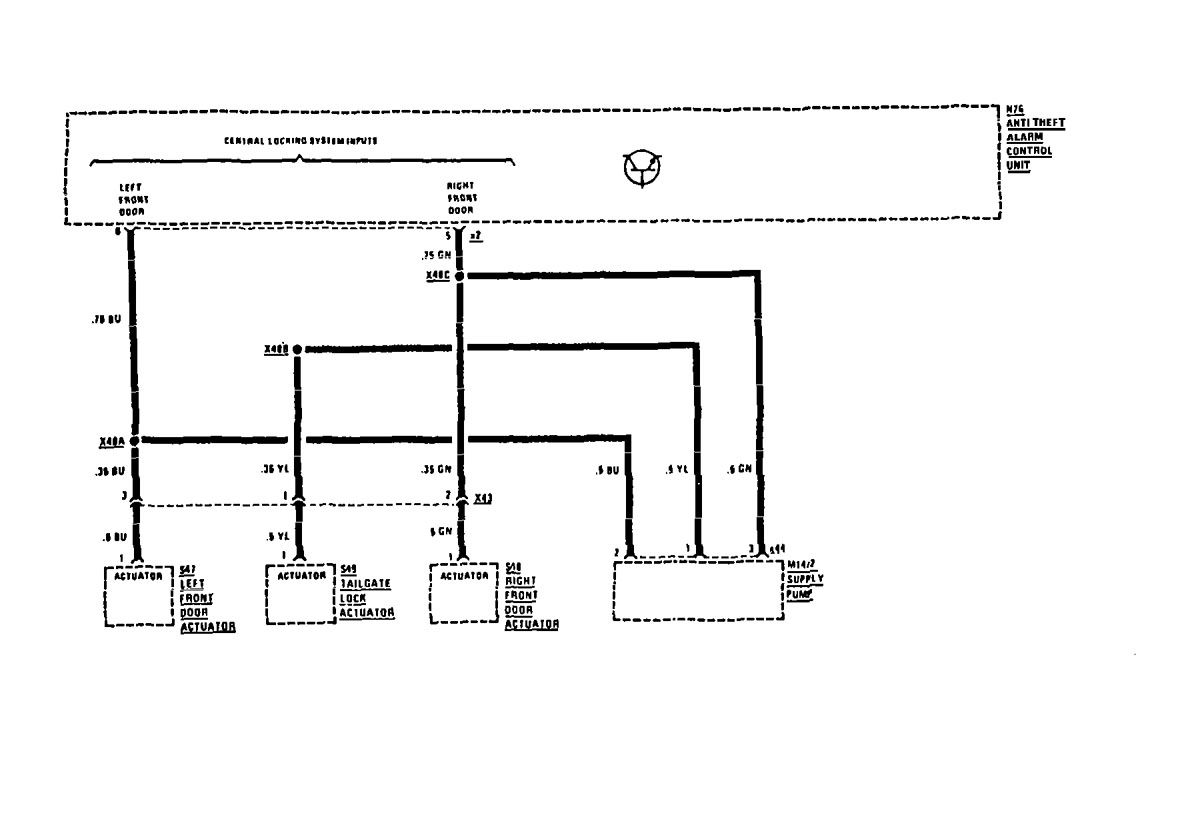

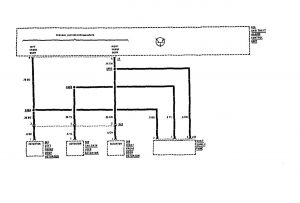

Mercedes-Benz 300TE - wiring diagram - security/anti-theft (part 3)
Mercedes-Benz 300TE – wiring diagram – security/anti-theft (part 3)

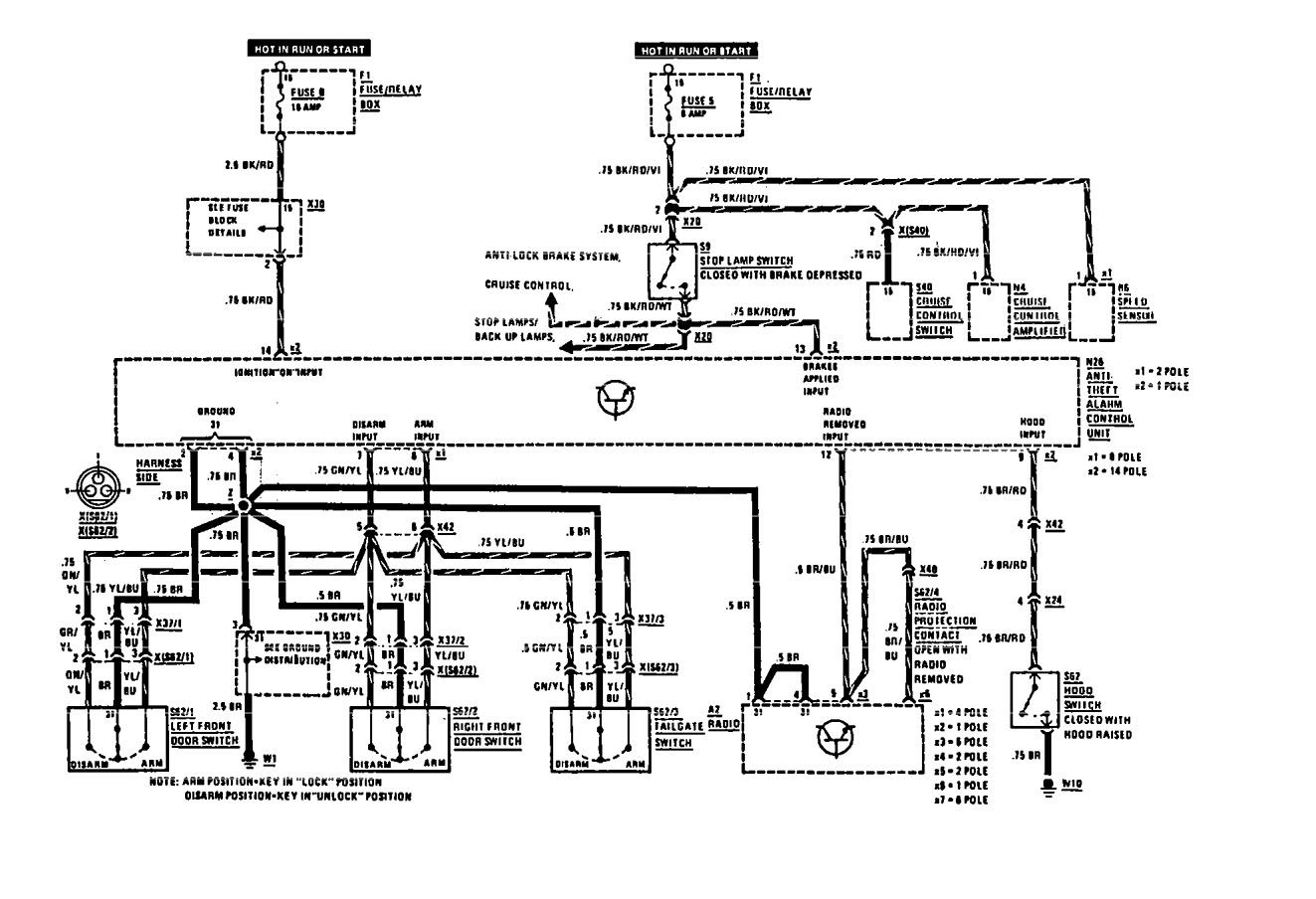

Mercedes-Benz 300TE - wiring diagram - security/anti-theft (part 4)
Mercedes-Benz 300TE – wiring diagram – security/anti-theft (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
