Mercedes-Benz 300TE (1990 – 1991) – wiring diagrams – wiper/washer

Mercedes-Benz 300TE (1990 – 1991) – wiring diagrams – wiper/washer

Year of productions:  1990, 1991

Wiper/washer

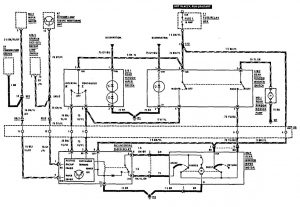

Version 1

Mercedes-Benz 300TE - wiring diagram - wiper /washer
Mercedes-Benz 300TE – wiring diagram – wiper /washer

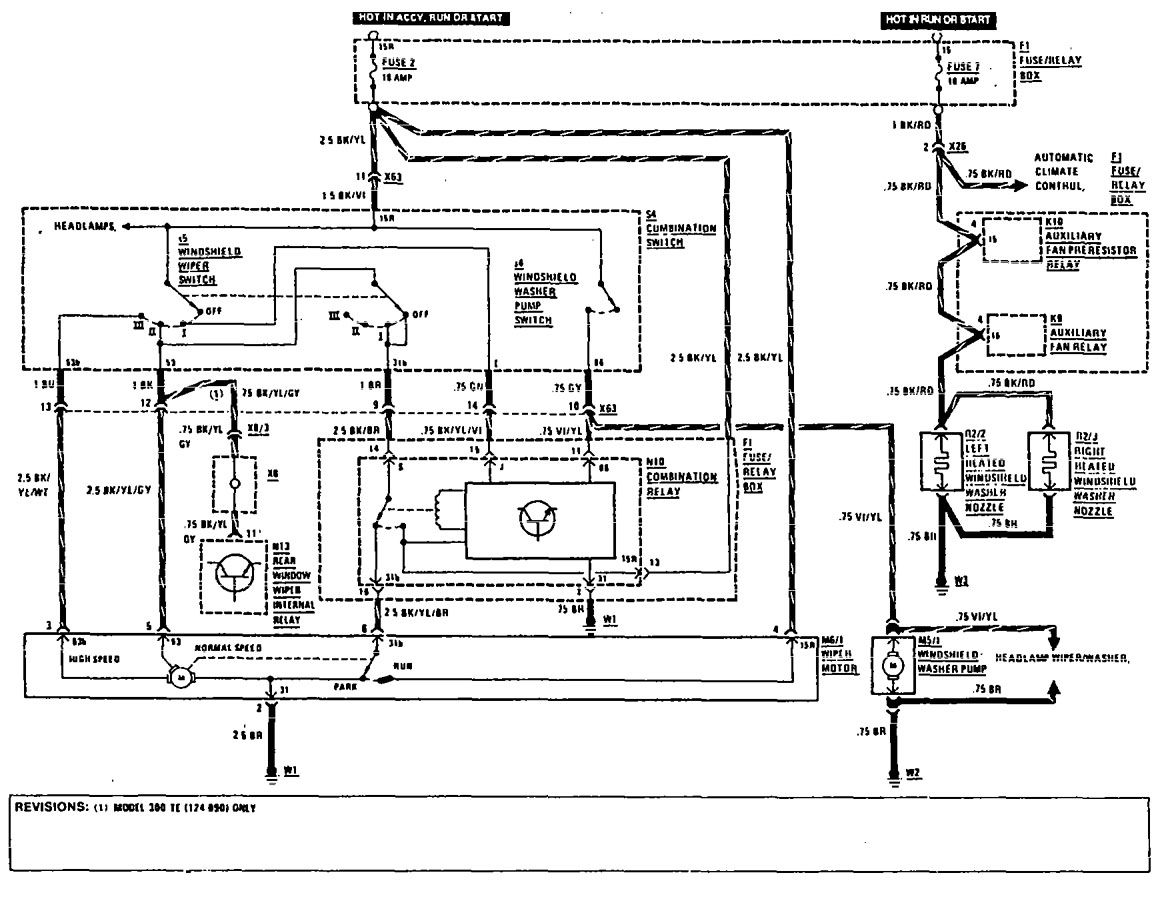

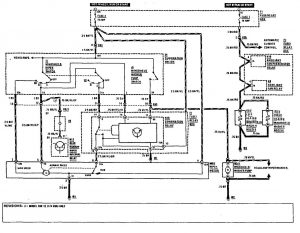

Version 2

Mercedes-Benz 300TE - wiring diagram - wiper /washer
Mercedes-Benz 300TE – wiring diagram – wiper /washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
