Mercedes-Benz 300SE (1990) – wiring diagrams – diagnostic socket

Mercedes-Benz 300SE (1990) – wiring diagrams – diagnostic socket

Year of productions:  1990

Diagnostic socket

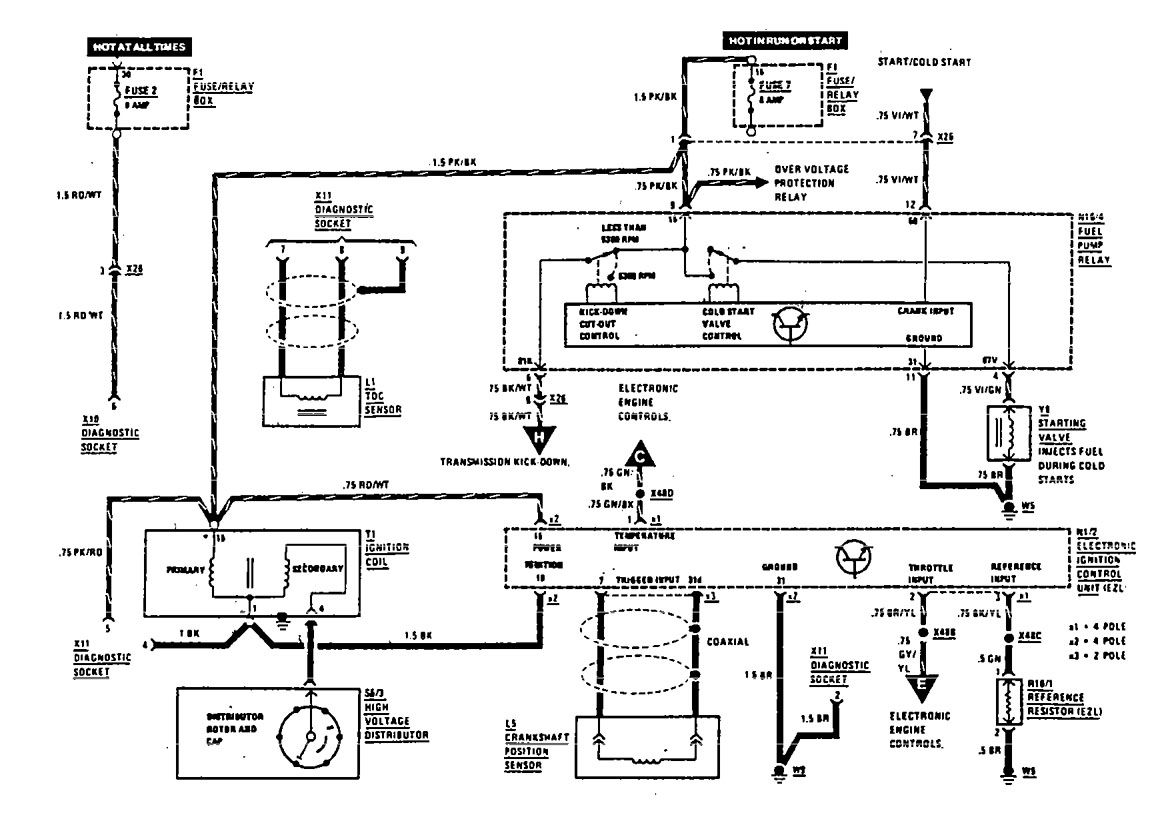

Mercedes-Benz 300SE - wiring diagram - diagnostic socket (part 1)
Mercedes-Benz 300SE – wiring diagram – diagnostic socket (part 1)

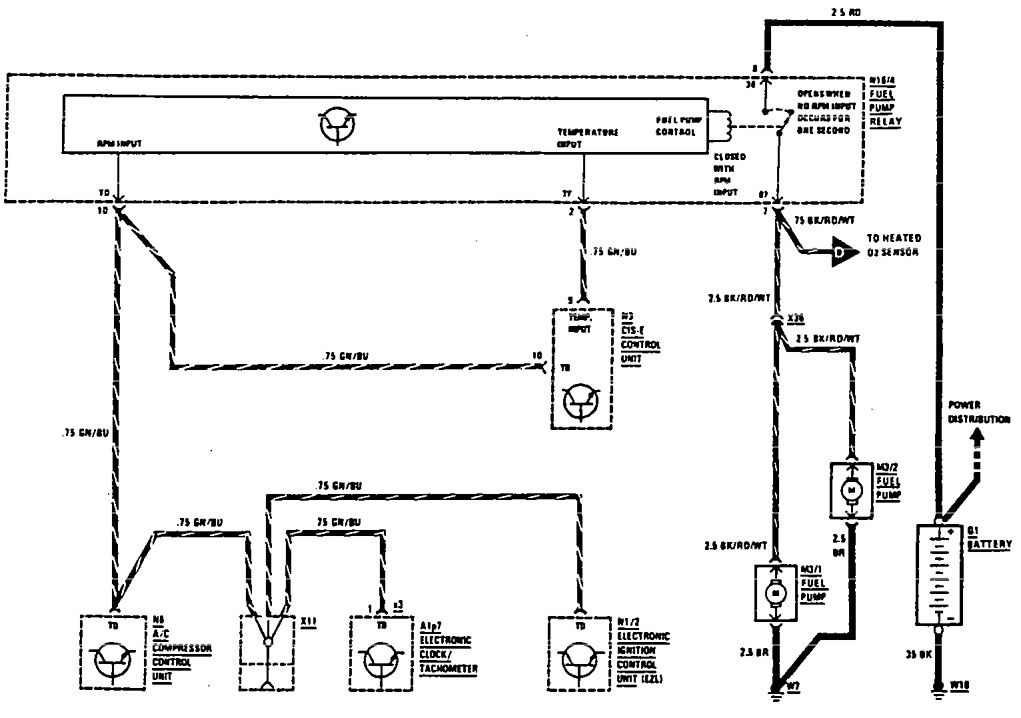

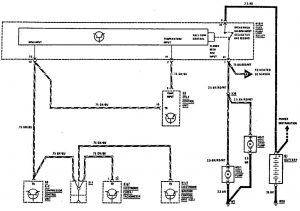

Mercedes-Benz 300SE - wiring diagram - diagnostic socket (part 2)
Mercedes-Benz 300SE – wiring diagram – diagnostic socket (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
