Audio

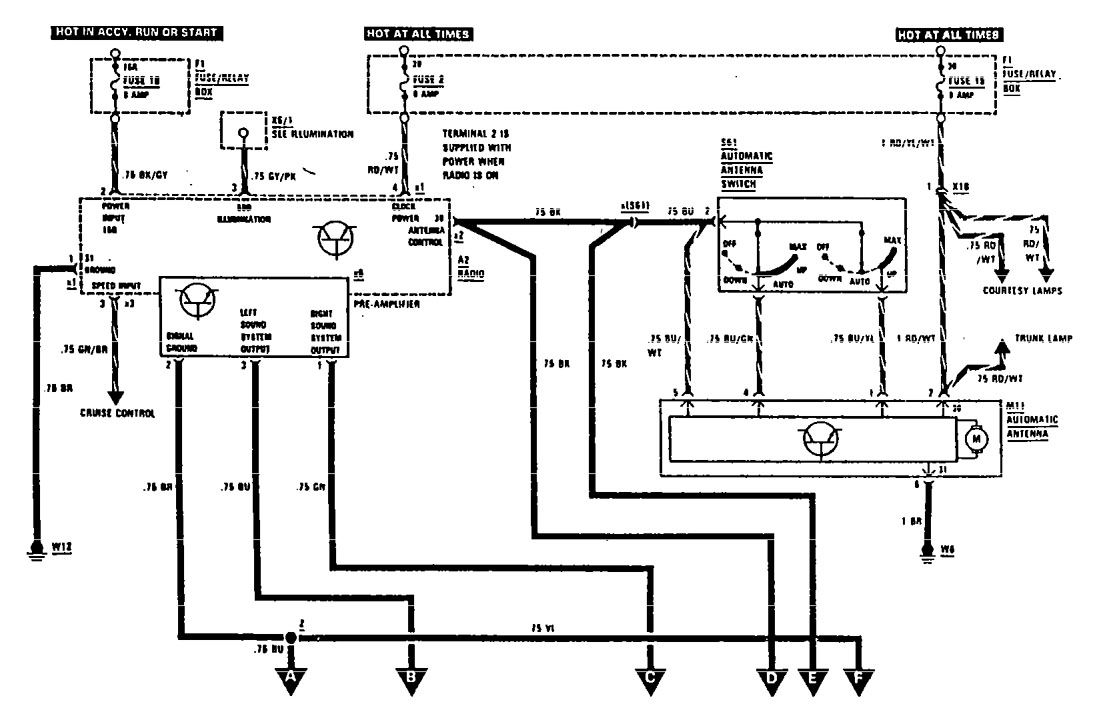

Mercedes-Benz 300SE - wiring diagram - audio (part 1)
Mercedes-Benz 300SE – wiring diagram – audio (part 1)

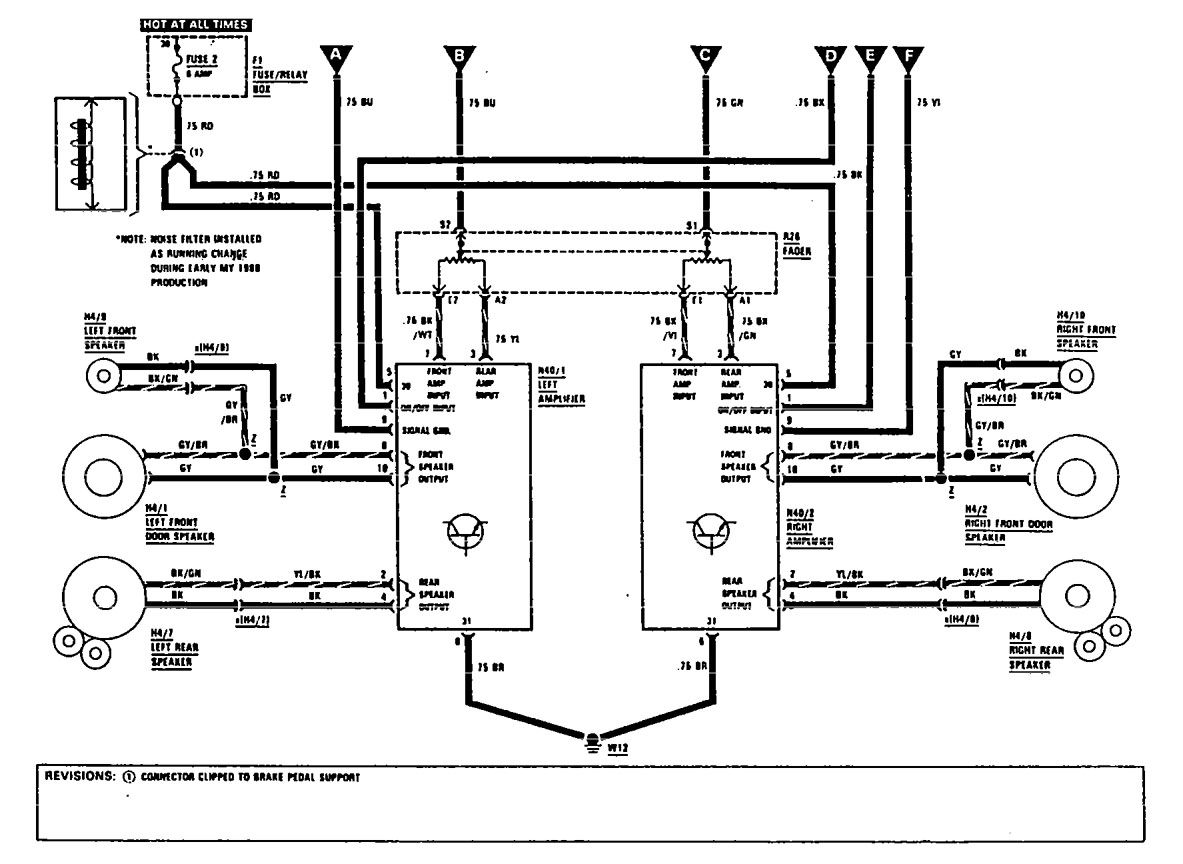

Mercedes-Benz 300SE - wiring diagram - audio (part 2)
Mercedes-Benz 300SE – wiring diagram – audio (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
