Mercedes-Benz 300E (1993) – wiring diagrams – wiper/washer

Mercedes-Benz 300E (1993) – wiring diagrams – wiper/washer

Year of productions:  1993

Wiper/washer

Version 1

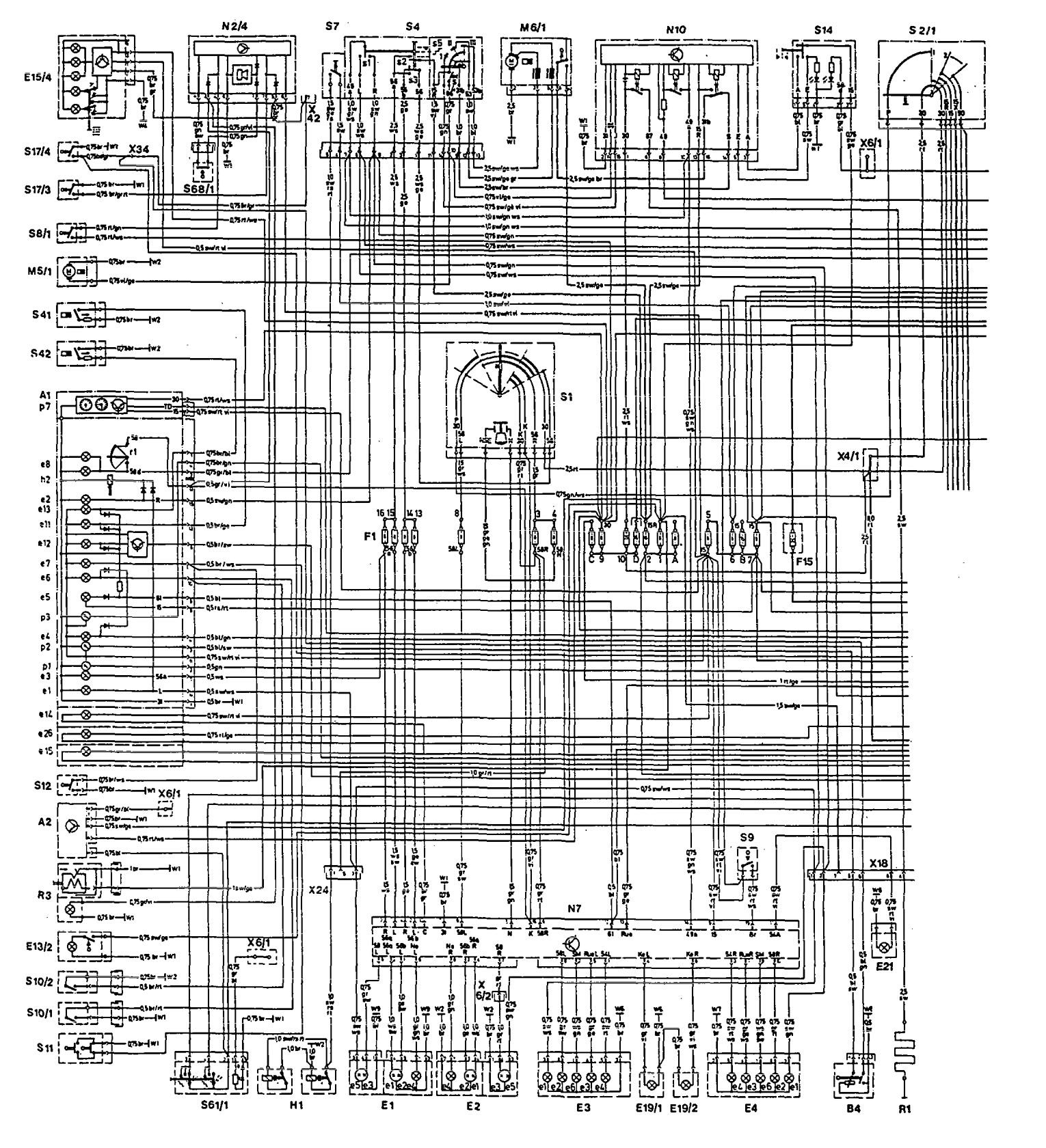

Mercedes-Benz 300E - wiring diagram - wiper/washer (part 1)
Mercedes-Benz 300E – wiring diagram – wiper/washer (part 1)

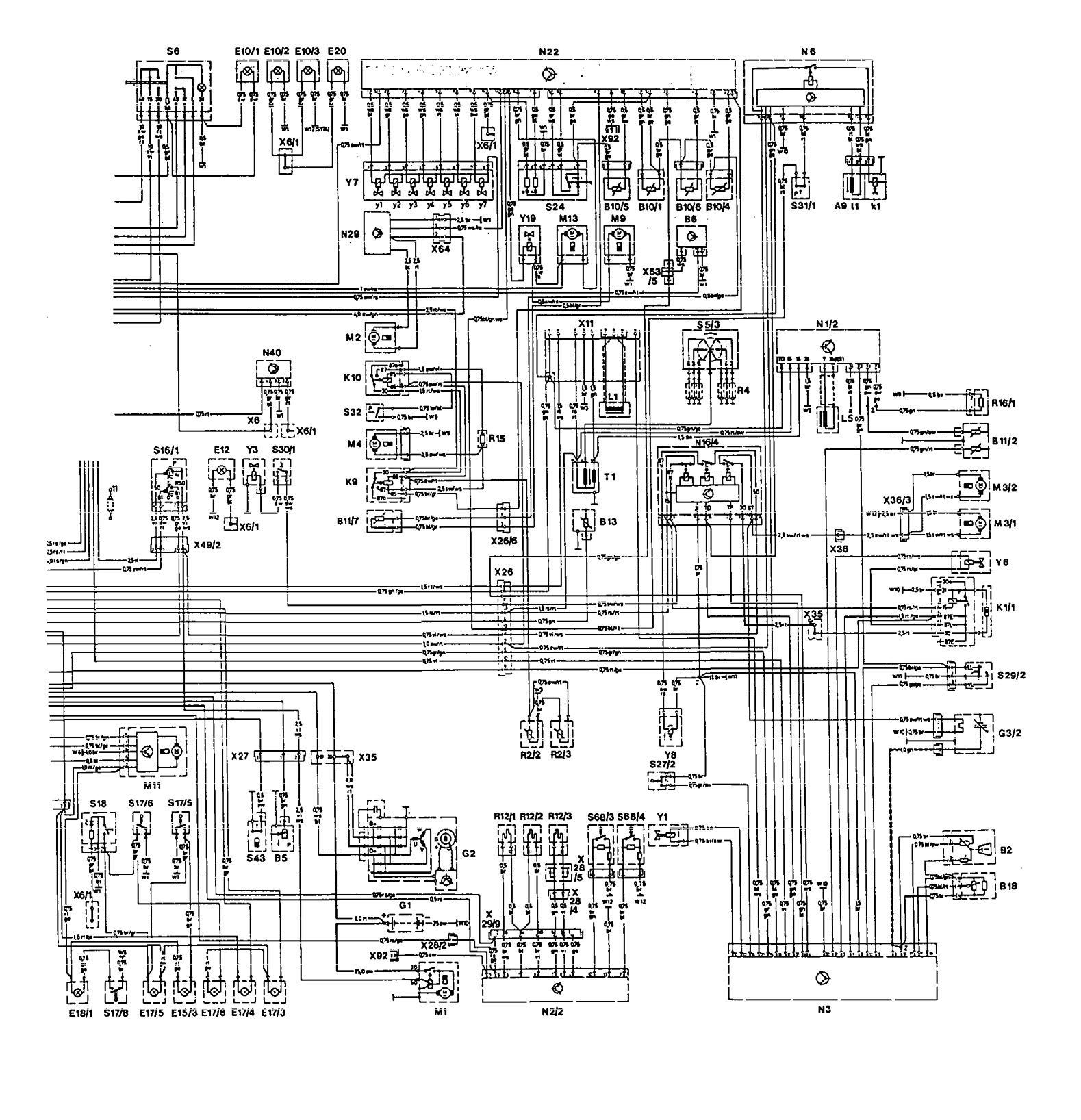

Mercedes-Benz 300E - wiring diagram - wiper/washer (part 2)
Mercedes-Benz 300E – wiring diagram – wiper/washer (part 2)
Mercedes-Benz 300E - wiring diagram - wiper/washer (part 3)
Mercedes-Benz 300E – wiring diagram – wiper/washer (part 3)

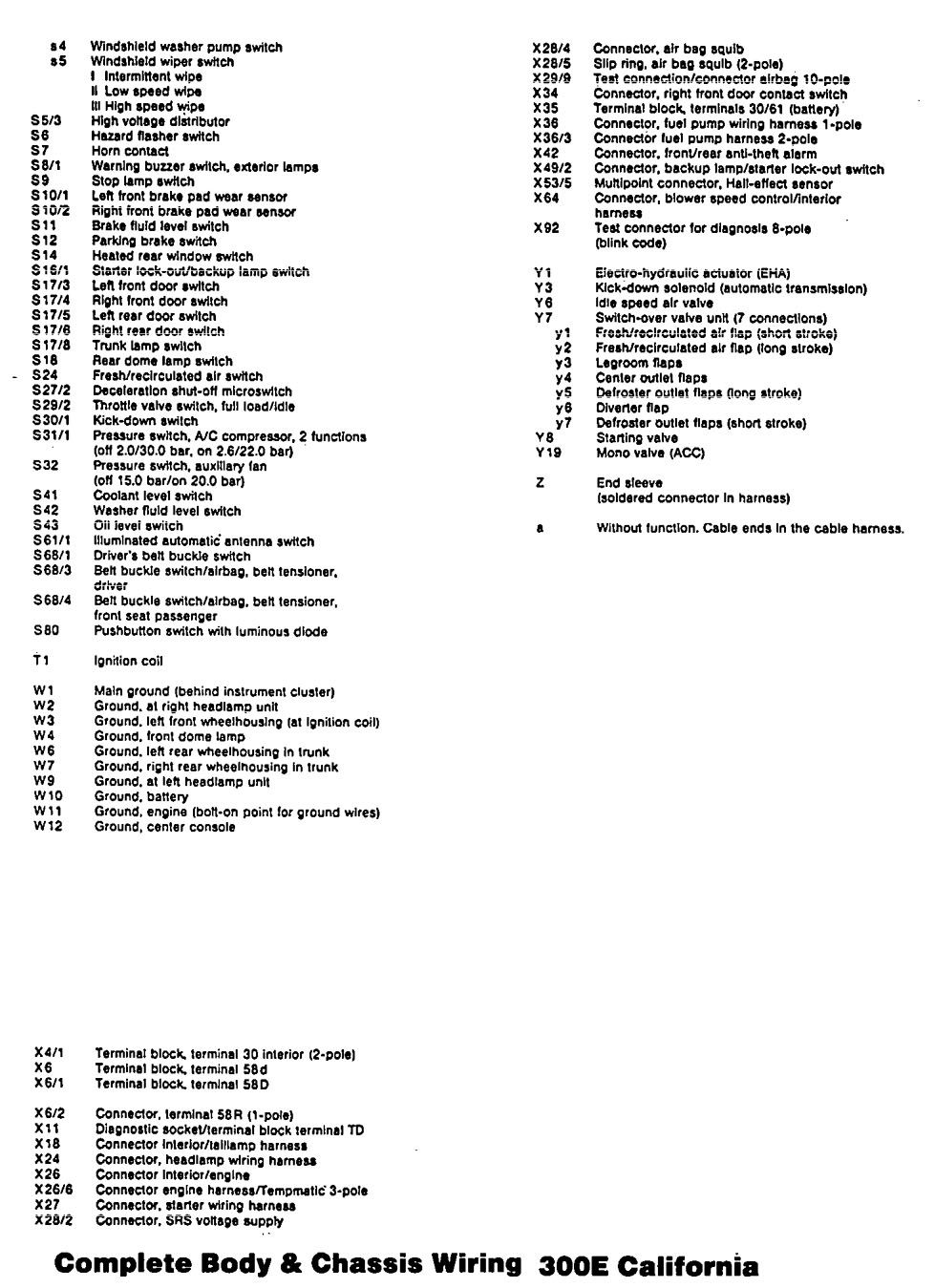

Version 2

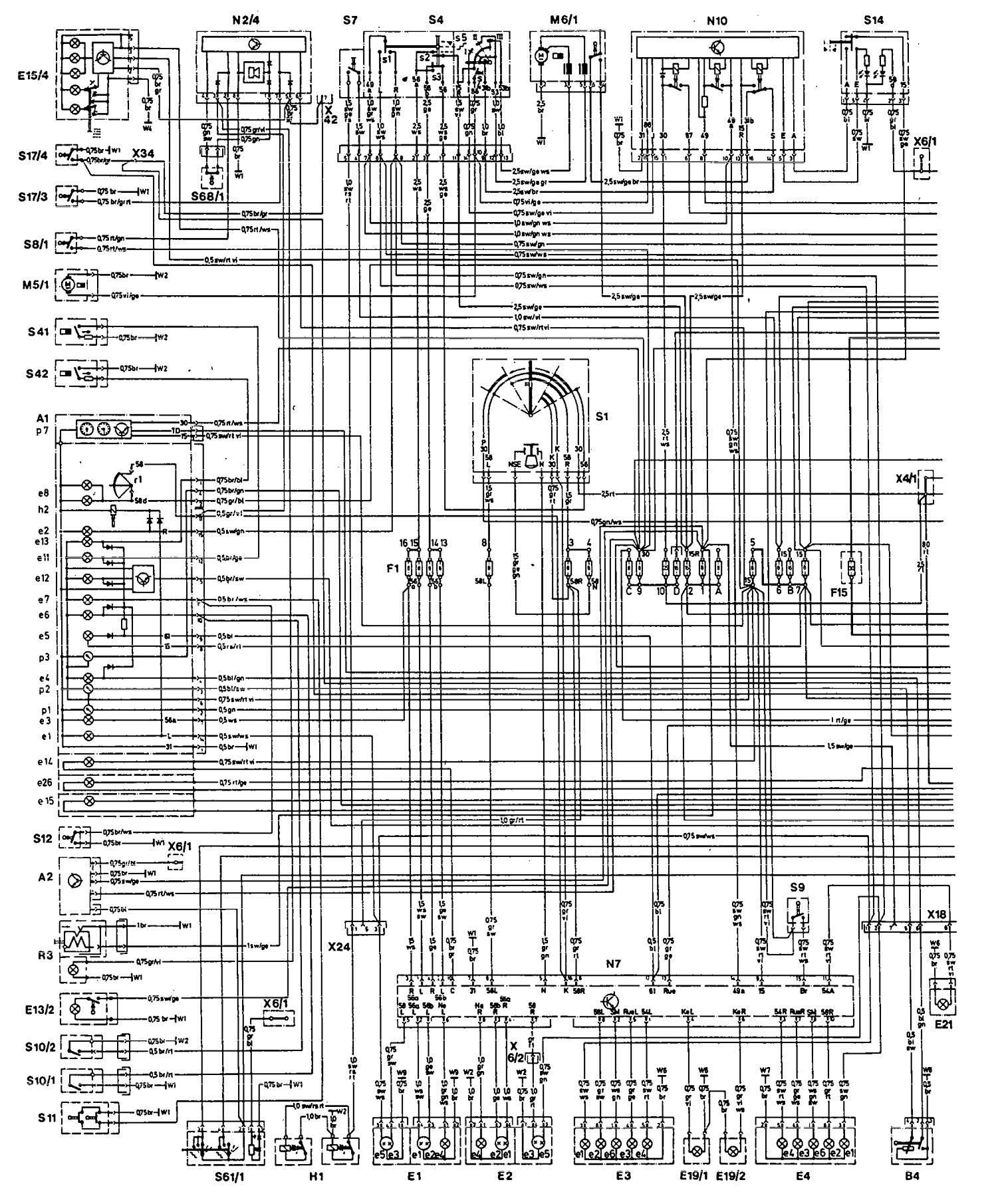

Mercedes-Benz 300E - wiring diagram - wiper/washer (part 1)
Mercedes-Benz 300E – wiring diagram – wiper/washer (part 1)

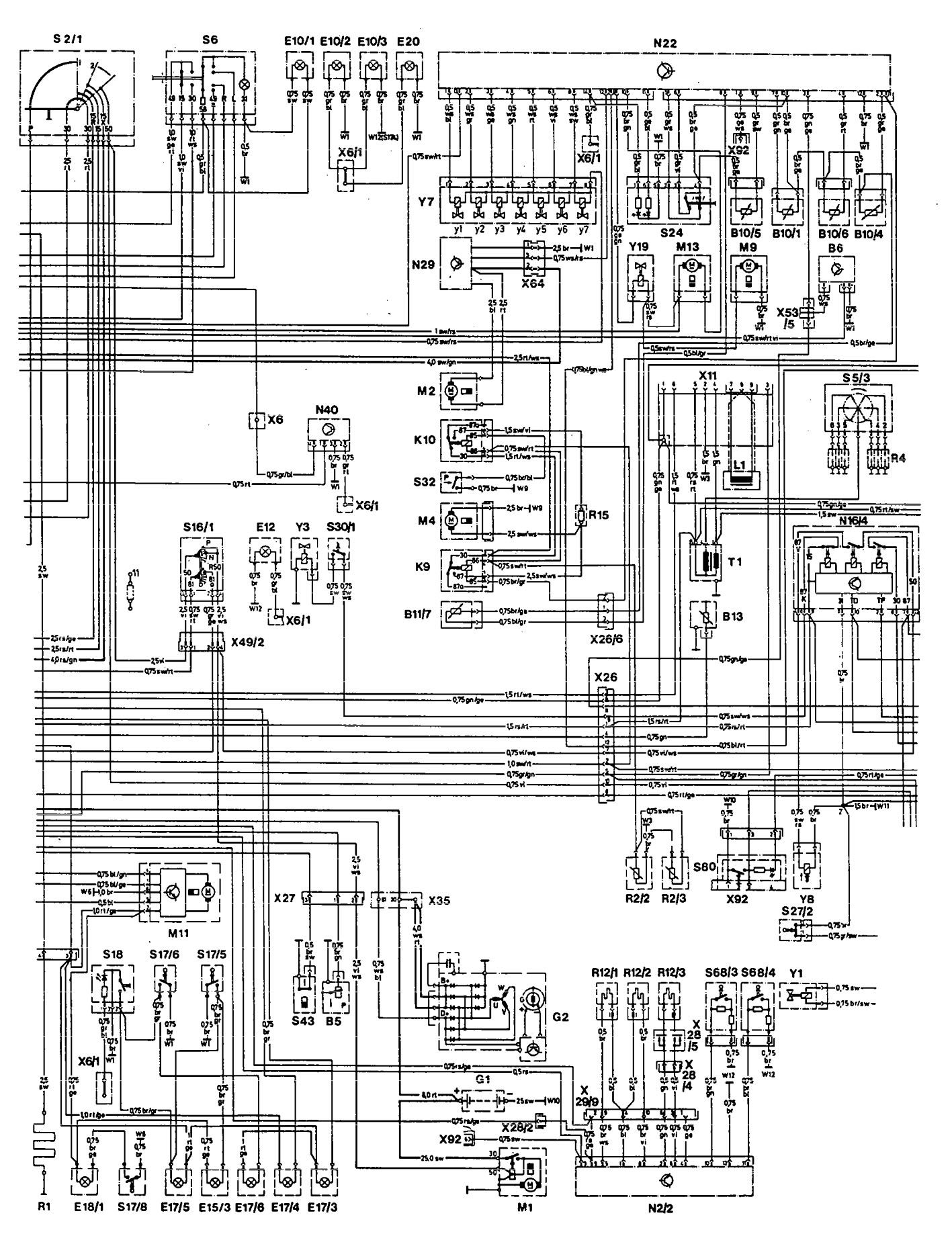

Mercedes-Benz 300E - wiring diagram - wiper/washer (part 2)
Mercedes-Benz 300E – wiring diagram – wiper/washer (part 2)

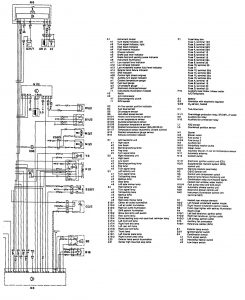

Mercedes-Benz 300E - wiring diagram - wiper/washer (part 3)
Mercedes-Benz 300E – wiring diagram – wiper/washer (part 3)
Mercedes-Benz 300E - wiring diagram - wiper/washer (part 4)
Mercedes-Benz 300E – wiring diagram – wiper/washer (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
