Mercedes-Benz 300CE (1992 – 1993) – wiring diagrams – starting

Mercedes-Benz 300CE (1992 – 1993) – wiring diagrams – starting

Year of productions:  1992, 1993

Starting

Version 1

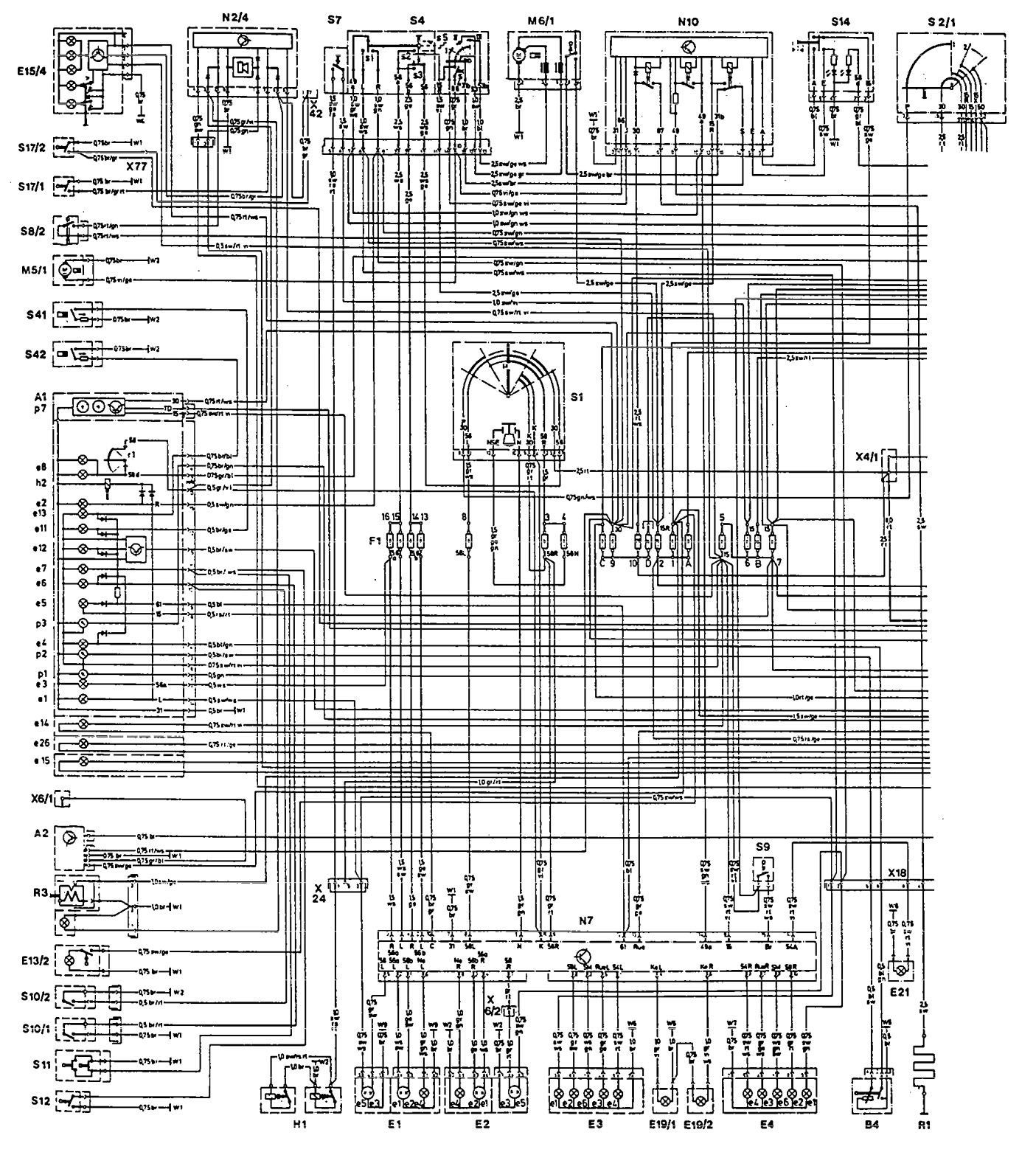

Mercedes-Benz 300CE - wiring diagram - starting (part 1)
Mercedes-Benz 300CE – wiring diagram – starting (part 1)

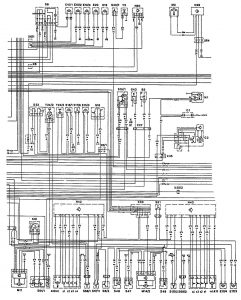

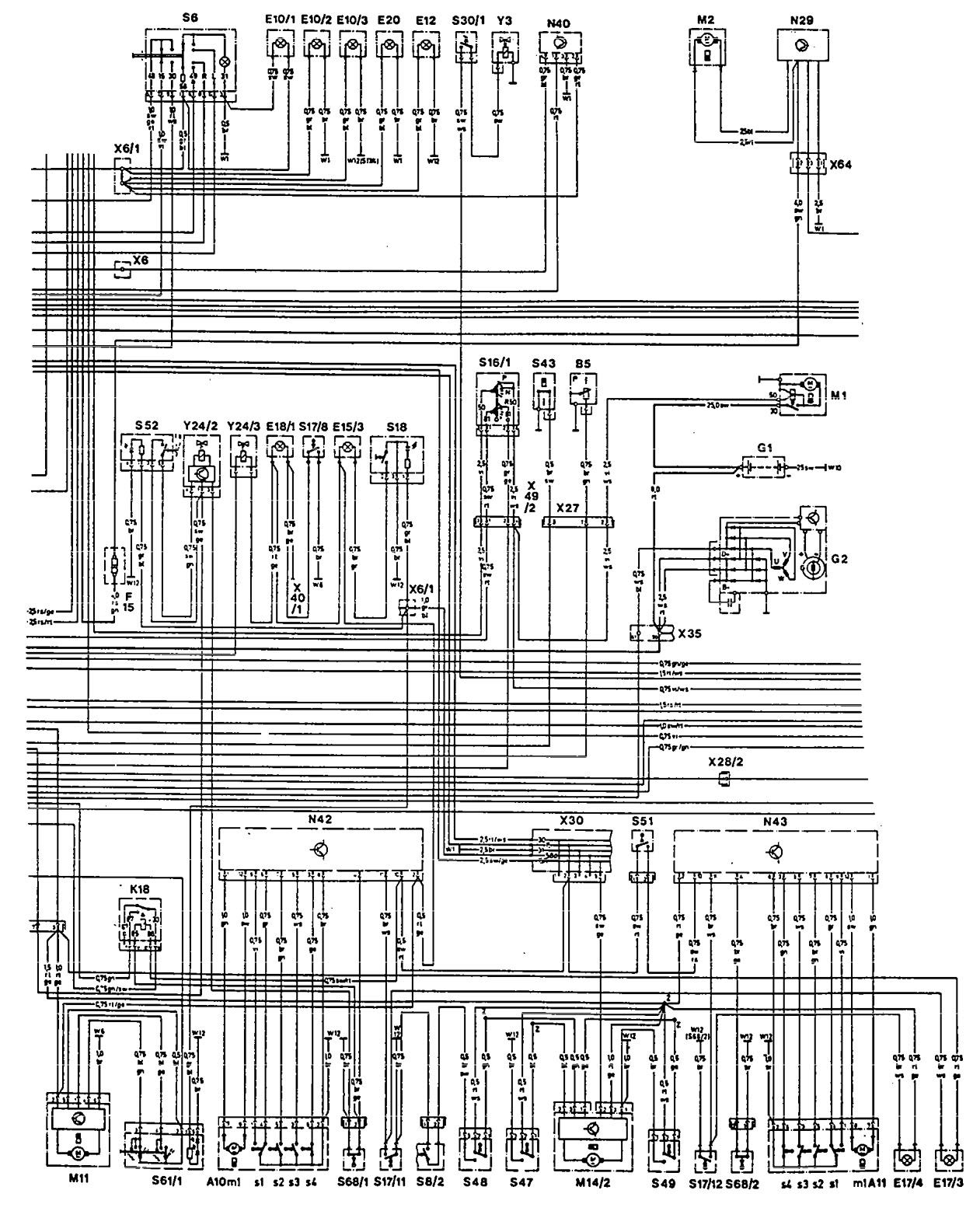

Mercedes-Benz 300CE - wiring diagram - starting (part 2)
Mercedes-Benz 300CE – wiring diagram – starting (part 2)

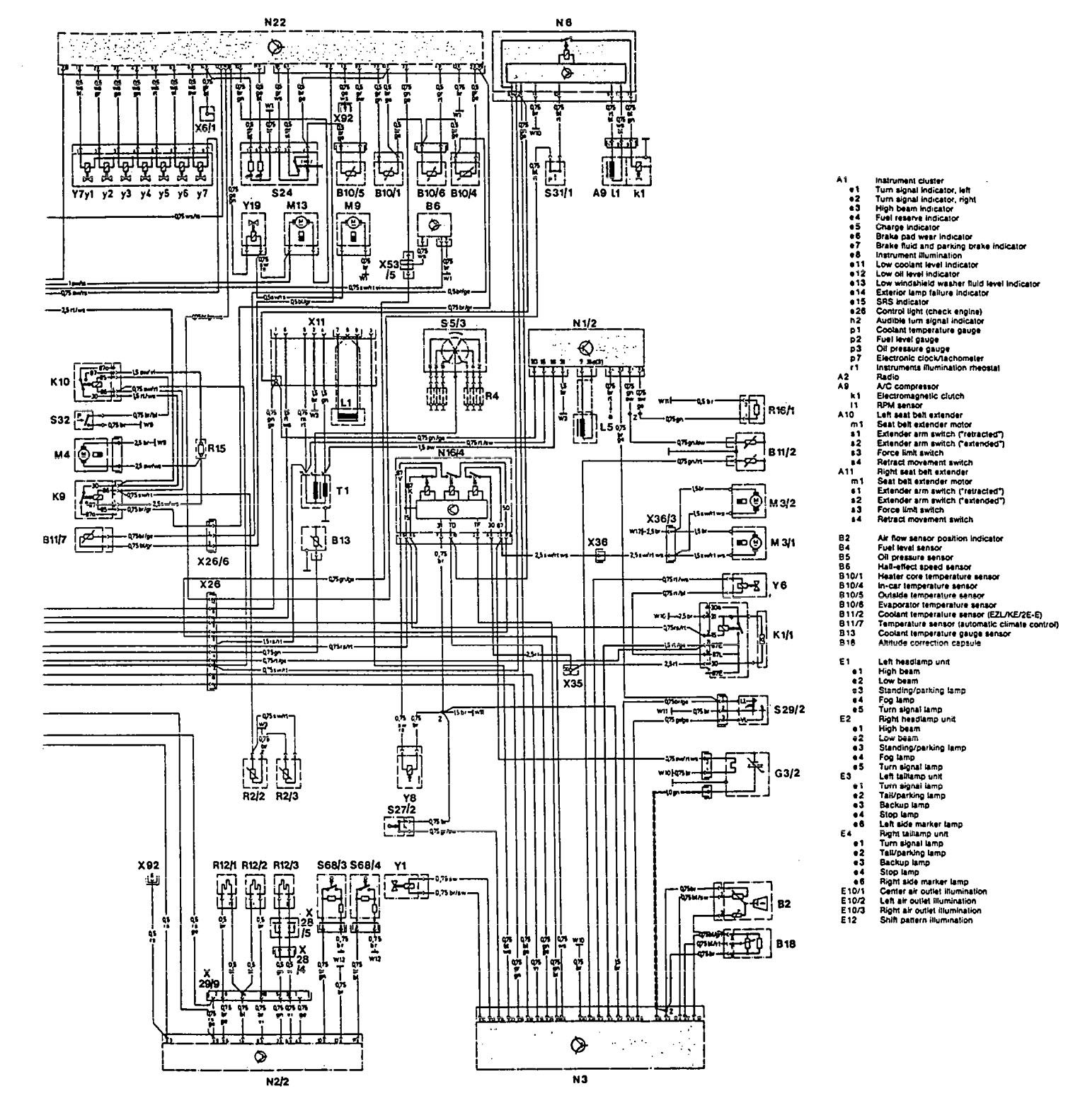

Mercedes-Benz 300CE - wiring diagram - starting (part 3)
Mercedes-Benz 300CE – wiring diagram – starting (part 3)

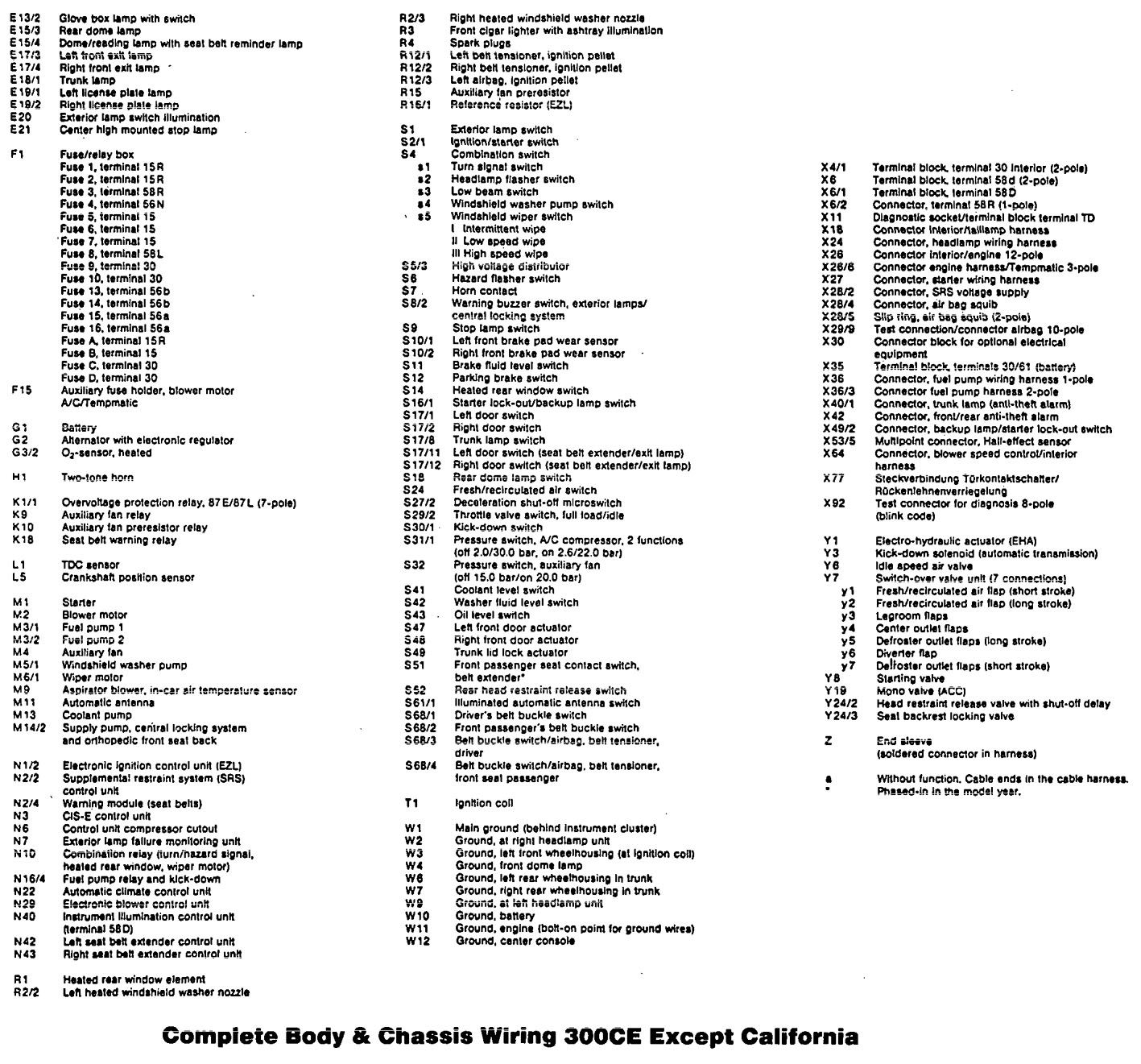

Mercedes-Benz 300CE - wiring diagram - starting (part 4)
Mercedes-Benz 300CE – wiring diagram – starting (part 4)

Version 2

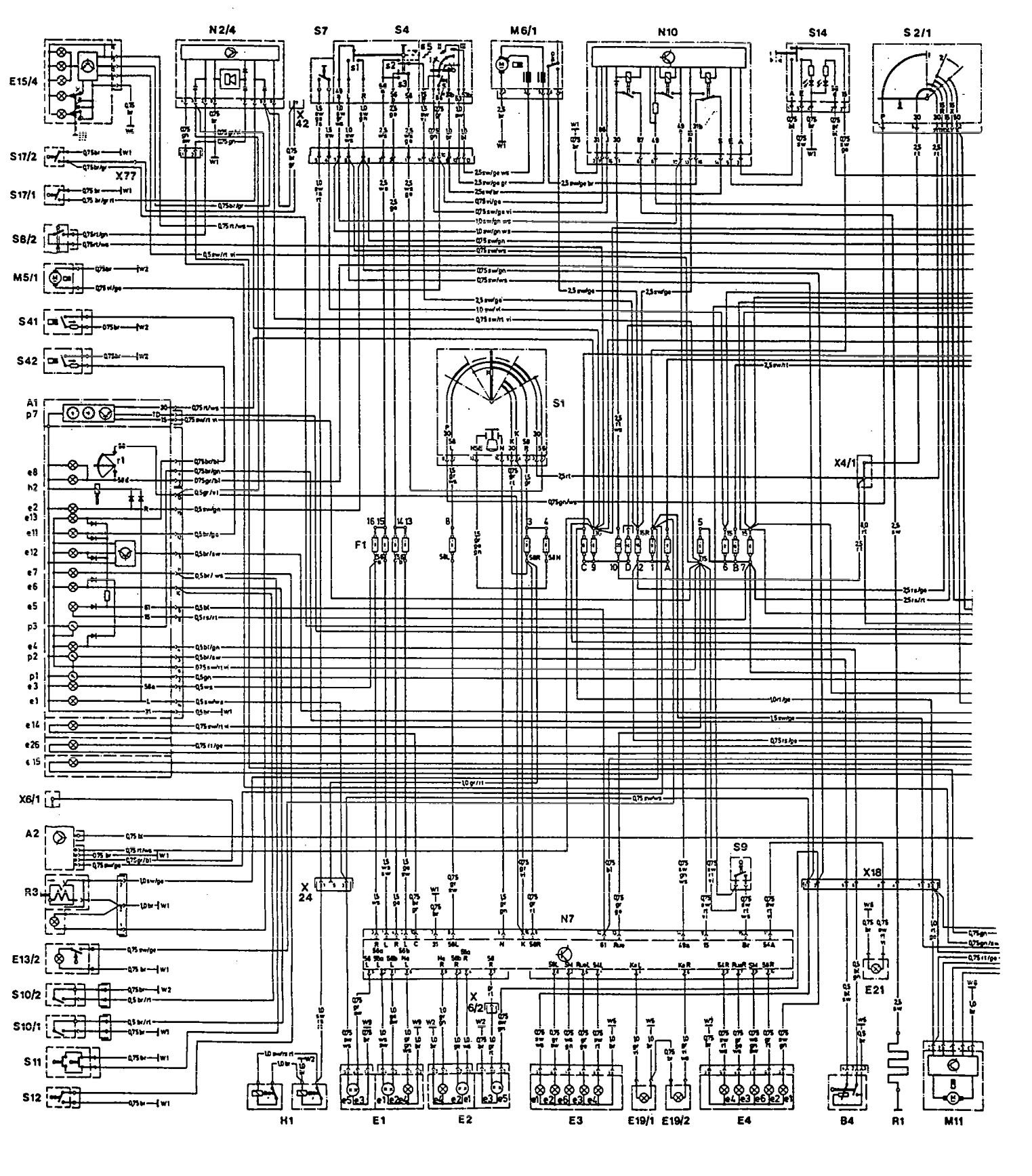

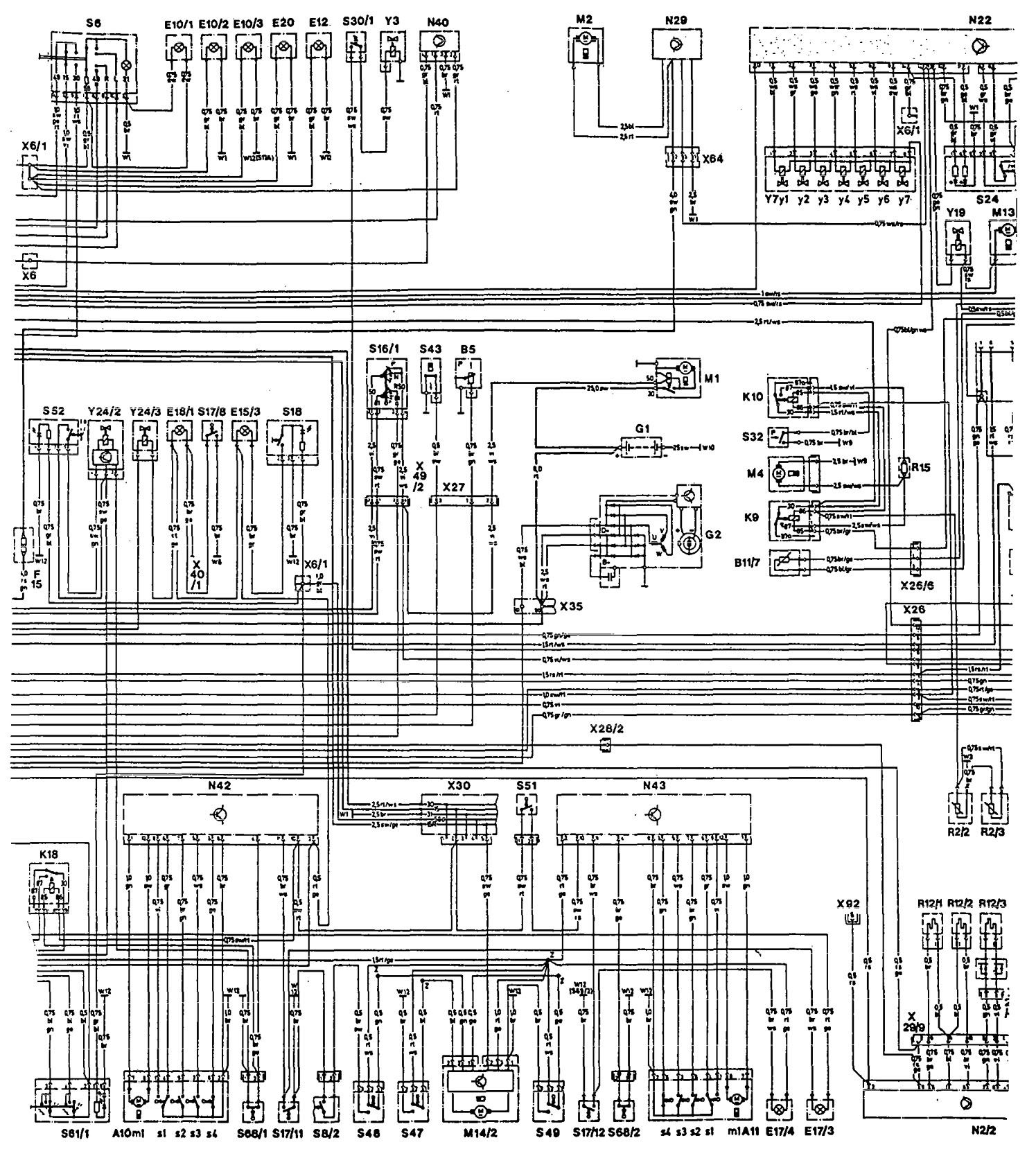

Mercedes-Benz 300CE - wiring diagram - starting (part 1)
Mercedes-Benz 300CE – wiring diagram – starting (part 1)

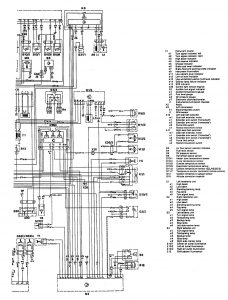

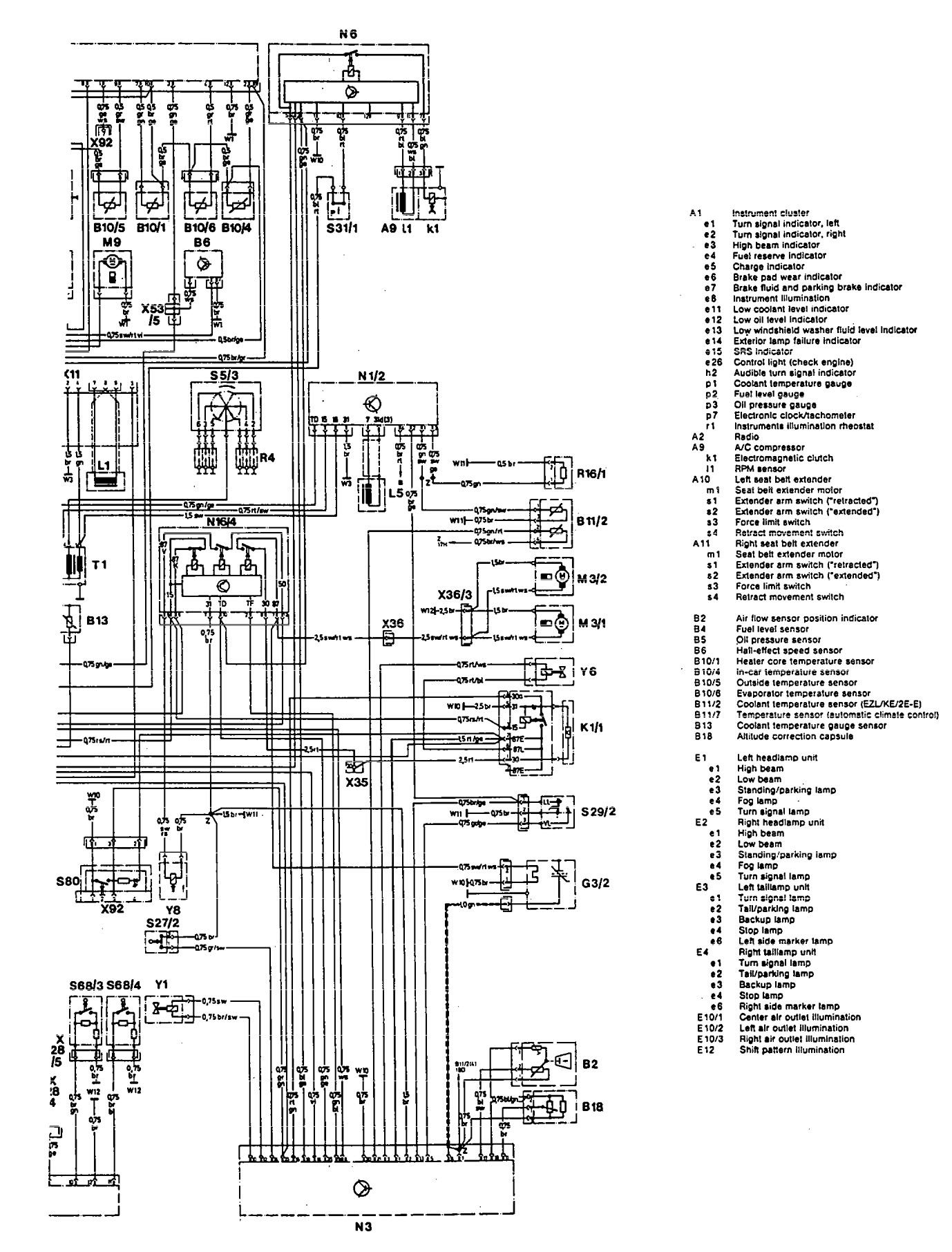

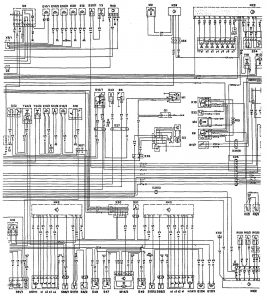

Mercedes-Benz 300CE - wiring diagram - starting (part 2)
Mercedes-Benz 300CE – wiring diagram – starting (part 2)
Mercedes-Benz 300CE - wiring diagram - starting (part 3)
Mercedes-Benz 300CE – wiring diagram – starting (part 3)

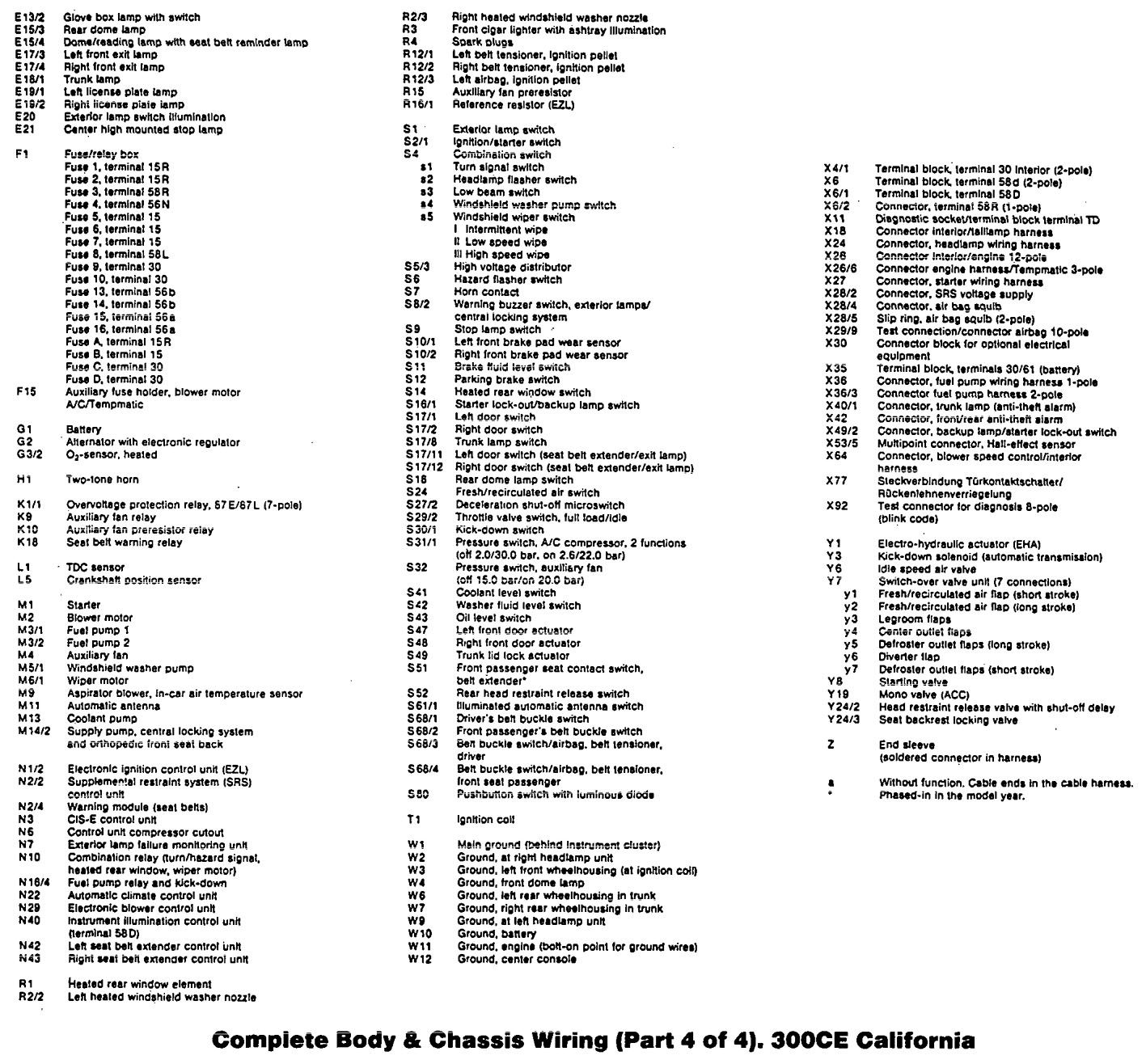

Mercedes-Benz 300CE - wiring diagram - starting (part 4)
Mercedes-Benz 300CE – wiring diagram – starting (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
