Mercedes-Benz 300CE (1990 – 1991) – wiring diagrams – warning indicators

Mercedes-Benz 300CE (1990 – 1991) – wiring diagrams – warning indicators

Year of productions:  1990, 1991

Warning indicators

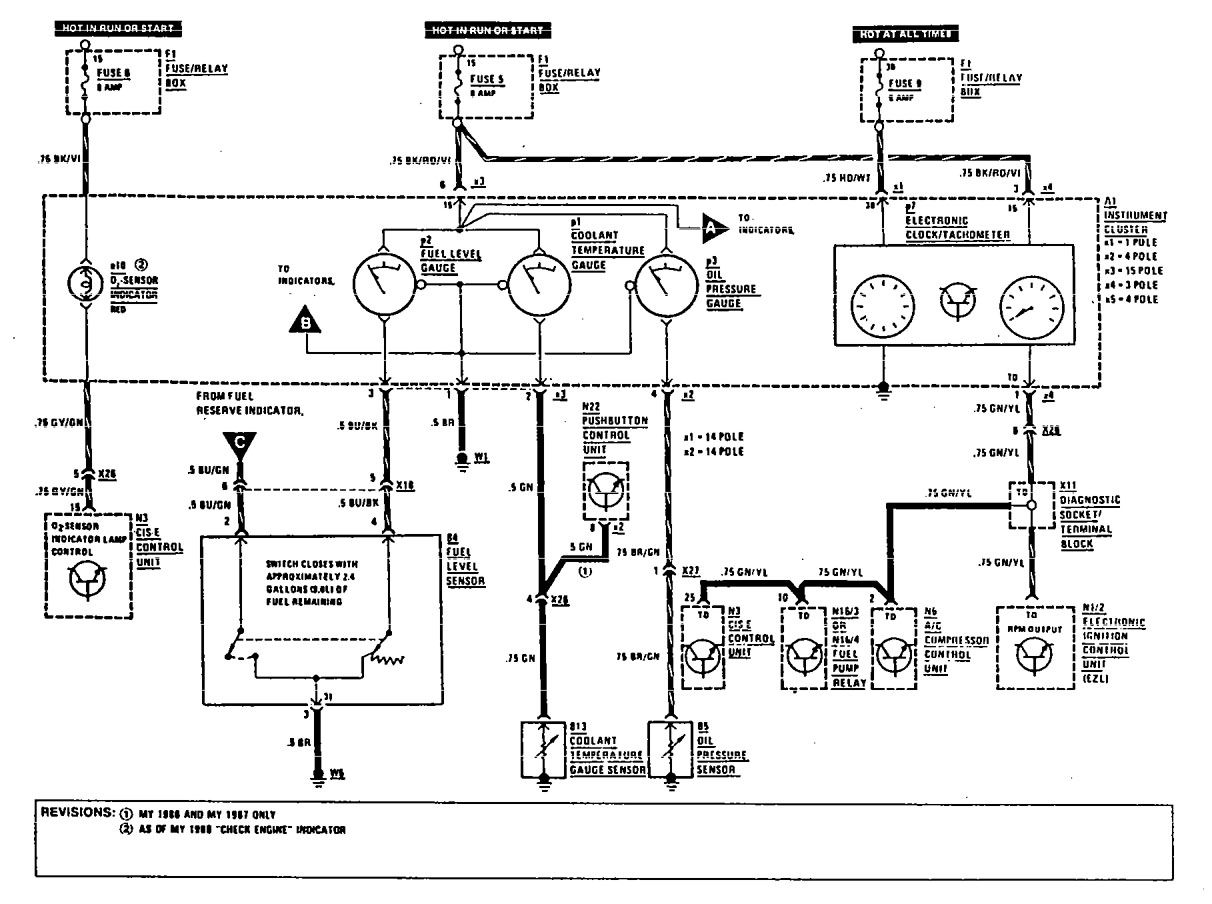

Mercedes-Benz 300CE - wiring diagram - warning indicators (part 1)
Mercedes-Benz 300CE – wiring diagram – warning indicators (part 1)

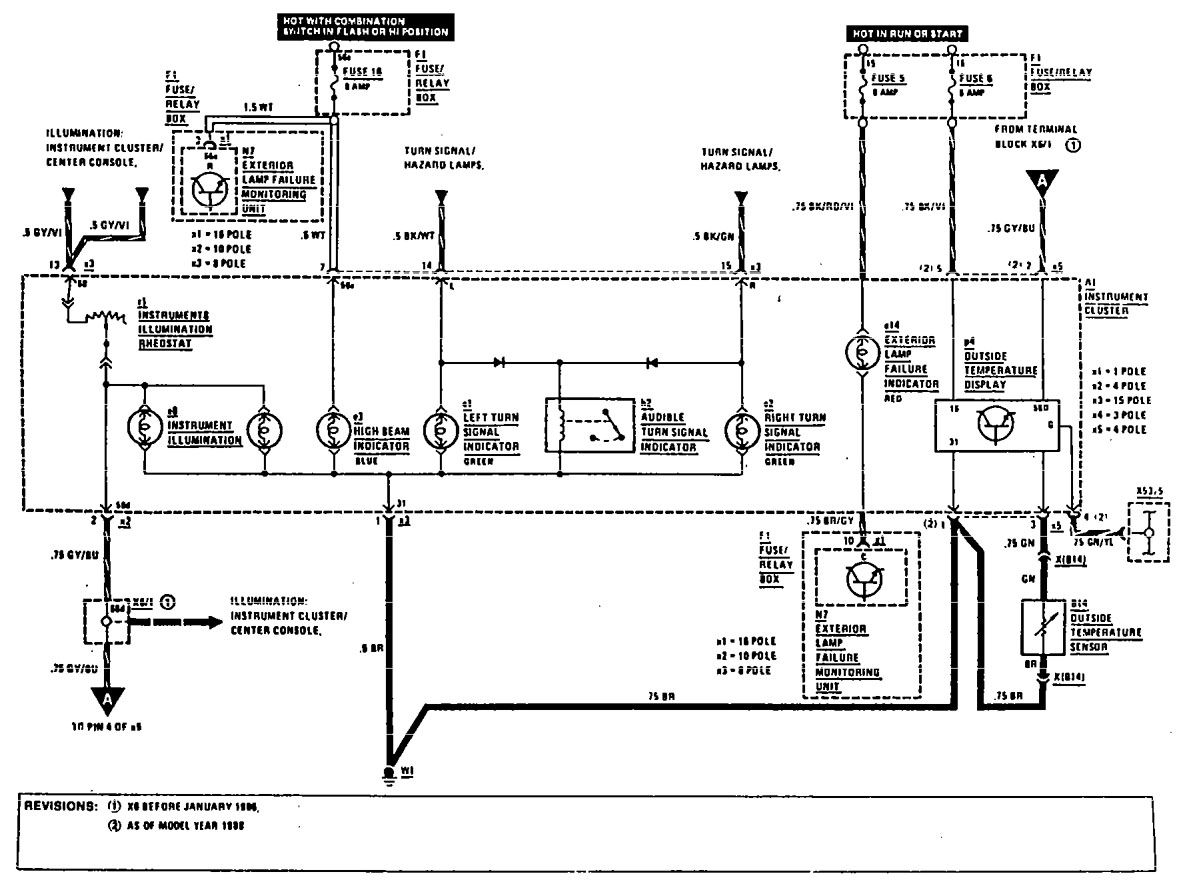

Mercedes-Benz 300CE - wiring diagram - warning indicators (part 2)
Mercedes-Benz 300CE – wiring diagram – warning indicators (part 2)

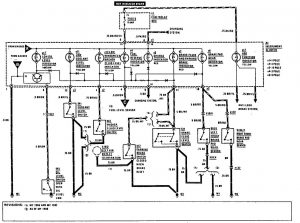

Mercedes-Benz 300CE - wiring diagram - warning indicators (part 3)
Mercedes-Benz 300CE – wiring diagram – warning indicators (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
