Headlamps

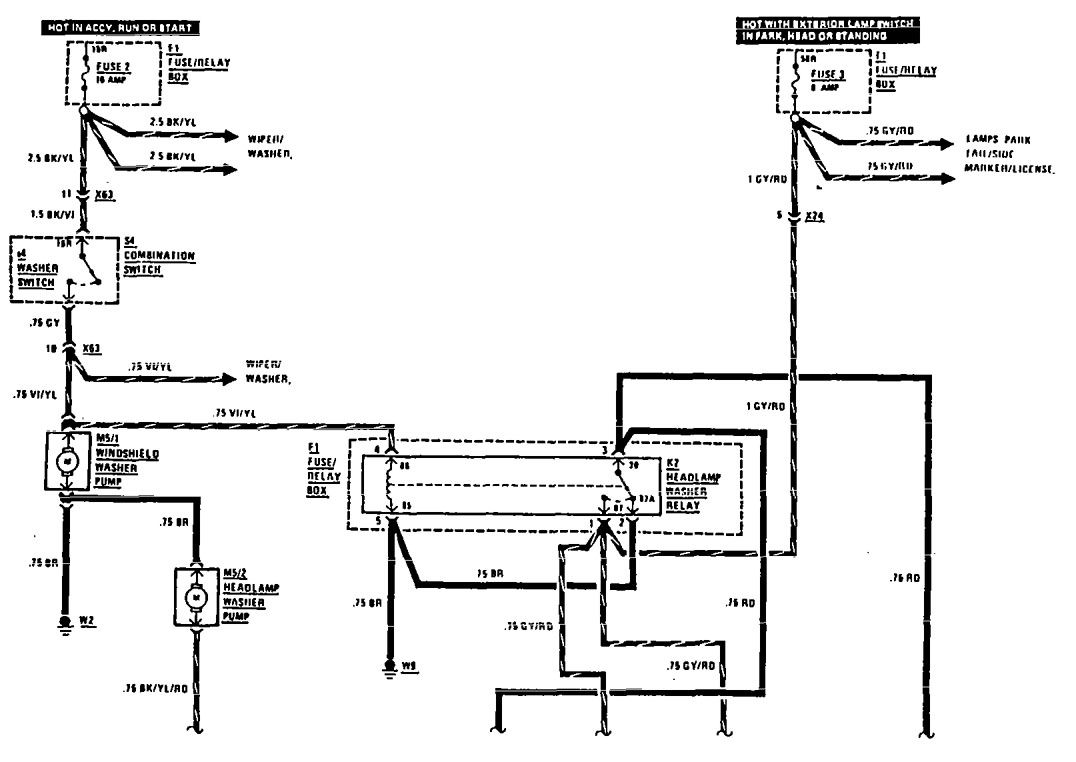

Mercedes-Benz 300CE - wiring diagram - headlamps (part 1)
Mercedes-Benz 300CE – wiring diagram –
headlamps (part 1)

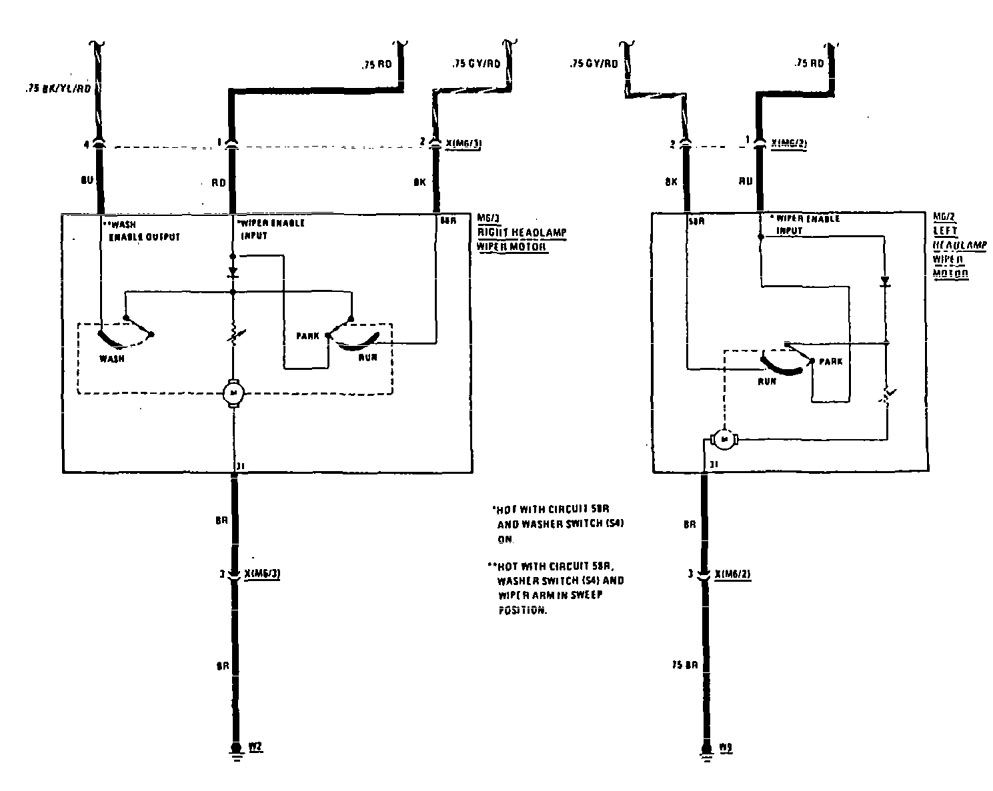

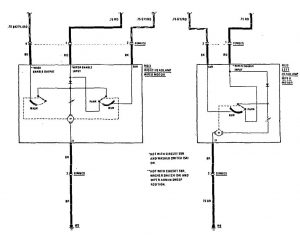

Mercedes-Benz 300CE - wiring diagram - headlamps (part 2)
Mercedes-Benz 300CE – wiring diagram –
headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
