Mercedes-Benz 190E (1991) – wiring diagrams – wiper/washer

Mercedes-Benz 190E (1991) – wiring diagrams – wiper/washer

Year of productions:  1991

Wiper/washer

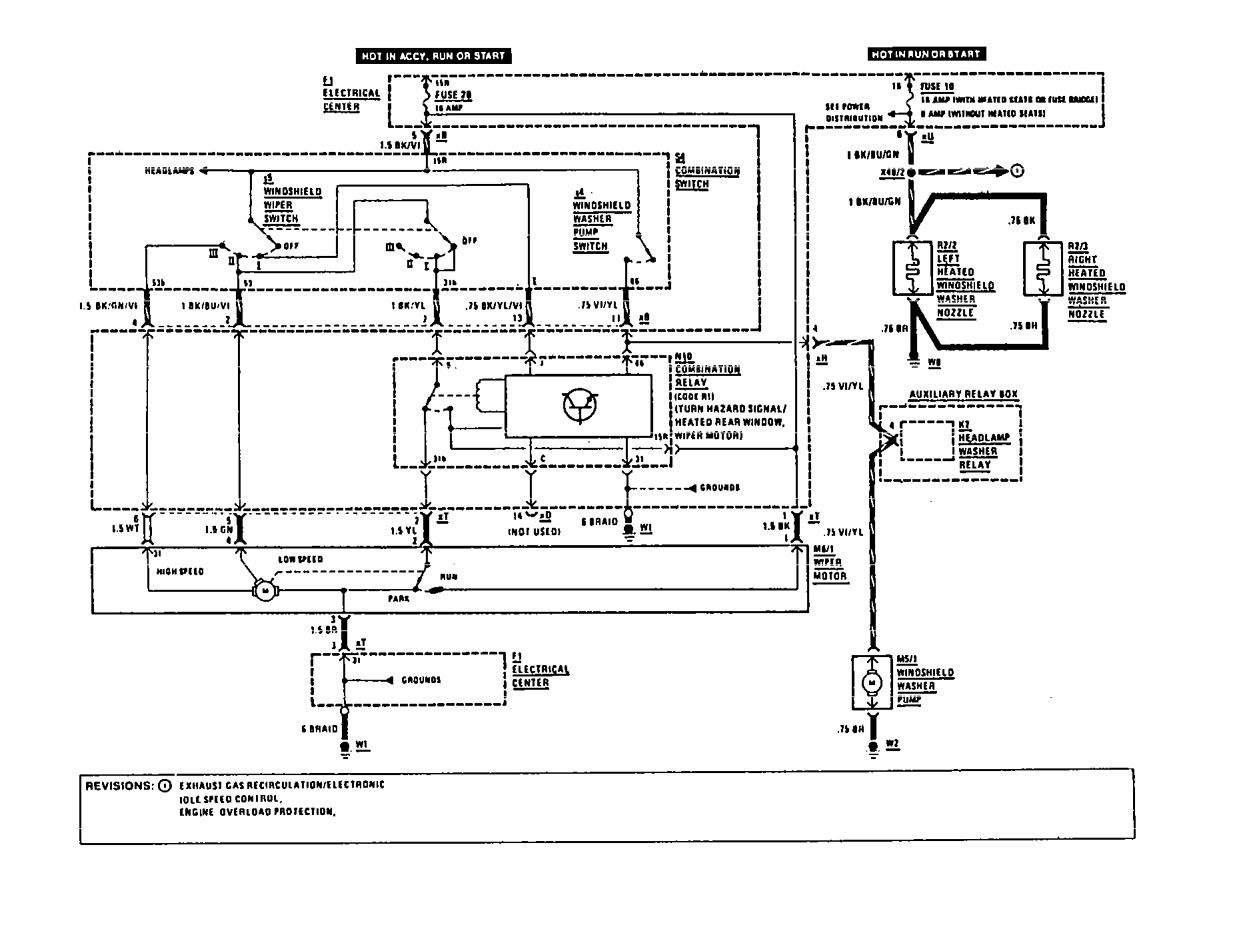

Version 1

Mercedes-Benz - wiring diagram - wiper/washer
Mercedes-Benz – wiring diagram – wiper/washer

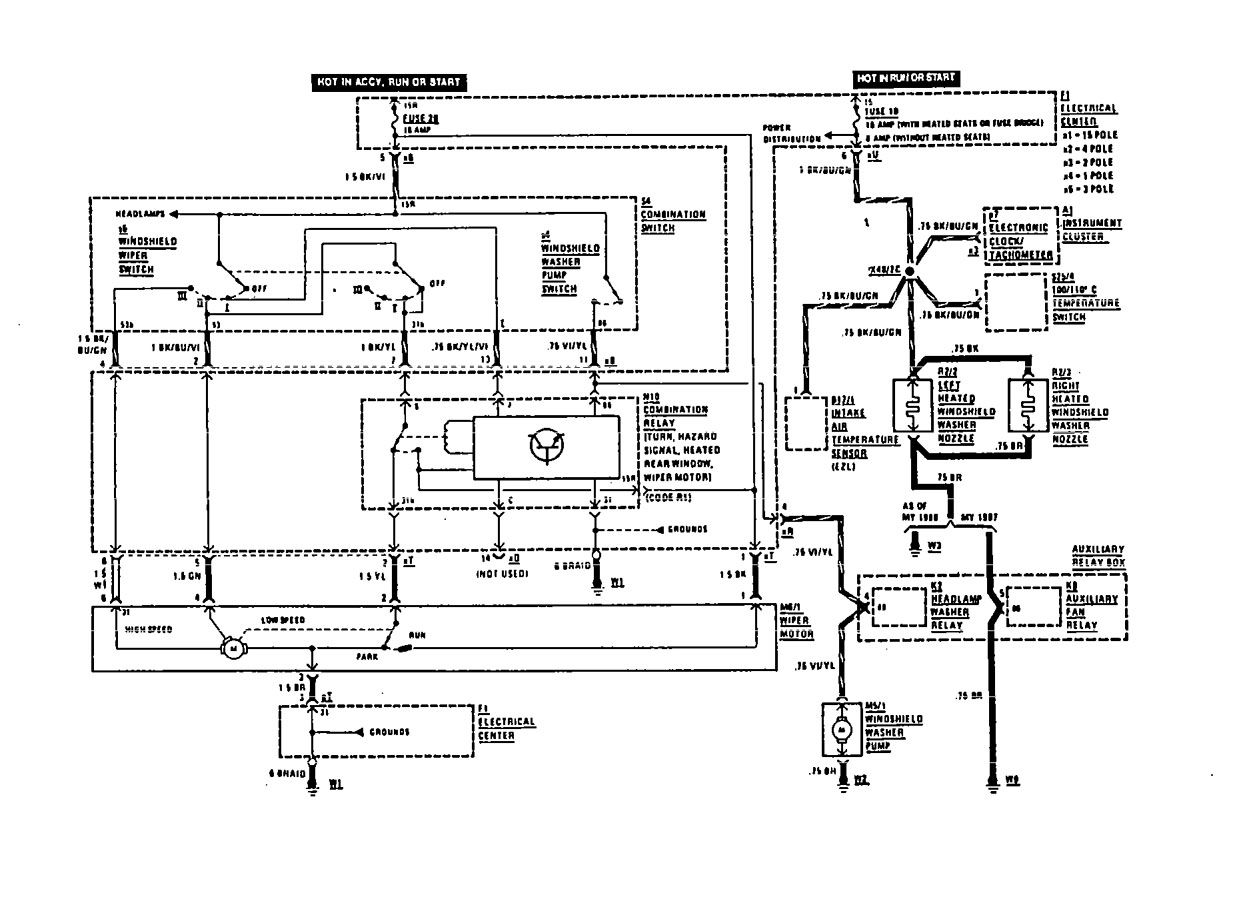

Version 2

Mercedes-Benz - wiring diagram - wiper/washer
Mercedes-Benz – wiring diagram – wiper/washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
