Mercedes-Benz 190E (1991) – wiring diagrams – starting

Mercedes-Benz 190E (1991) – wiring diagrams – starting

Year of productions:  1991

Starting

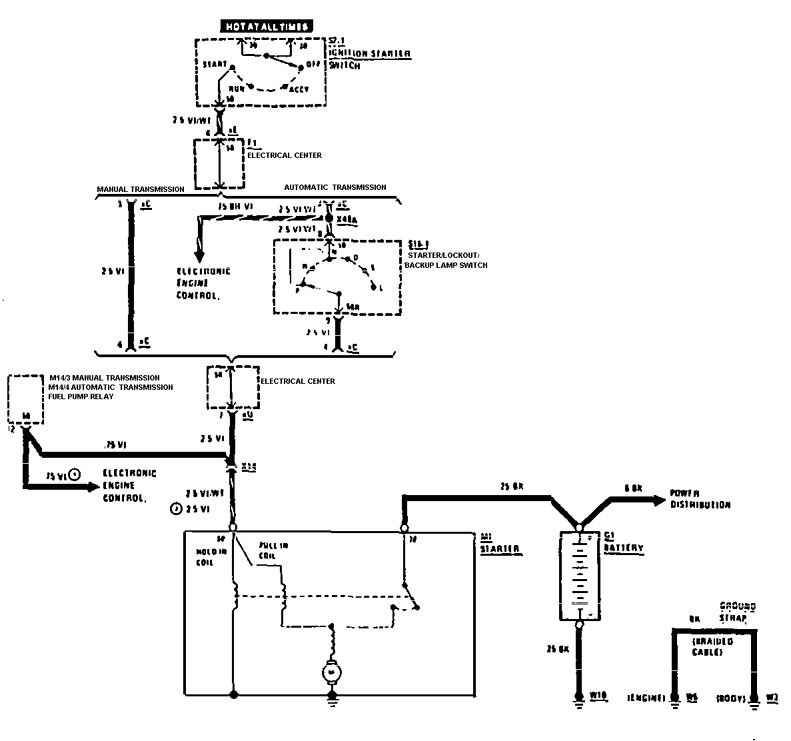

Mercedes Benz 190E -  wiring diagram - starting
Mercedes Benz 190E – wiring diagram – starting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
