Mercedes-Benz 190E (1991) – wiring diagrams – speed controls

Mercedes-Benz 190E (1991) – wiring diagrams – speed controls

Year of productions:  1991

Speed controls

Version 1

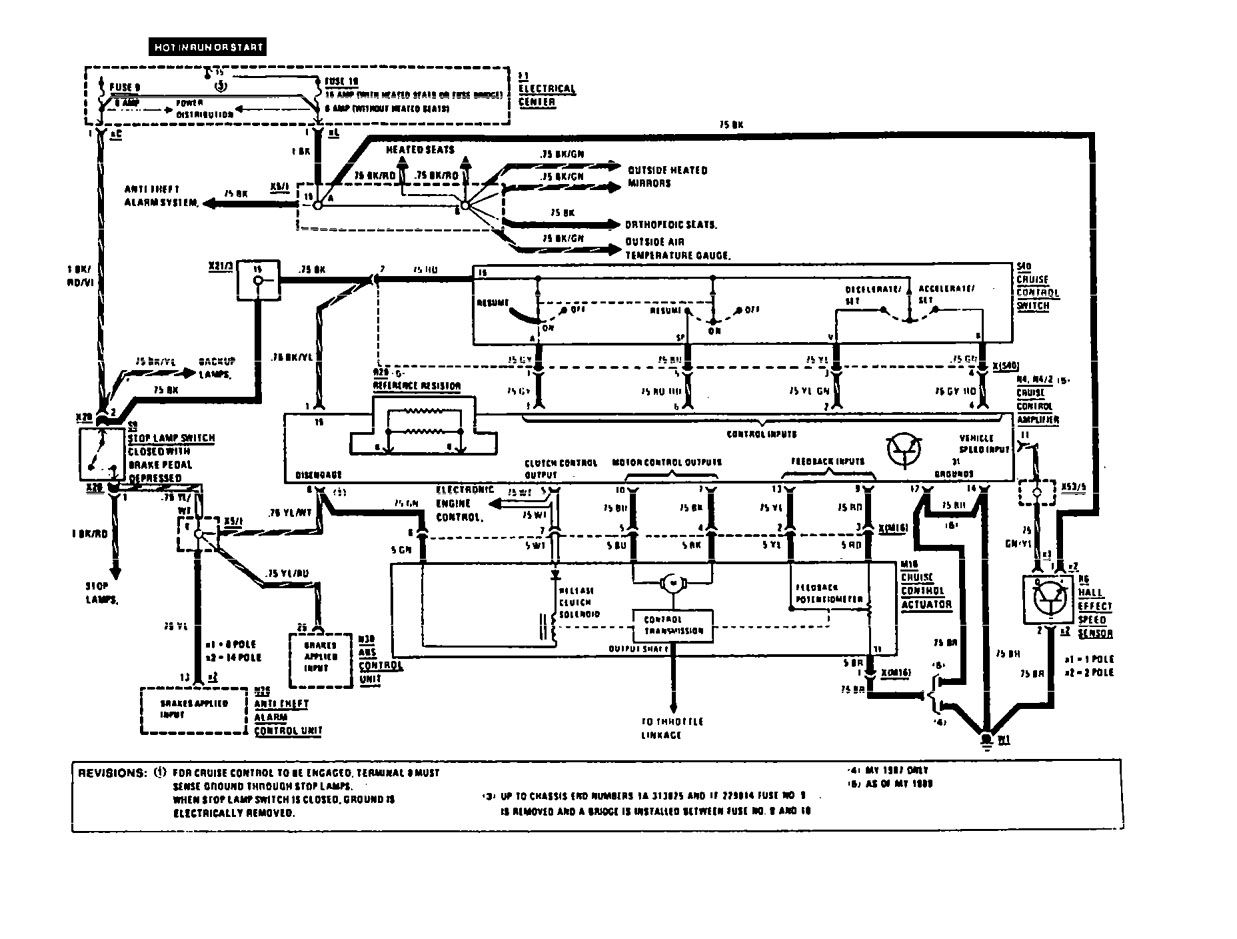

Mercedes-Benz 190E -  wiring diagram - speed control
Mercedes-Benz 190E – wiring diagram – speed control

Version 2

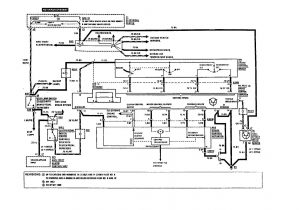

Mercedes-Benz 190E -  wiring diagram - speed control
Mercedes-Benz 190E – wiring diagram – speed control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
