Mercedes-Benz 190E (1991) – wiring diagrams – instrument panel lamps

Mercedes-Benz 190E (1991) – wiring diagrams – instrument panel lamps

Year of productions:  1991

Instrument panel lamps

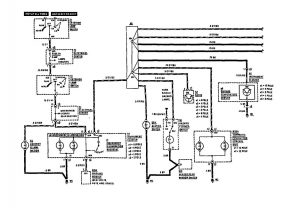

Mercedes-Benz 190E-  wiring diagram -  instrument panel lamps (part 1)
Mercedes-Benz 190E- wiring diagram –
instrument panel lamps (part 1)

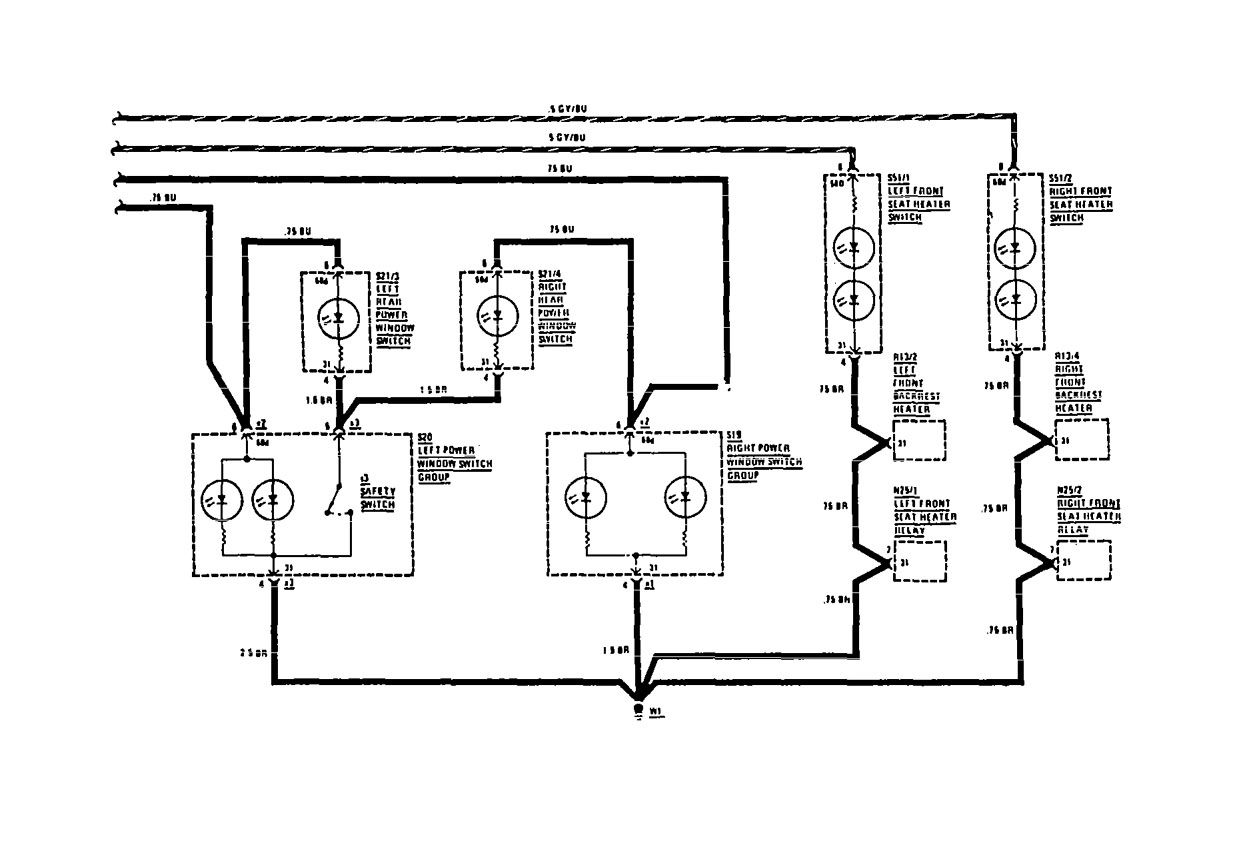

Mercedes-Benz 190E-  wiring diagram -  instrument panel lamps (part 2)
Mercedes-Benz 190E- wiring diagram –
instrument panel lamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
