Mercedes-Benz 190E (1991) – wiring diagrams – HVAC Controls

Mercedes-Benz 190E (1991) – wiring diagrams – HVAC Controls

Year of productions:  1991

HVAC Controls

Version 1

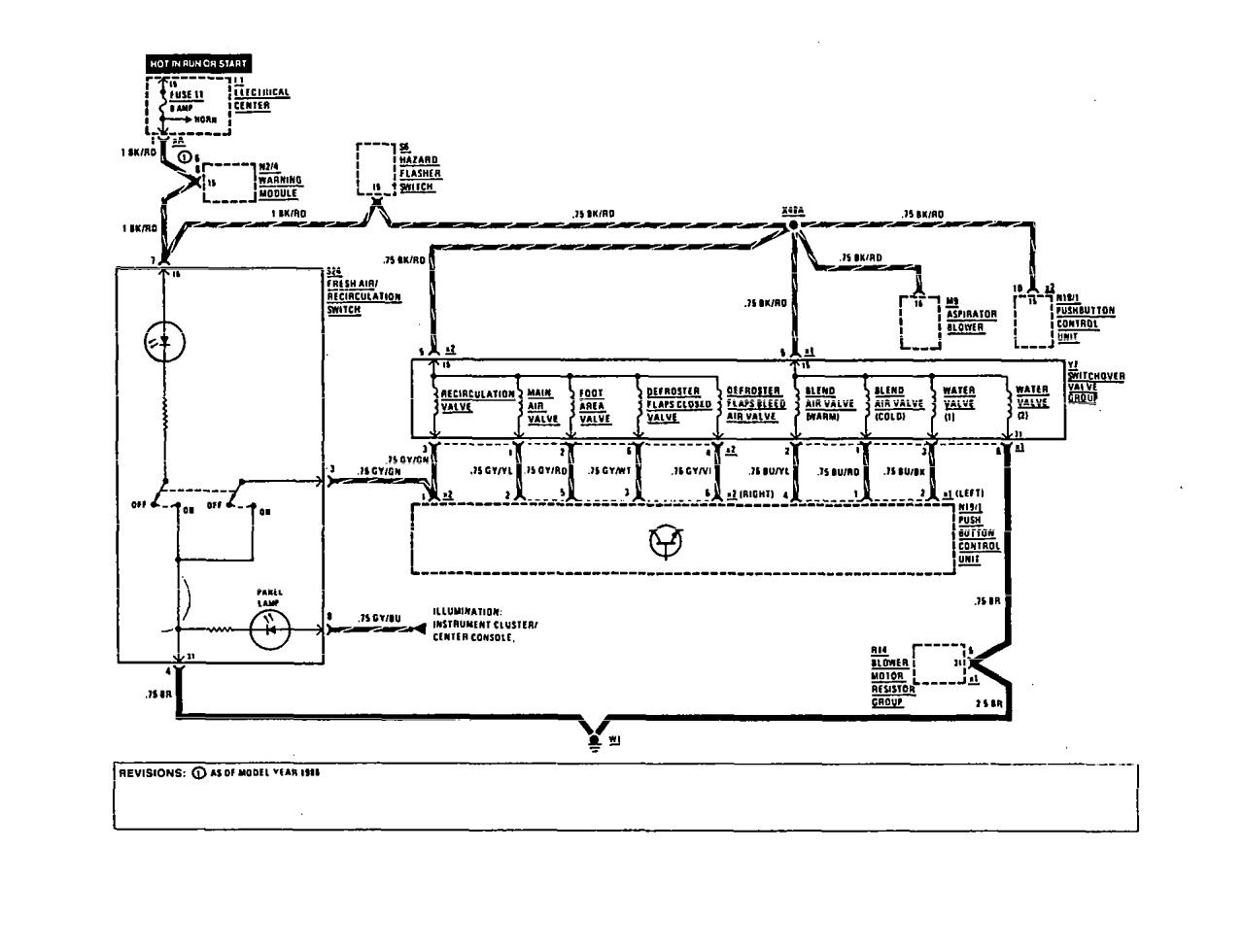

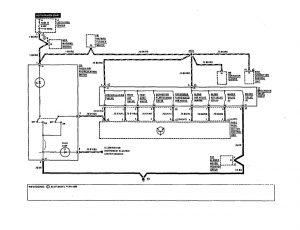

Mercedes Benz 190E -  wiring diagram - HVAC controls (part 1)
Mercedes Benz 190E – wiring diagram – HVAC controls (part 1)

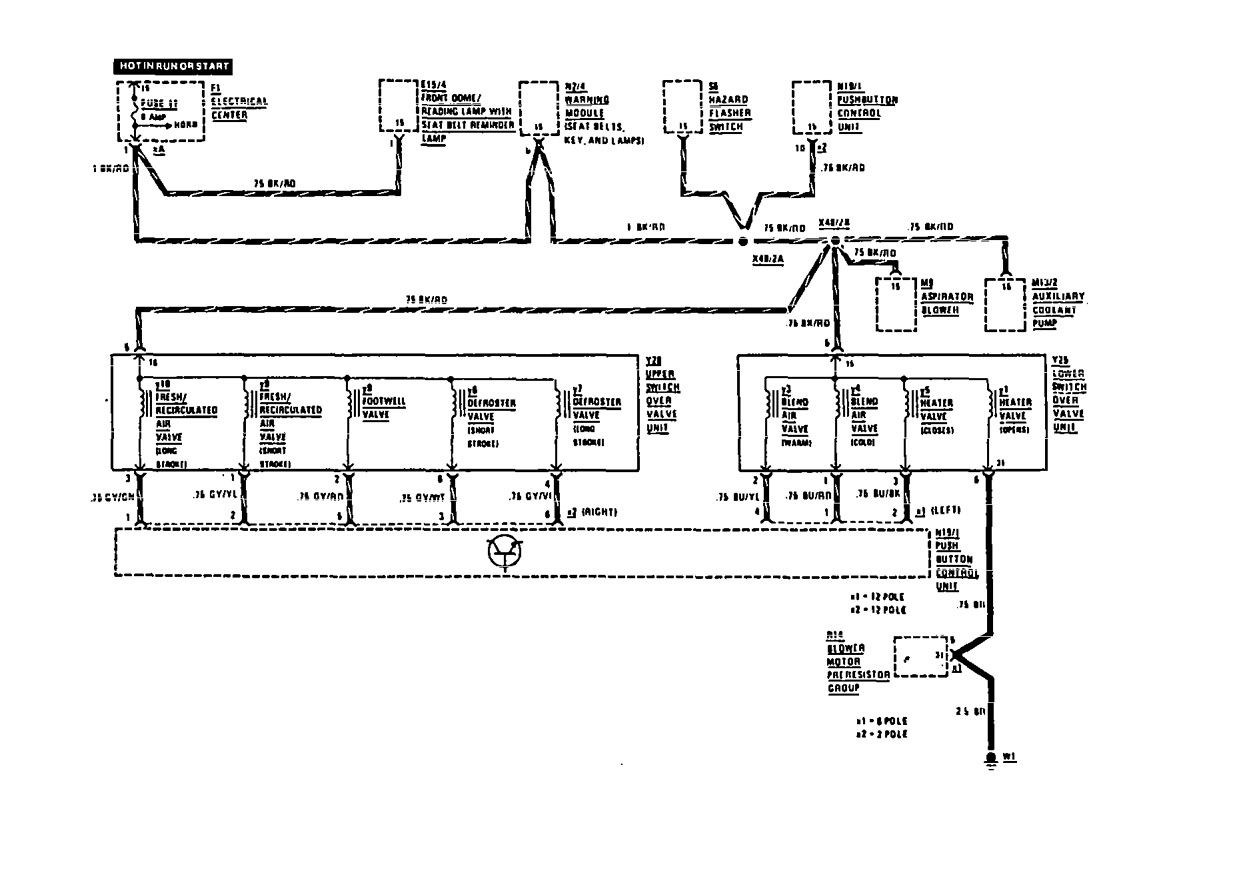

Mercedes Benz 190E -  wiring diagram - HVAC controls (part 2)
Mercedes Benz 190E – wiring diagram – HVAC controls (part 2)

Version 2

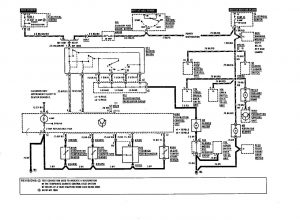

Mercedes Benz 190E -  wiring diagram - HVAC controls
Mercedes Benz 190E – wiring diagram – HVAC controls

Version 3

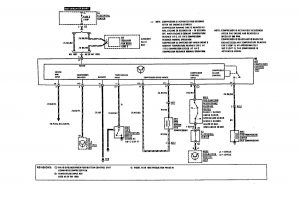

Mercedes Benz 190E -  wiring diagram - HVAC controls (part 1)
Mercedes Benz 190E – wiring diagram – HVAC controls (part 1)

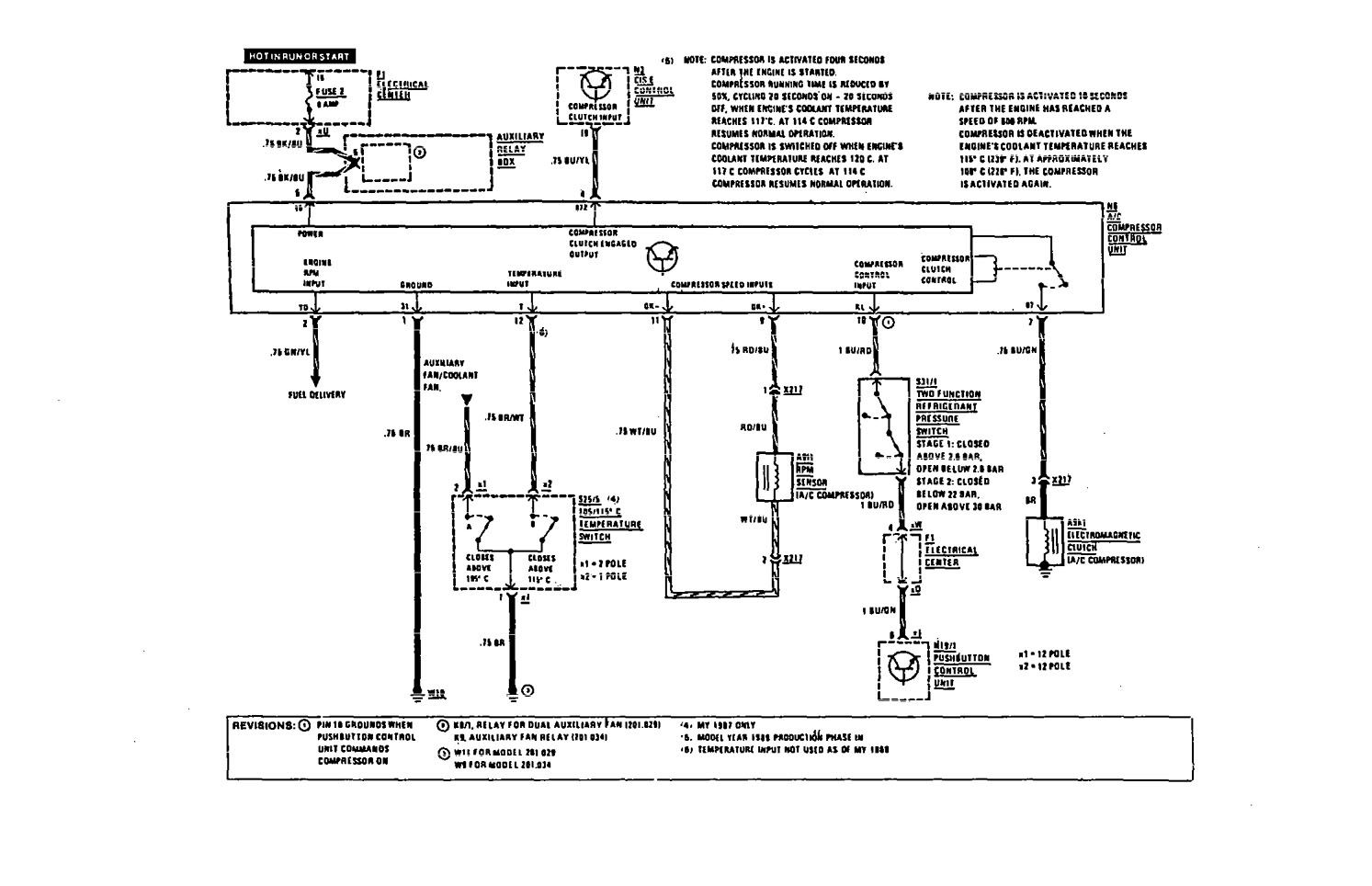

Mercedes Benz 190E -  wiring diagram - HVAC controls (part 2)
Mercedes Benz 190E – wiring diagram – HVAC controls (part 2)

Version 4

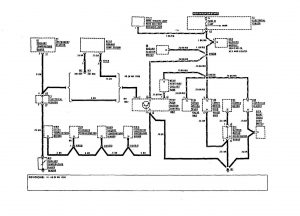

Mercedes Benz 190E -  wiring diagram - HVAC controls
Mercedes Benz 190E – wiring diagram – HVAC controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
