Mercedes-Benz 190E (1991) – wiring diagrams – headlamps

Mercedes-Benz 190E (1991) – wiring diagrams – headlamps

Year of productions:  1991

Headlamps

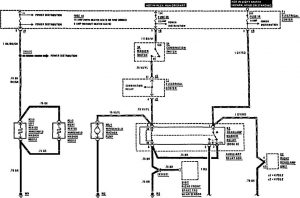

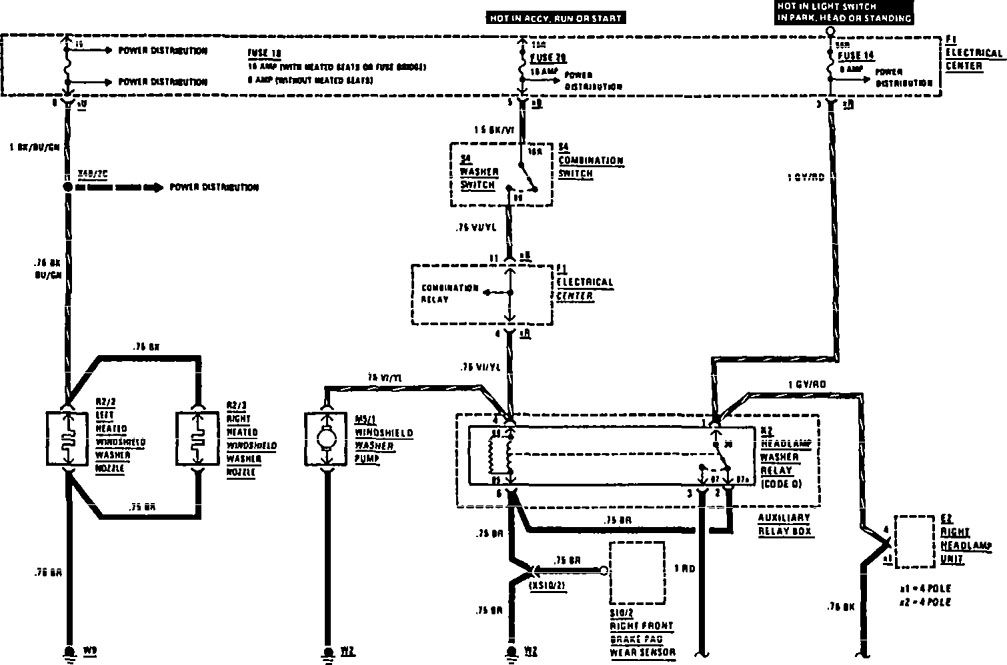

Mercedes-Benz 190E -  wiring diagram -  headlamps (part 1)
Mercedes-Benz 190E – wiring diagram –
headlamps (part 1)

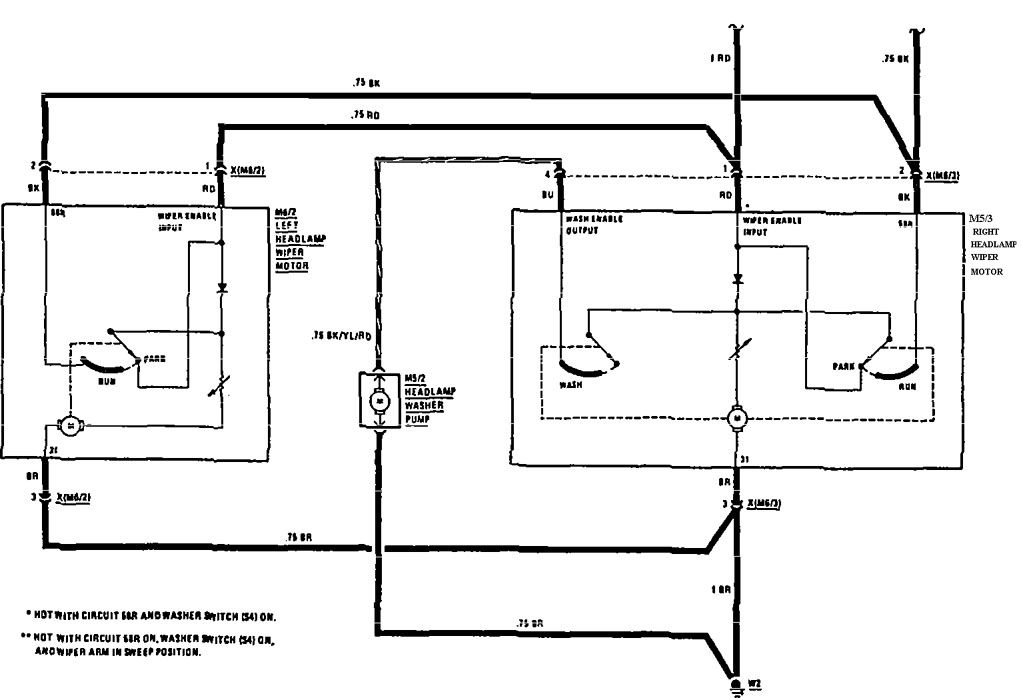

Mercedes-Benz 190E -  wiring diagram -  headlamps (part 2)
Mercedes-Benz 190E – wiring diagram –
headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
