Mercedes-Benz 190E (1991) – wiring diagrams – fuel controls

Mercedes-Benz 190E (1991) – wiring diagrams – fuel controls

Year of productions:  1991

Fuel controls

Version 1

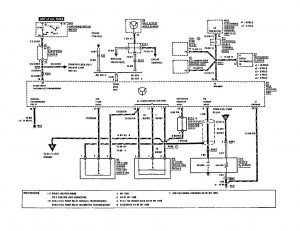

Mercedes-Benz 190E -  wiring diagram - fuel controls (part 1)
Mercedes-Benz 190E – wiring diagram – fuel controls (part 1)

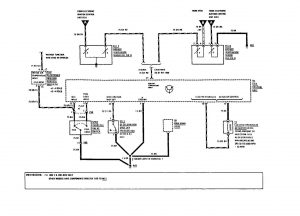

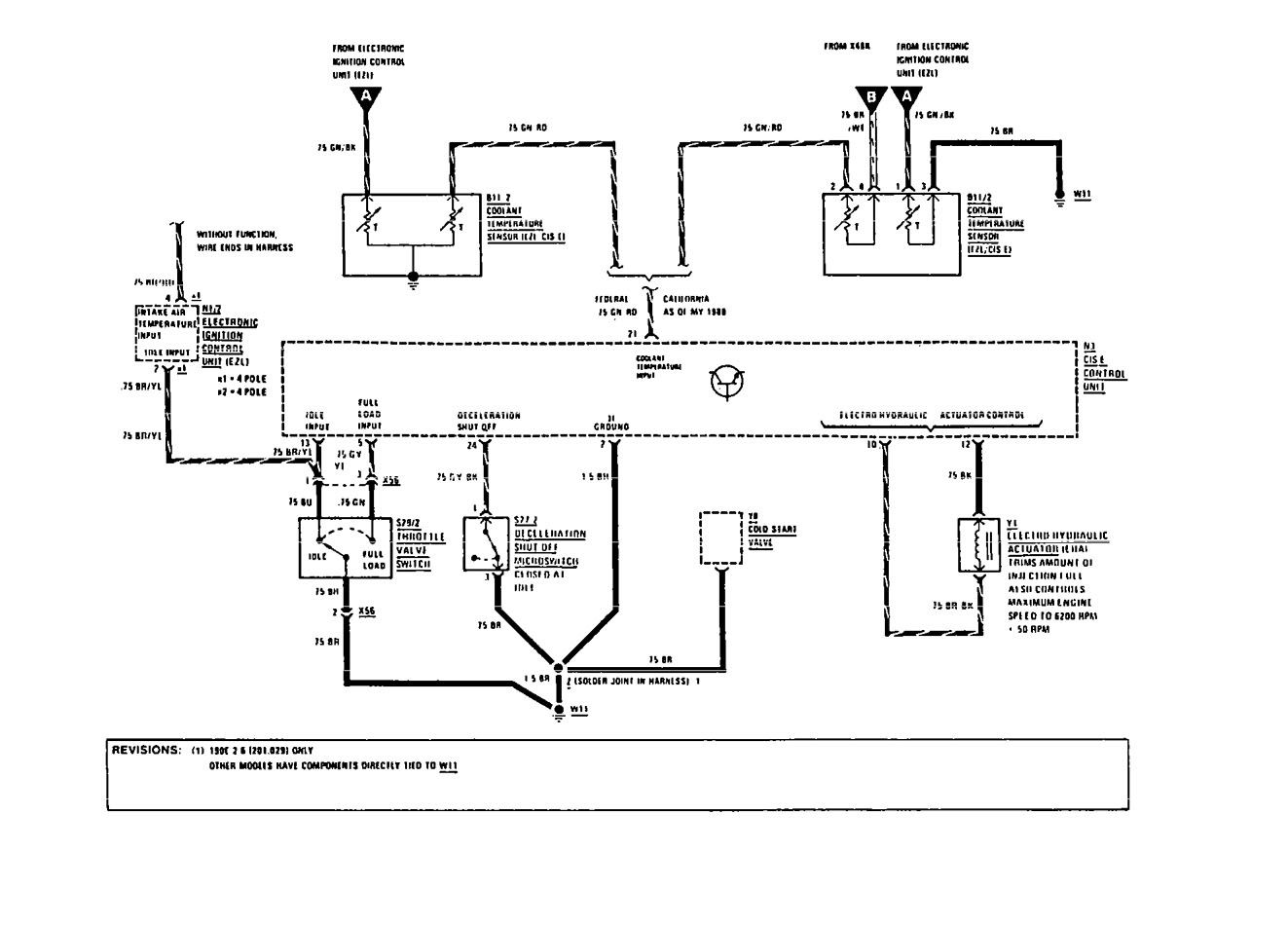

Mercedes-Benz 190E - wiring diagram - fuel controls (part 2)
Mercedes-Benz 190E – wiring diagram – fuel controls (part 2)

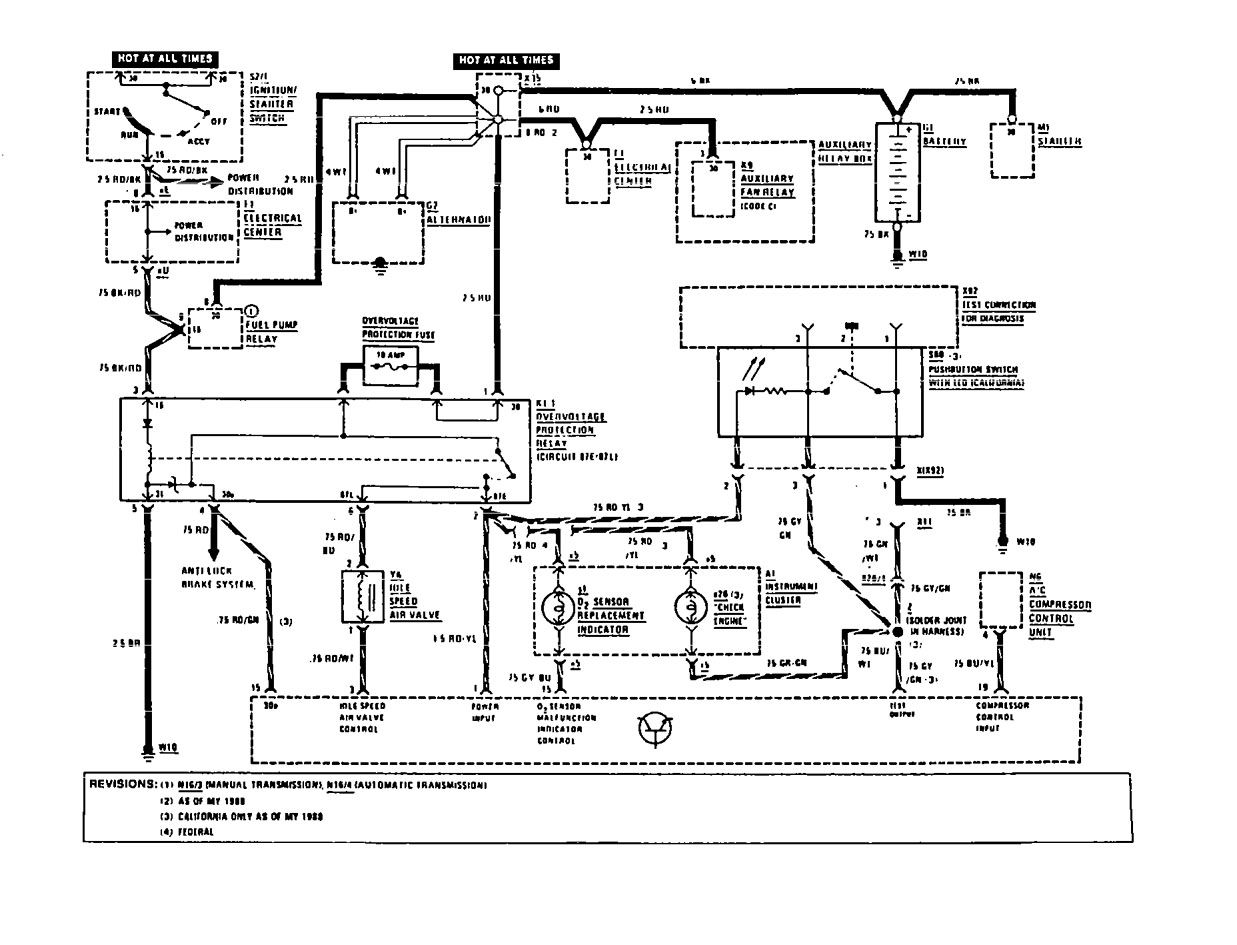

Mercedes-Benz 190E - wiring diagram - fuel controls (part 3)
Mercedes-Benz 190E – wiring diagram – fuel controls (part 3)

Version 2

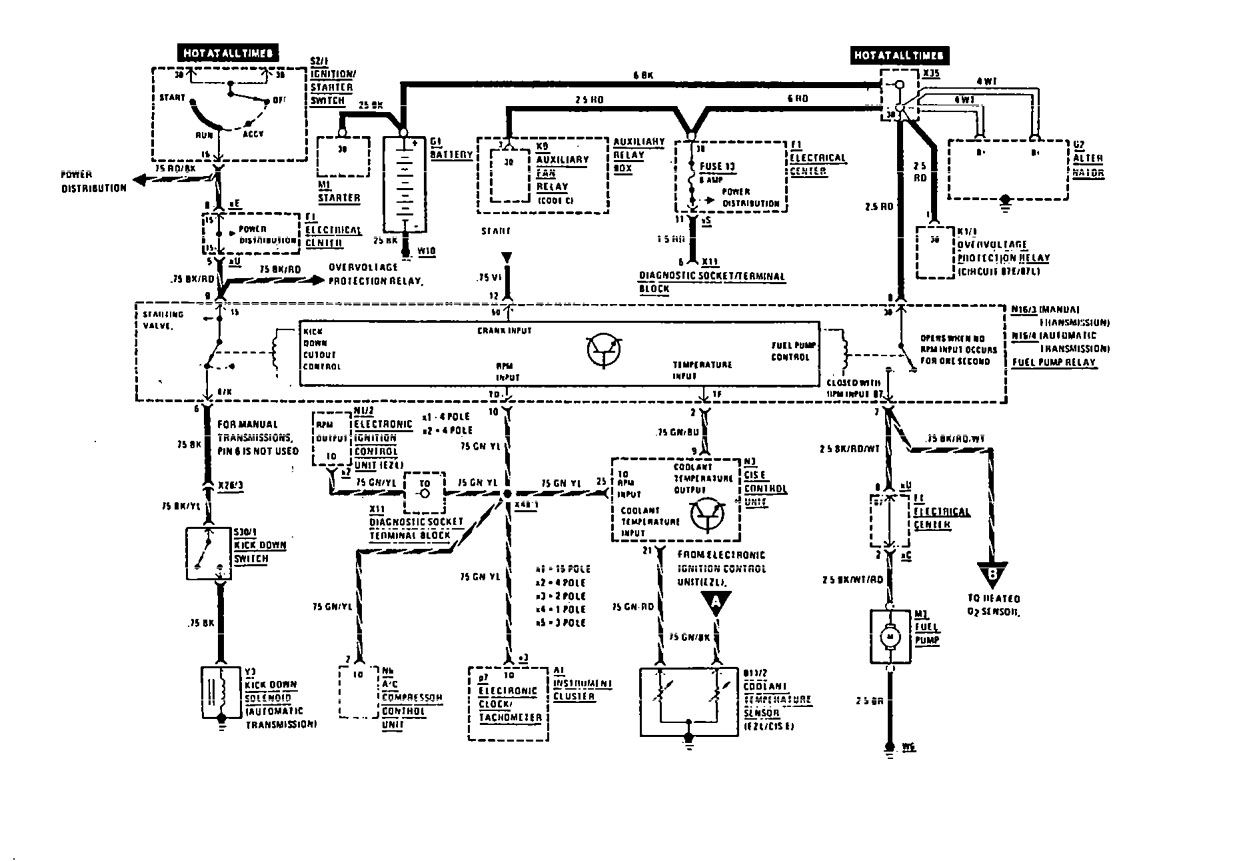

Mercedes-Benz 190E - wiring diagram - fuel controls
Mercedes-Benz 190E – wiring diagram – fuel controls

Version 3

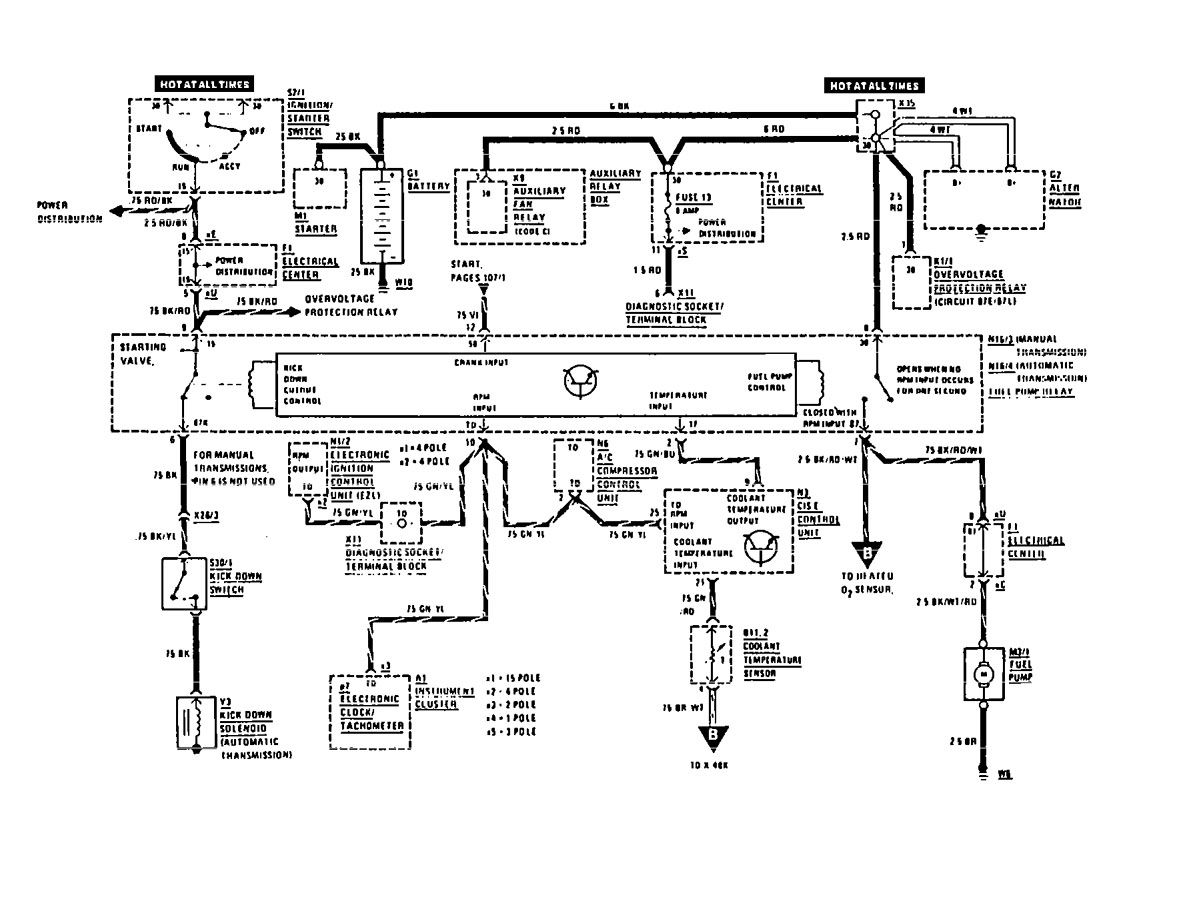

Mercedes-Benz 190E - wiring diagram - fuel controls
Mercedes-Benz 190E – wiring diagram – fuel controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
