Year of productions:  1991

Cooling fans

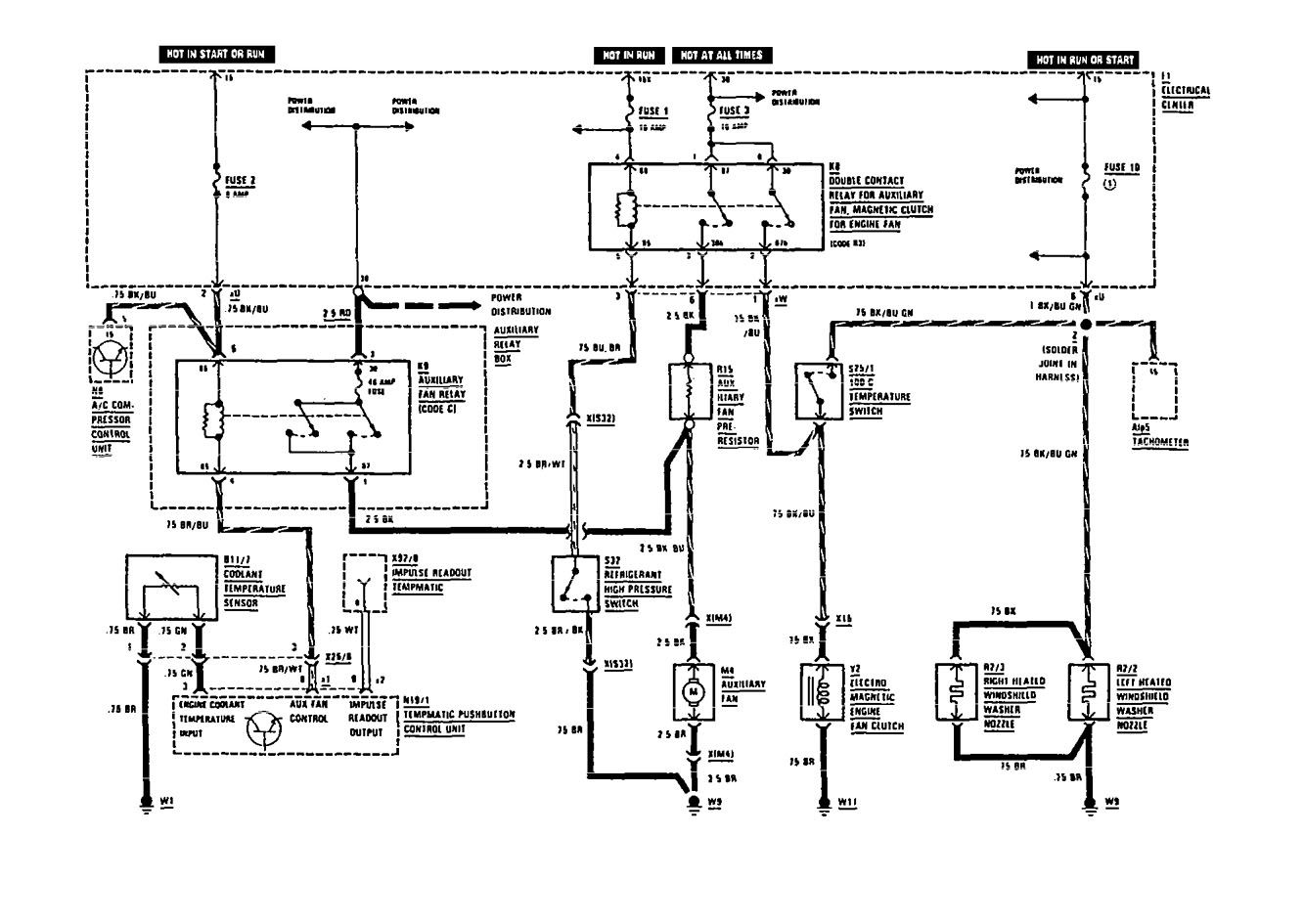

Mercedes-Benz 190E -  wiring diagram - cooling fans
Mercedes-Benz 190E – wiring diagram – cooling fans

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
