Mercedes-Benz 190E (1990) – wiring diagrams – symbol ID

Mercedes-Benz 190E (1990) – wiring diagrams – symbol ID

Year of productions:  1990

Symbol ID

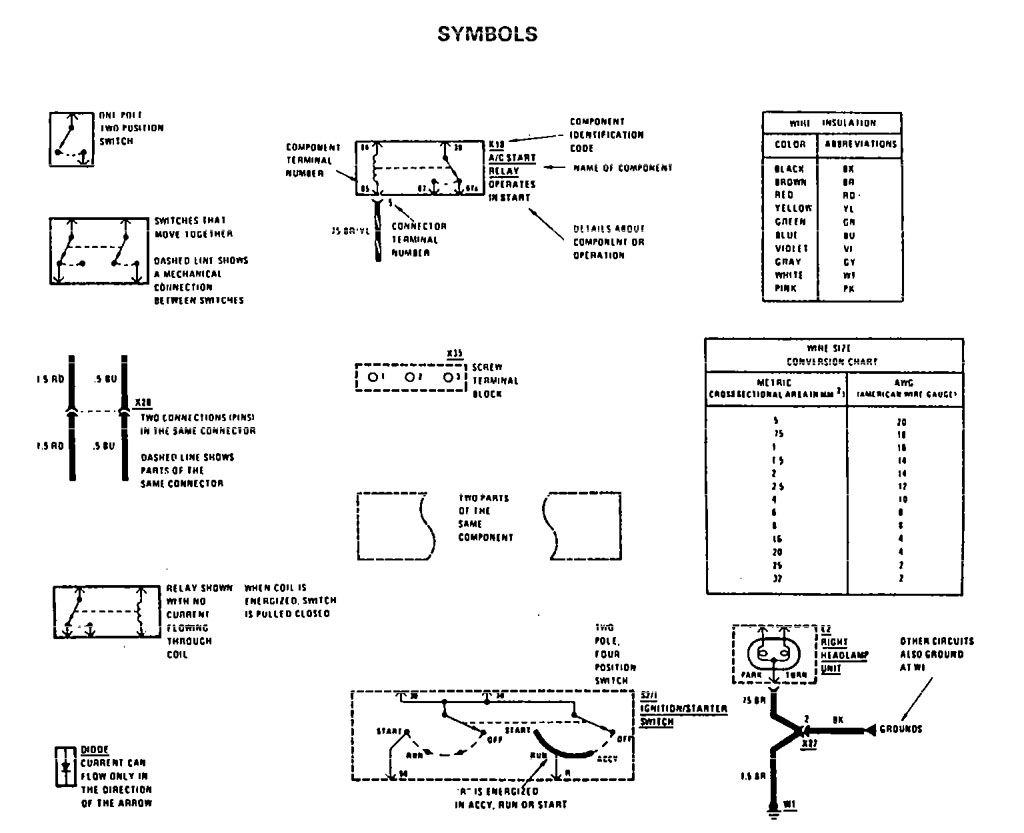

Mercedes-Benz 190E -  wiring diagram - symbol ID (part 1)
Mercedes-Benz 190E – wiring diagram – symbol ID (part 1)

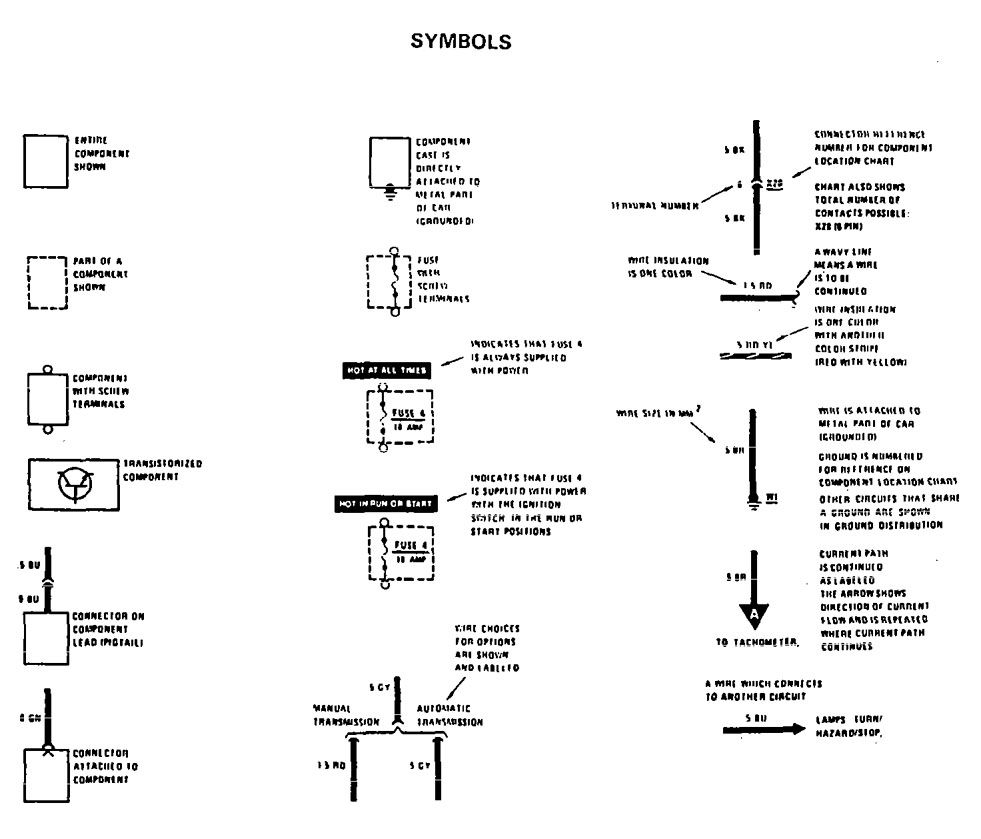

Mercedes-Benz 190E - wiring diagram - symbol ID (part 2)
Mercedes-Benz 190E – wiring diagram – symbol ID (part 2)

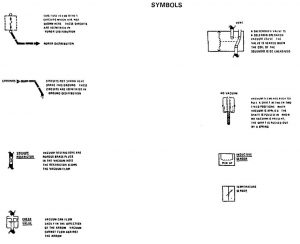

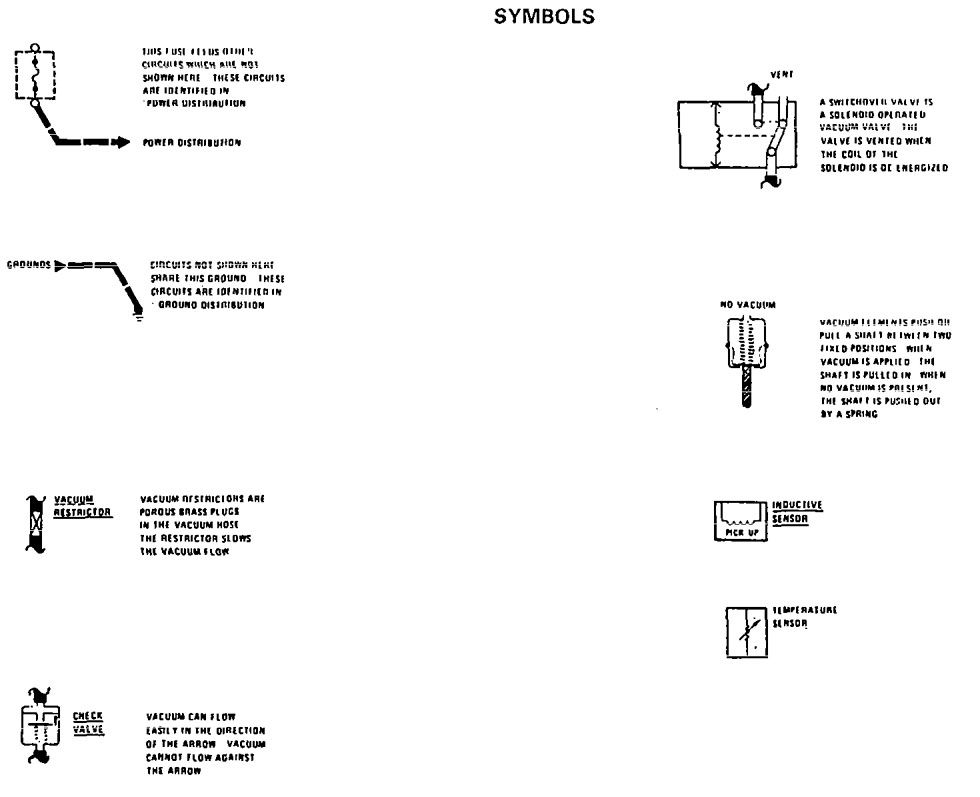

Mercedes-Benz 190E - wiring diagram - symbol ID (part 3)
Mercedes-Benz 190E – wiring diagram – symbol ID (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
