Mercedes-Benz 190E (1990) – wiring diagrams – speed controls

Mercedes-Benz 190E (1990) – wiring diagrams – speed controls

Year of productions:  1990

Speed controls

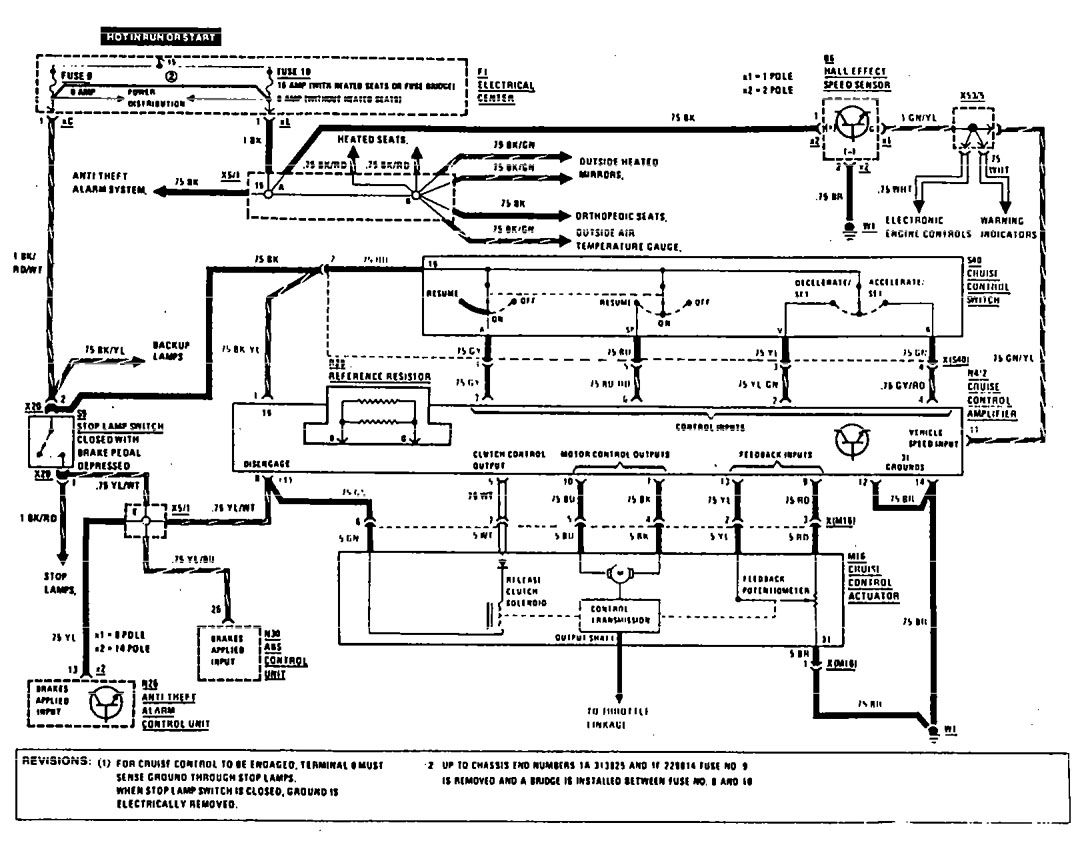

Version 1

Mercedes-Benz 190E -  wiring diagram - speed controls
Mercedes-Benz 190E – wiring diagram – speed controls

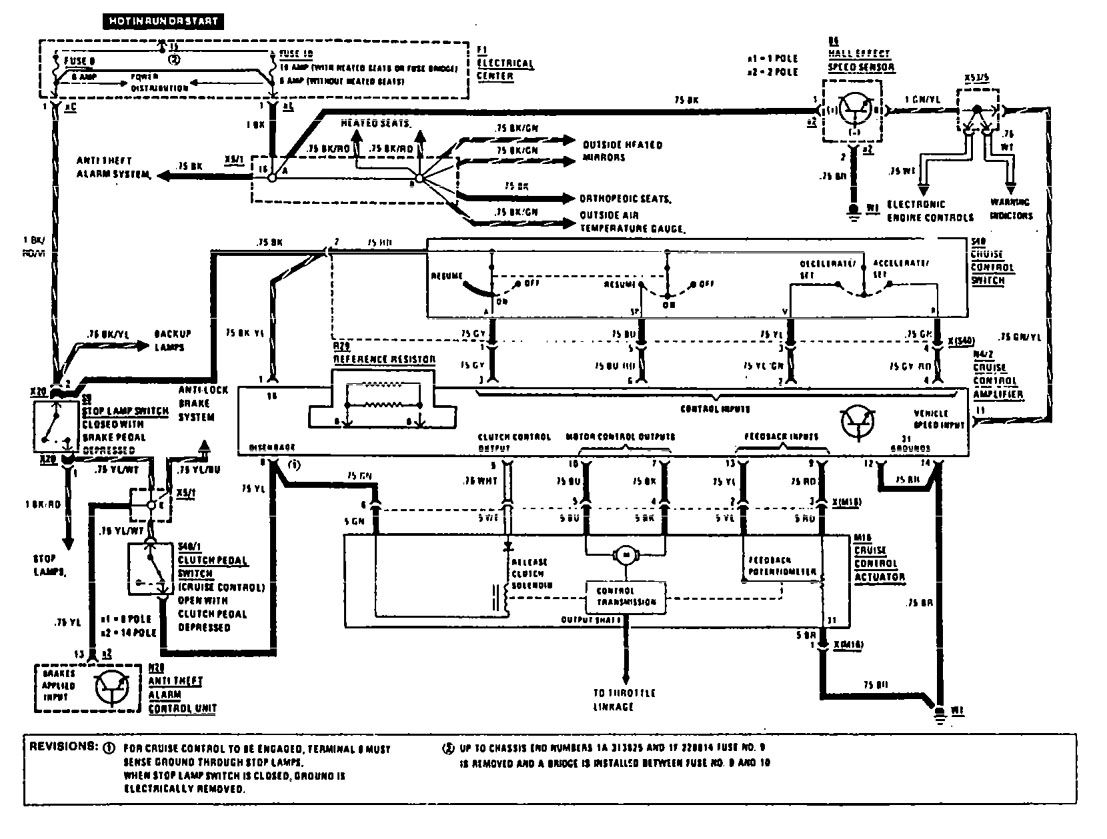

Version 2

Mercedes-Benz 190E - wiring diagram - speed controls
Mercedes-Benz 190E – wiring diagram – speed controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
