Mercedes-Benz 190E (1990 – 1991) – wiring diagrams – security/anti-theft

Mercedes-Benz 190E (1990 – 1991) – wiring diagrams – security/anti-theft

Year of productions:  1990, 1991

Security/anti-theft

Mercedes Benz 190E - wiring diagram - security/anti-theft (part 1)

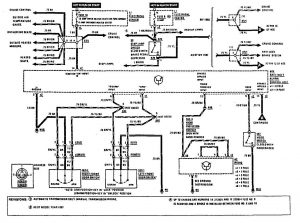

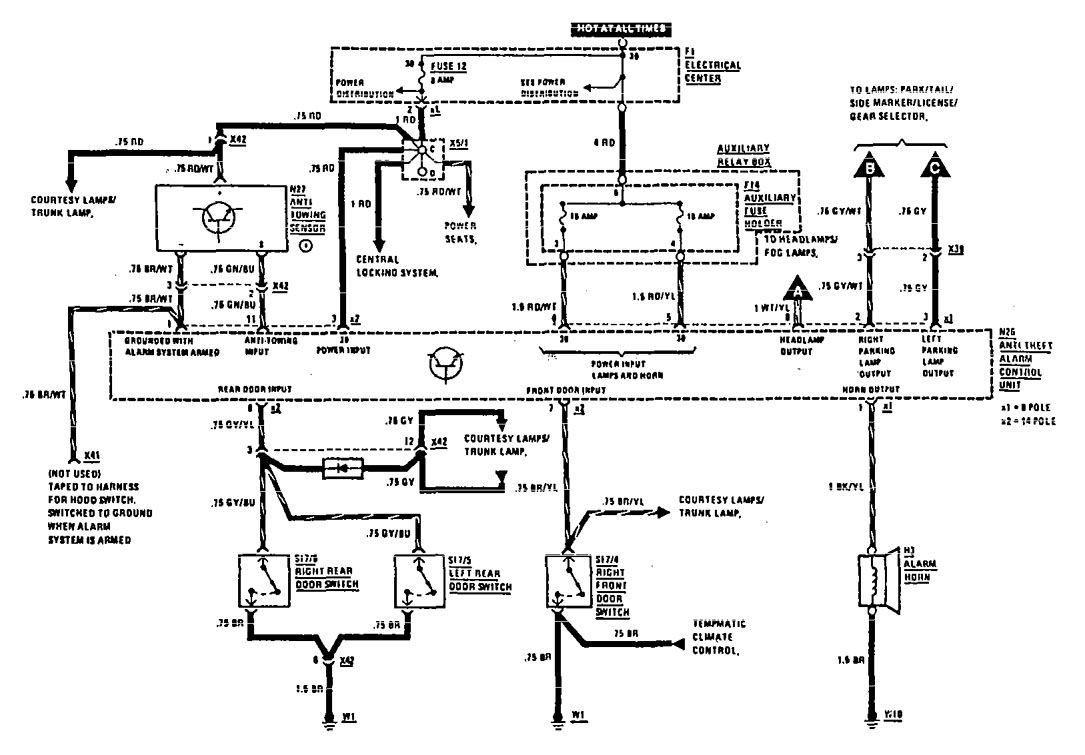

Mercedes Benz 190E – wiring diagram – security/anti-theft (part 1)
Mercedes Benz 190E - wiring diagram - security/anti-theft (part 2)

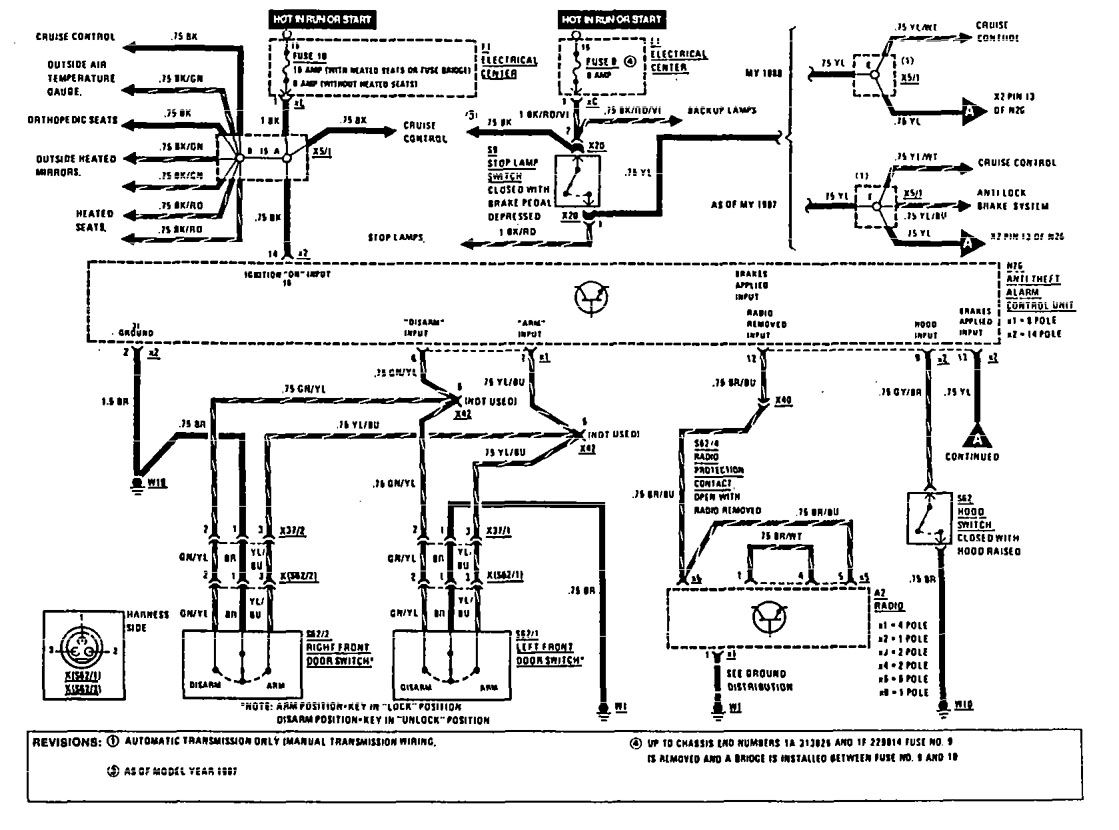

Mercedes Benz 190E – wiring diagram – security/anti-theft (part 2)
Mercedes Benz 190E - wiring diagram - security/anti-theft (part 3)
Mercedes Benz 190E – wiring diagram –

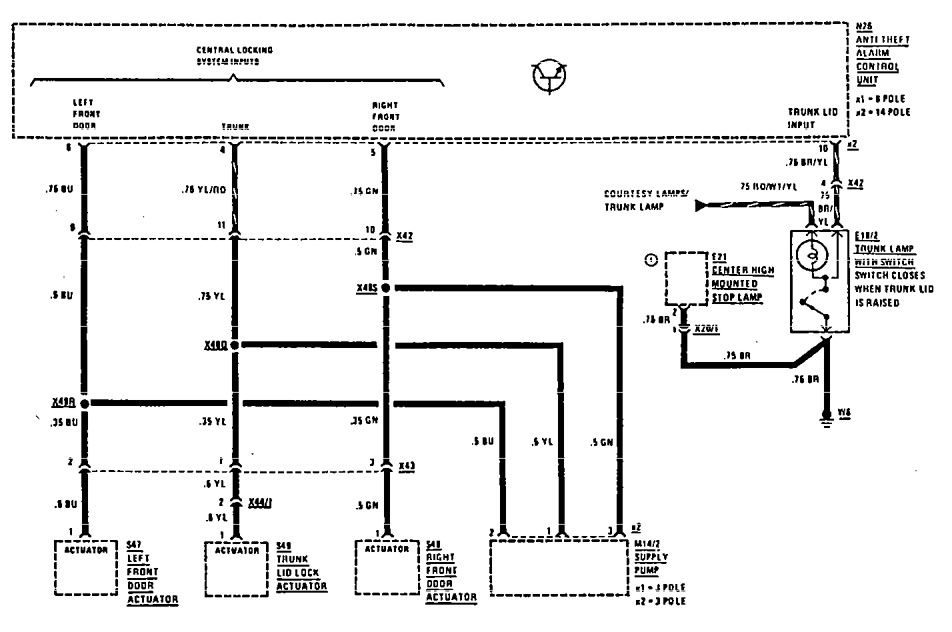

security/anti-theft (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
