Mercedes-Benz 190E (1990) – wiring diagrams – power distribution

Mercedes-Benz 190E (1990) – wiring diagrams – power distribution

Year of productions:  1990

Power distribution

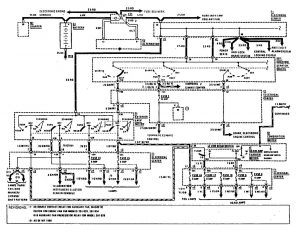

Mercedes-Benz 190E -  wiring diagram - power distribution (part 1)
Mercedes-Benz 190E – wiring diagram – power distribution (part 1)

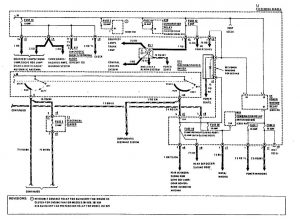

Mercedes-Benz 190E - wiring diagram - power distribution (part 2)
Mercedes-Benz 190E – wiring diagram – power distribution (part 2)

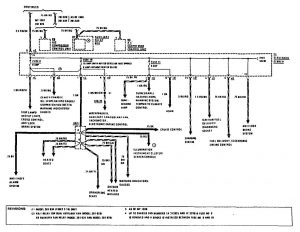

Mercedes-Benz 190E - wiring diagram - power distribution (part 3)
Mercedes-Benz 190E – wiring diagram – power distribution (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
