Mercedes-Benz 190E (1990) – wiring diagrams – HVAC Controls

Mercedes-Benz 190E (1990) – wiring diagrams – HVAC Controls

Year of productions:  1990

HVAC Controls

Version 1

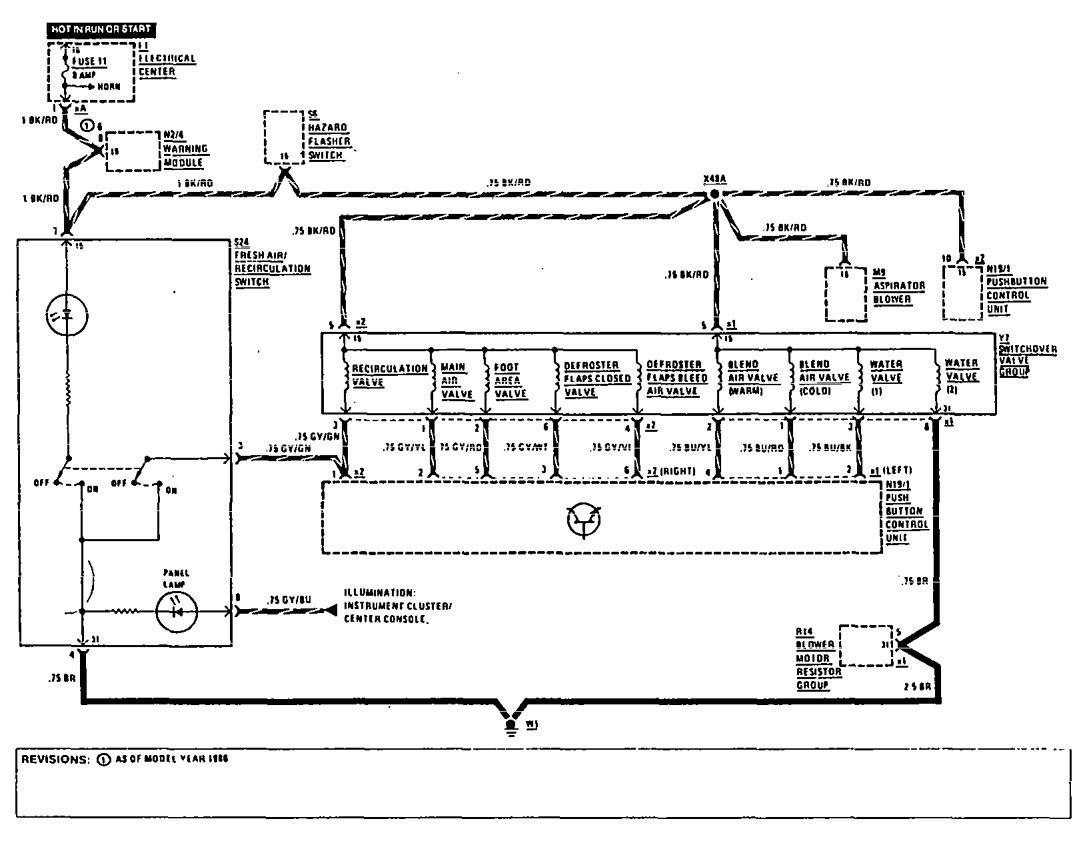

Mercedes-Benz 190E -  wiring diagram - HVAC controls (part 1)
Mercedes-Benz 190E – wiring diagram – HVAC controls (part 1)

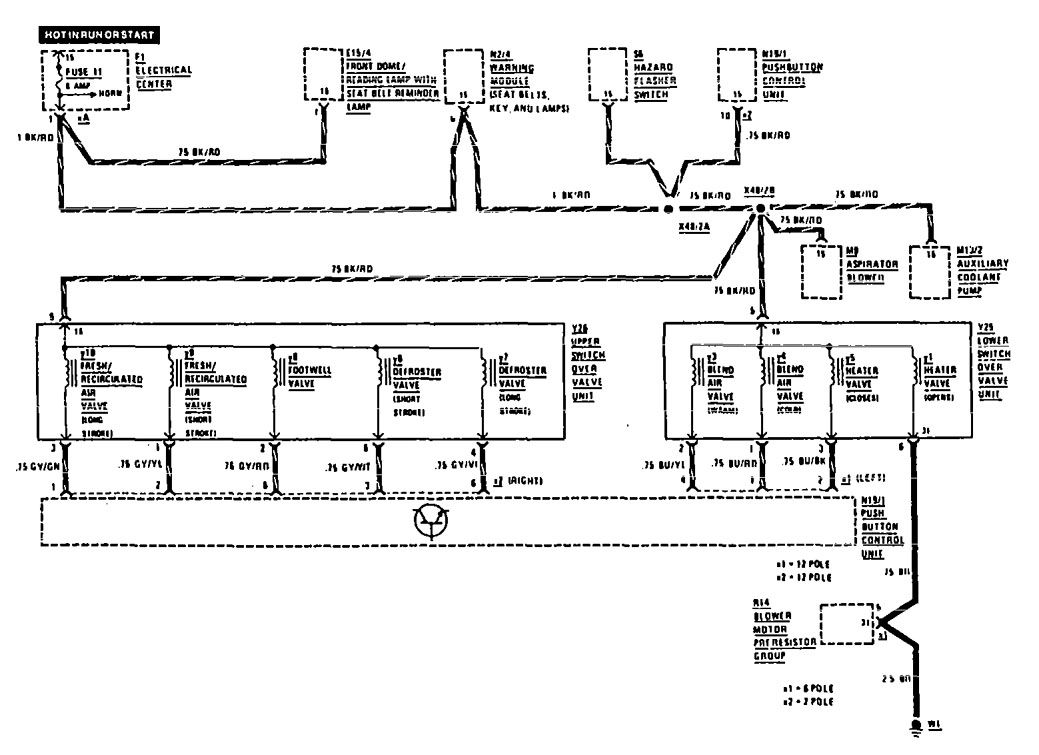

Mercedes-Benz 190E -  wiring diagram - HVAC controls (part 2)
Mercedes-Benz 190E – wiring diagram – HVAC controls (part 2)

Version 2

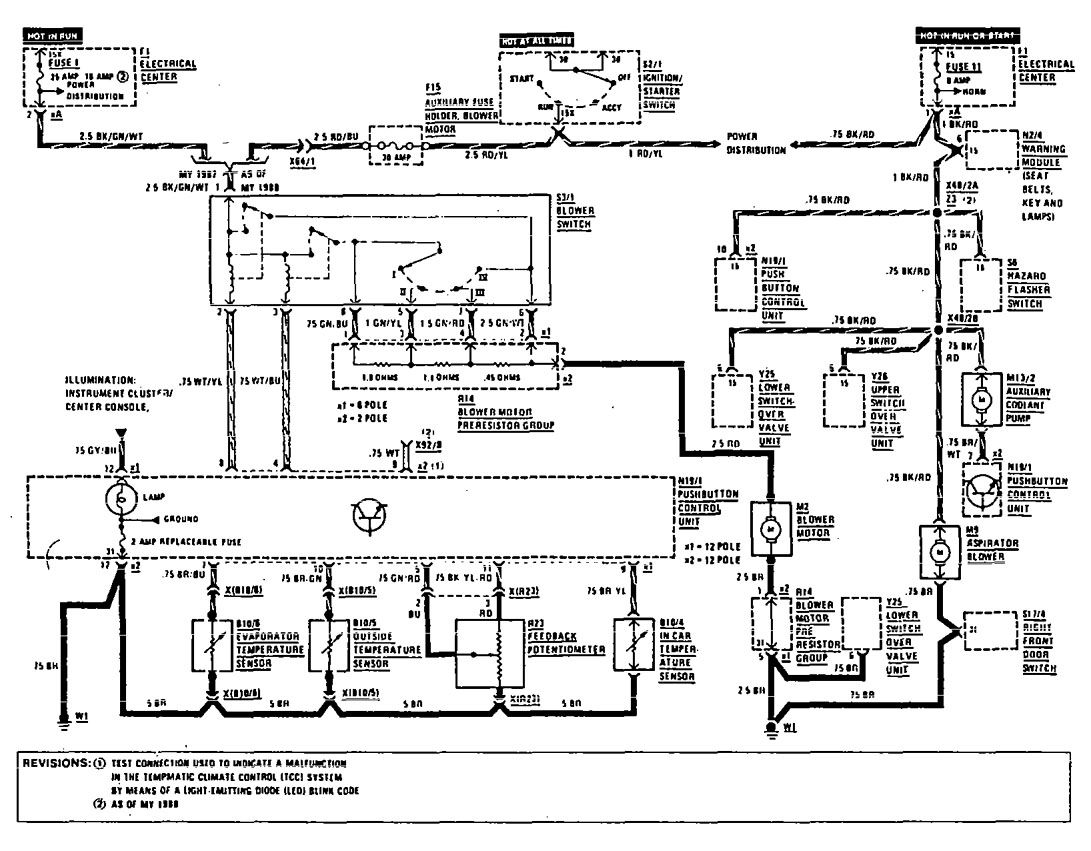

Mercedes-Benz 190E - wiring diagram - HVAC controls
Mercedes-Benz 190E – wiring diagram – HVAC controls

Version 3

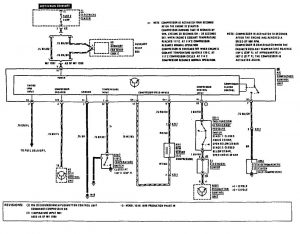

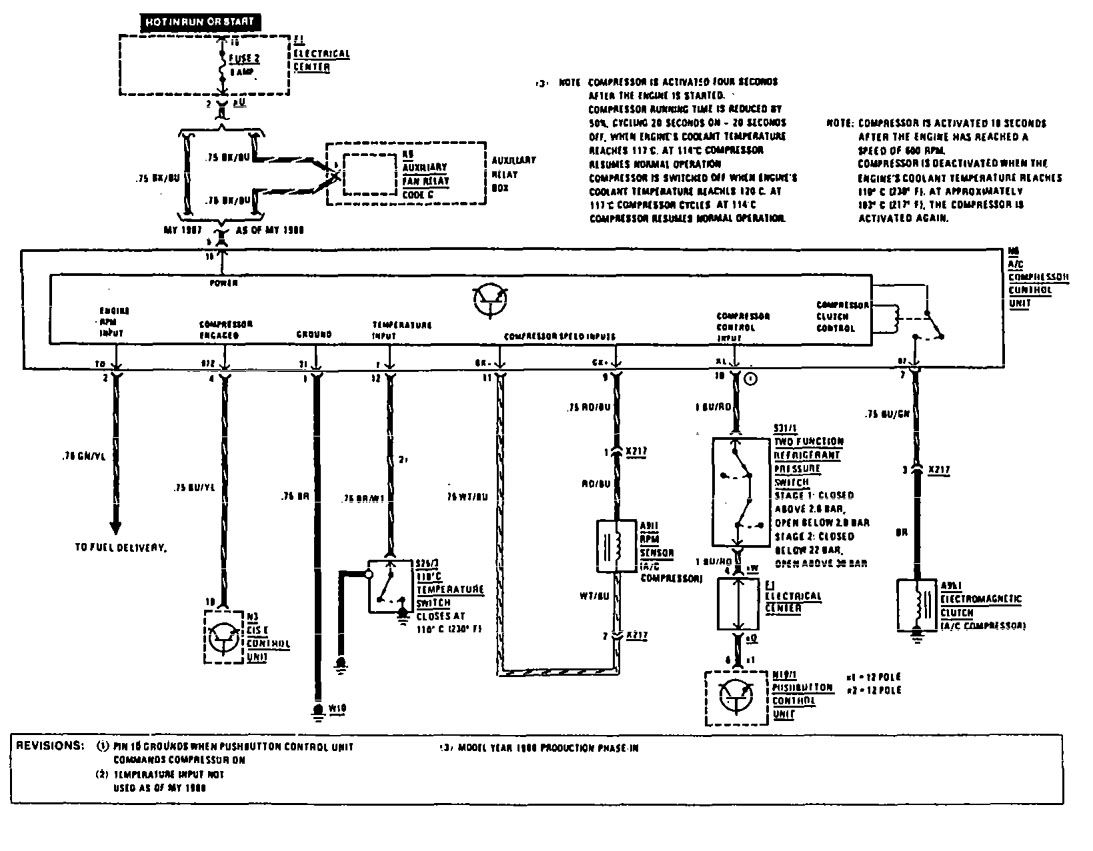

Mercedes-Benz 190E - wiring diagram - HVAC controls (part 1)
Mercedes-Benz 190E – wiring diagram – HVAC controls (part 1)

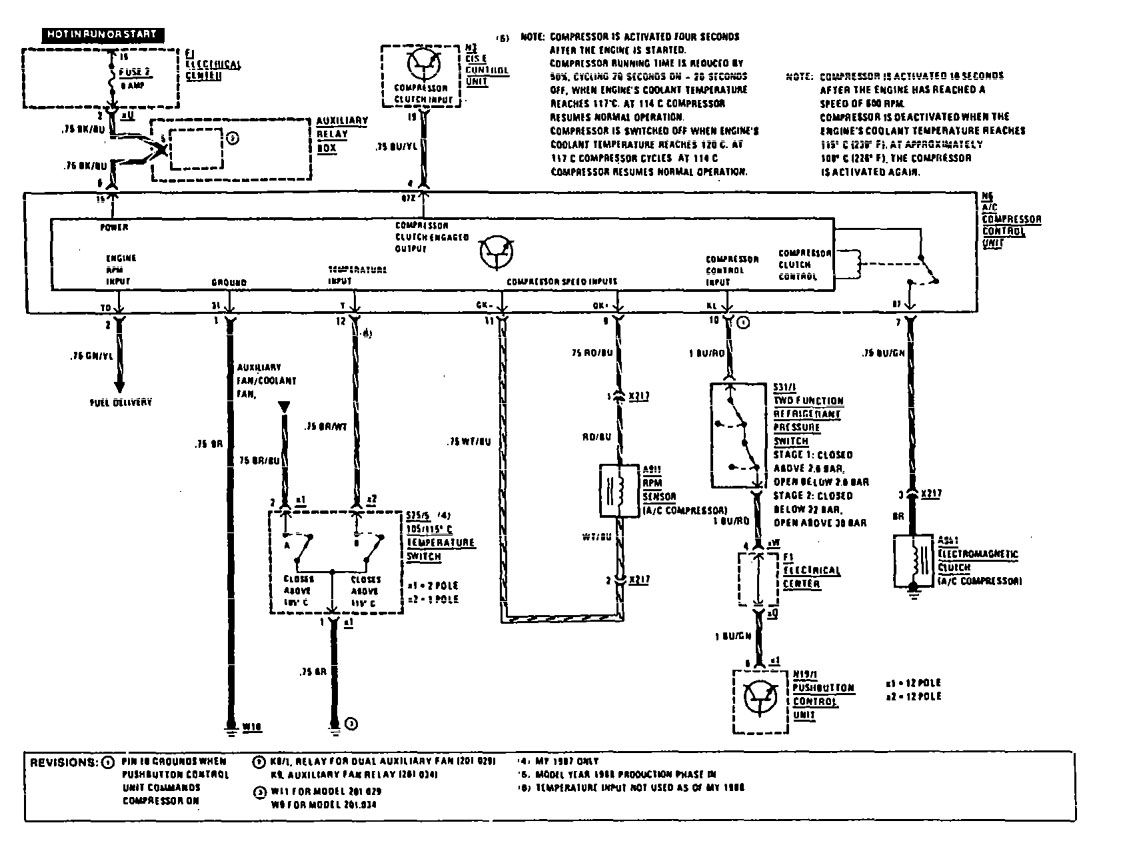

Mercedes-Benz 190E - wiring diagram - HVAC controls (part 2)
Mercedes-Benz 190E – wiring diagram – HVAC controls (part 2)

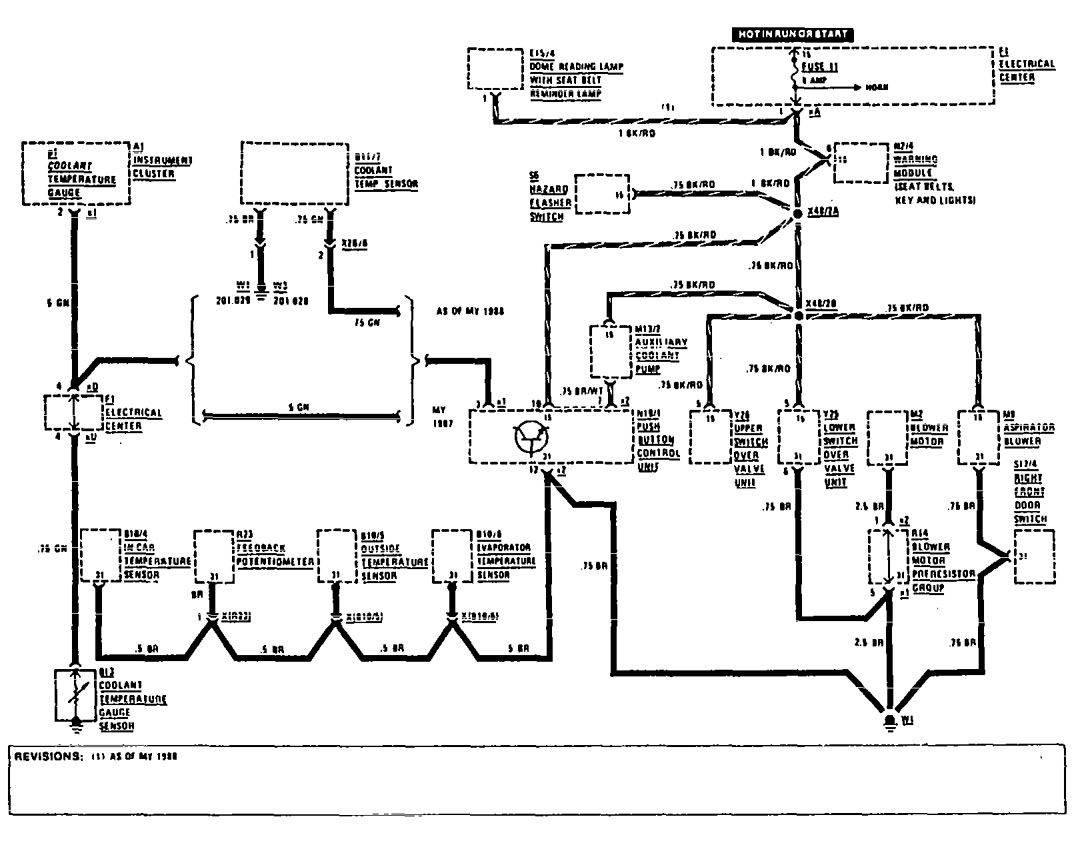

Mercedes-Benz 190E - wiring diagram - HVAC controls (part 3)
Mercedes-Benz 190E – wiring diagram – HVAC controls (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
