Mercedes-Benz 190E (1990) – wiring diagrams – headlamps

Mercedes-Benz 190E (1990) – wiring diagrams – headlamps

Year of productions:  1990

Headlamps

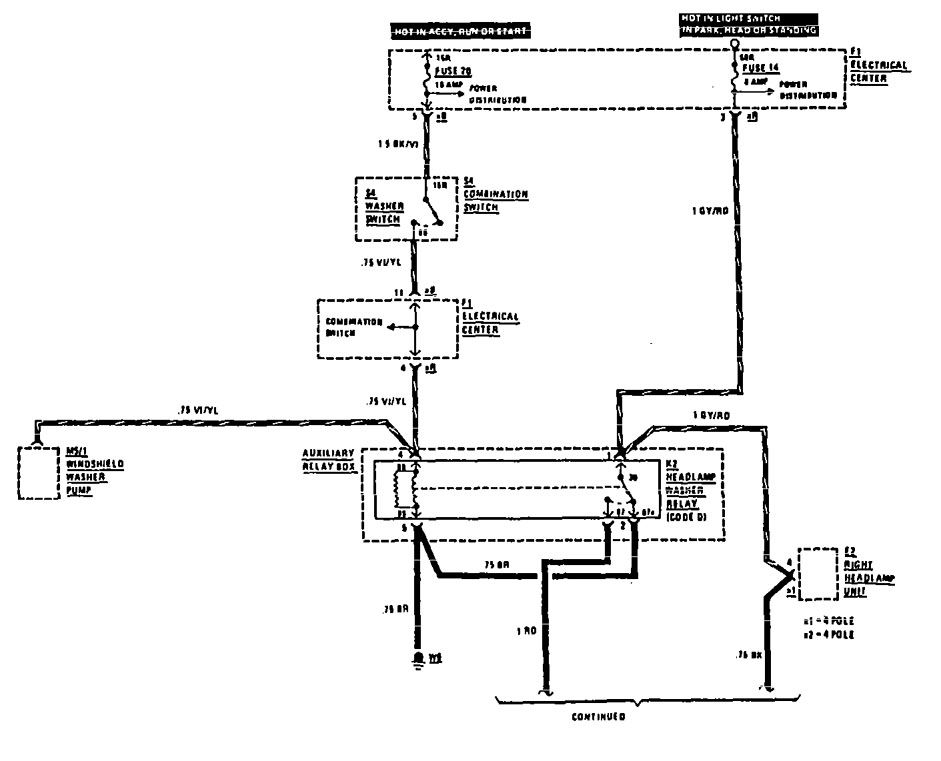

Mercedes-Benz 190E -  wiring diagram -  headlamps (part 1)
Mercedes-Benz 190E – wiring diagram –
headlamps (part 1)

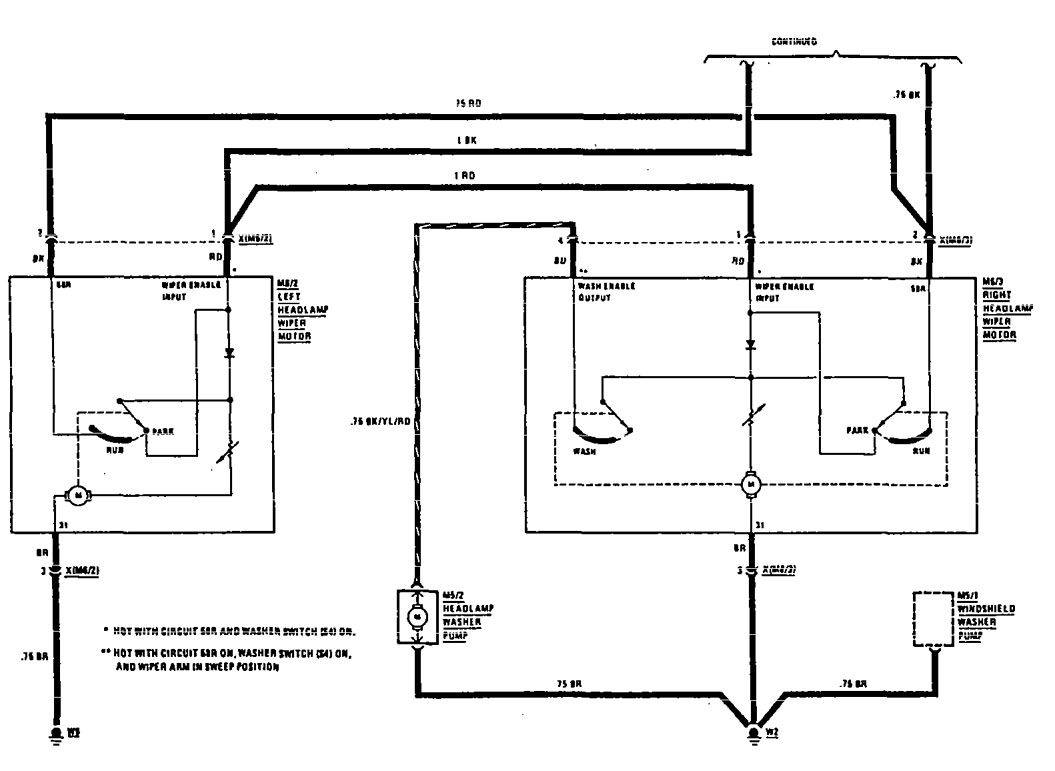

Mercedes-Benz 190E - wiring diagram - headlamps (part 2)
Mercedes-Benz 190E – wiring diagram – headlamps (part 2)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
