Year of productions:  1990

Ground distribution

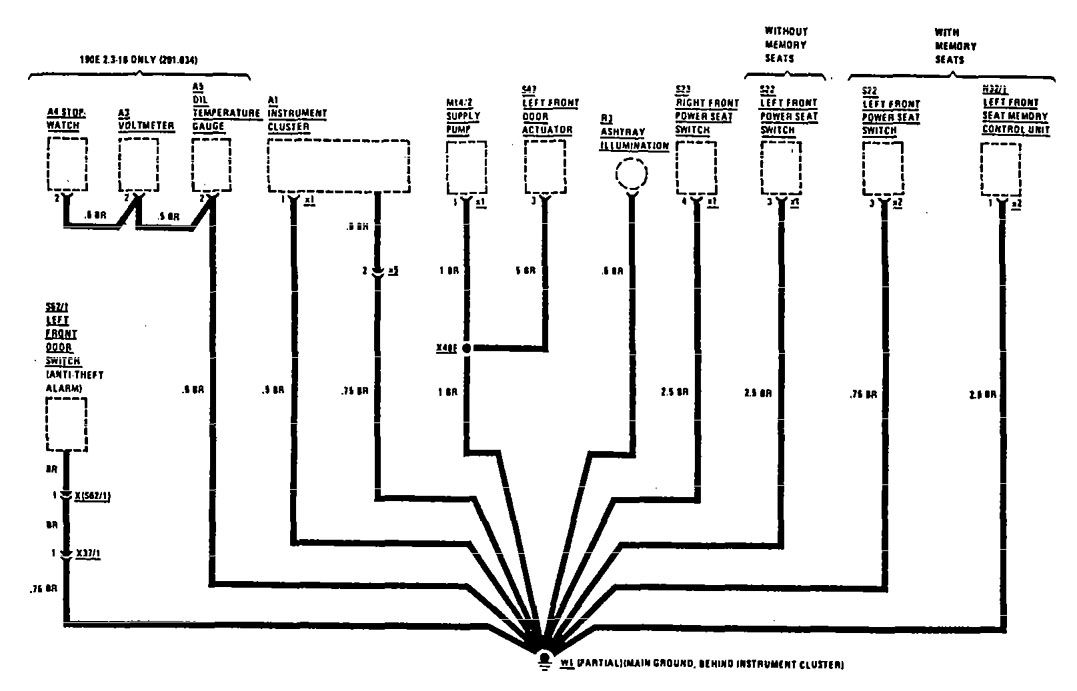

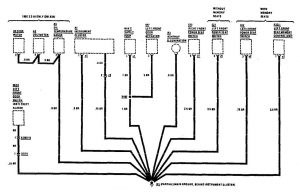

Mercedes-Benz 190E -  wiring diagram - ground distribution (part 1)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 1)

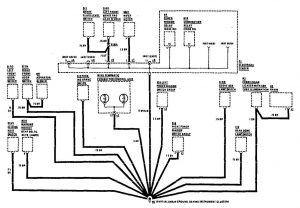

Mercedes-Benz 190E -  wiring diagram - ground distribution (part 2)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 2)

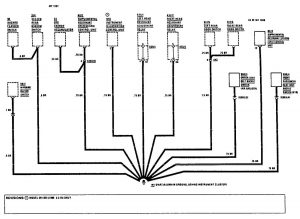

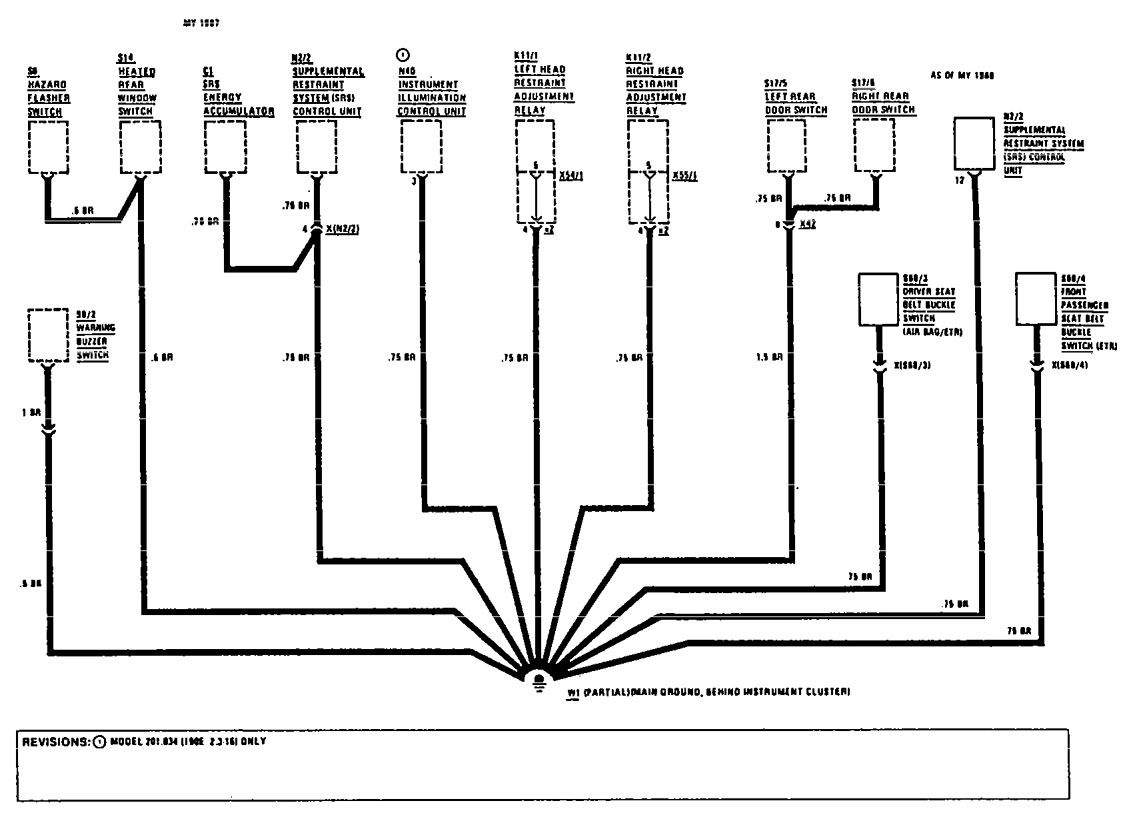

Mercedes-Benz 190E - wiring diagram - ground distribution (part 3)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 3)

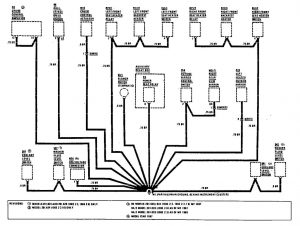

Mercedes-Benz 190E - wiring diagram - ground distribution (part 4)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 4)

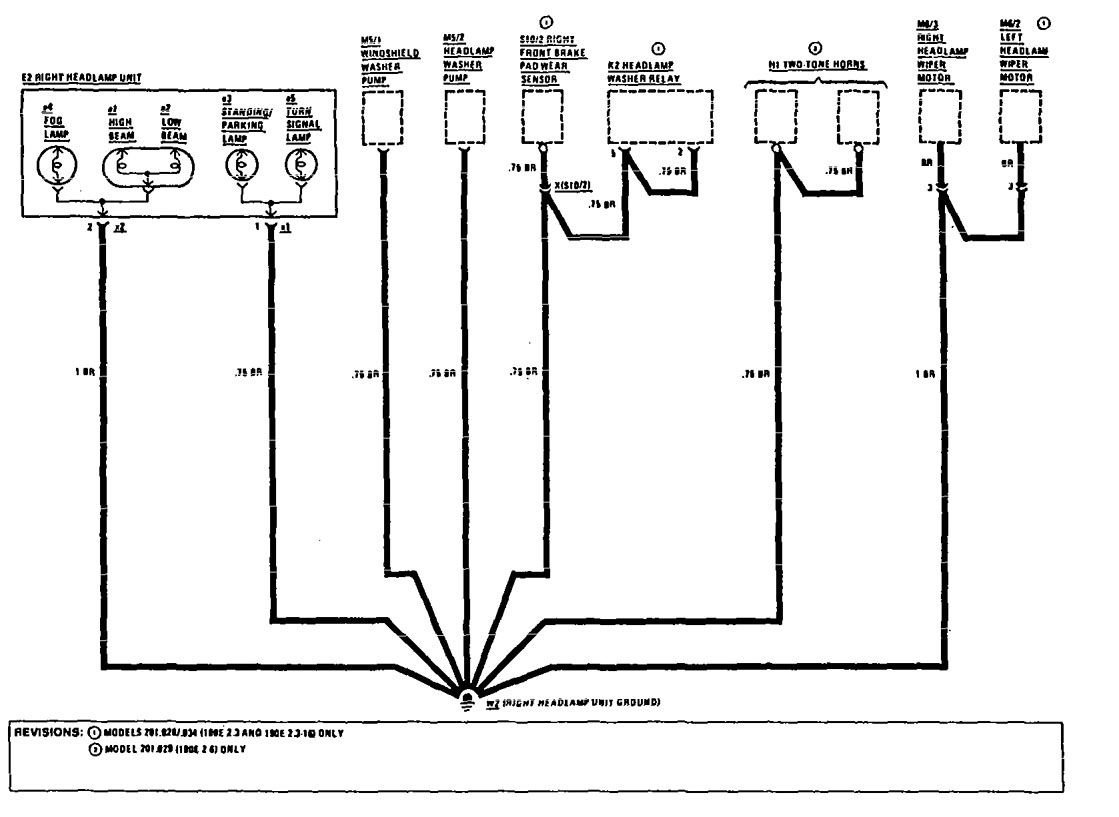

Mercedes-Benz 190E - wiring diagram - ground distribution (part 5)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 5)

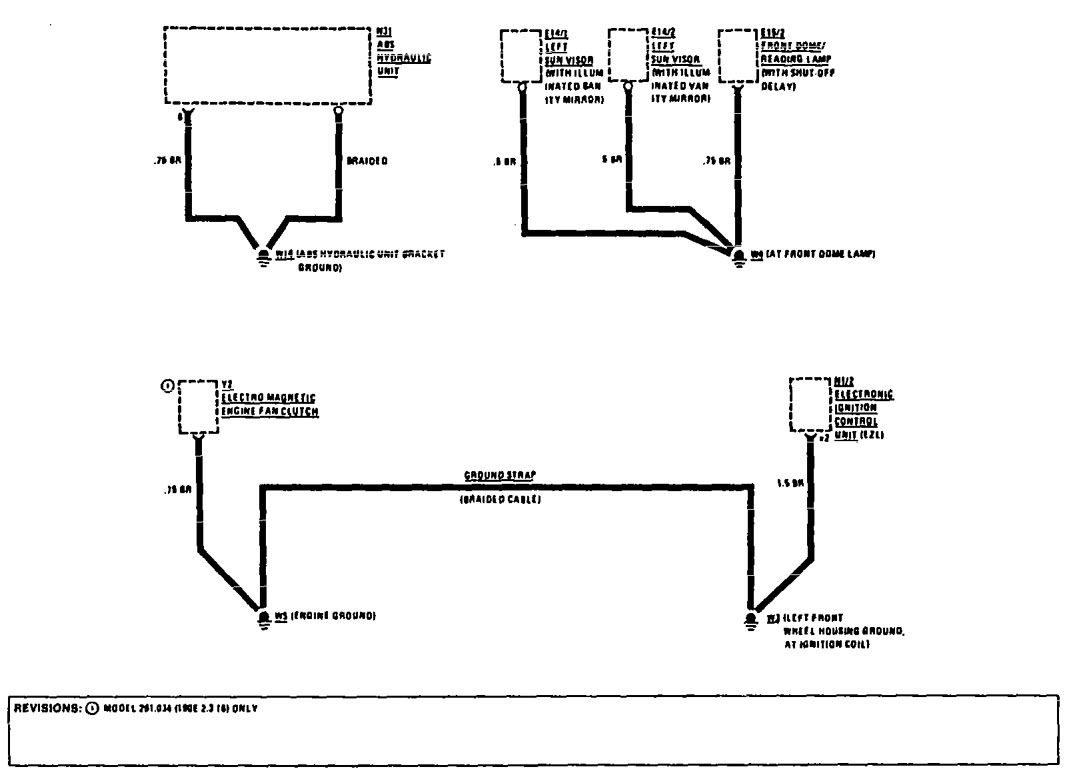

Mercedes-Benz 190E - wiring diagram - ground distribution (part 6)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 6)

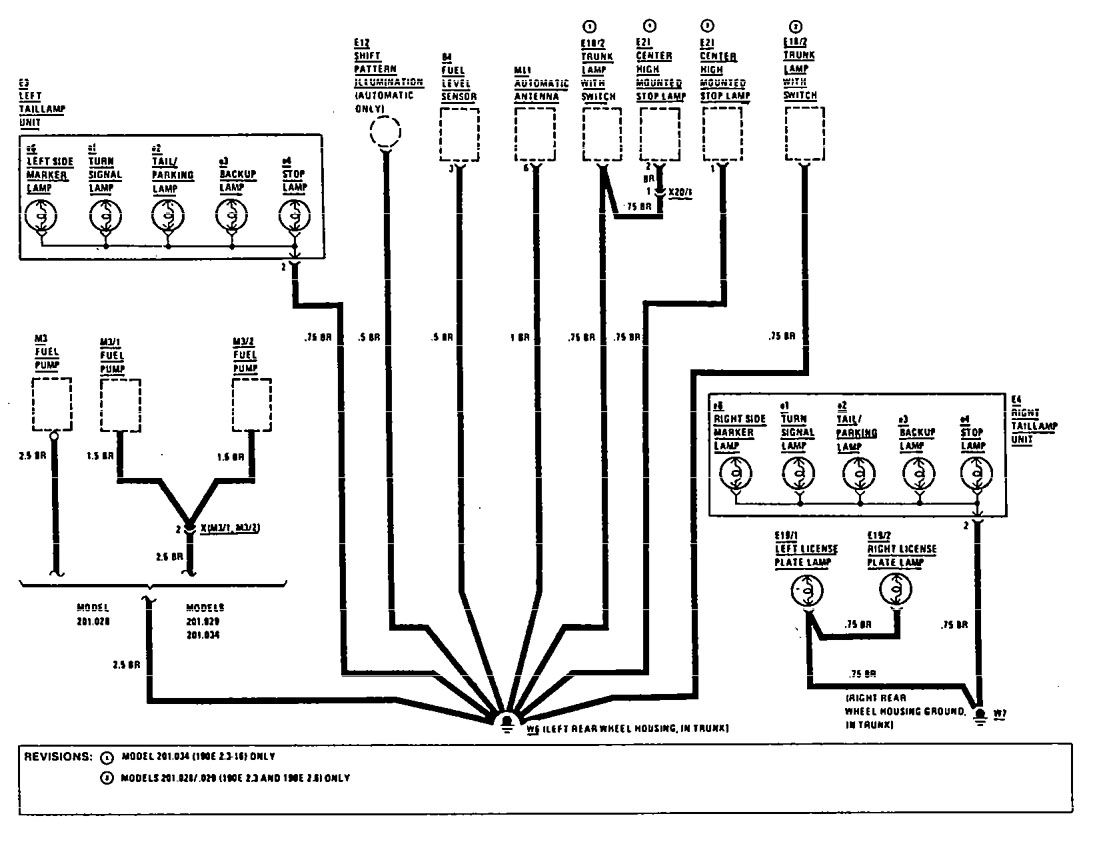

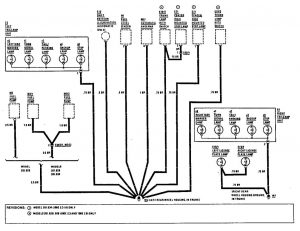

Mercedes-Benz 190E - wiring diagram - ground distribution (part 7)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 7)

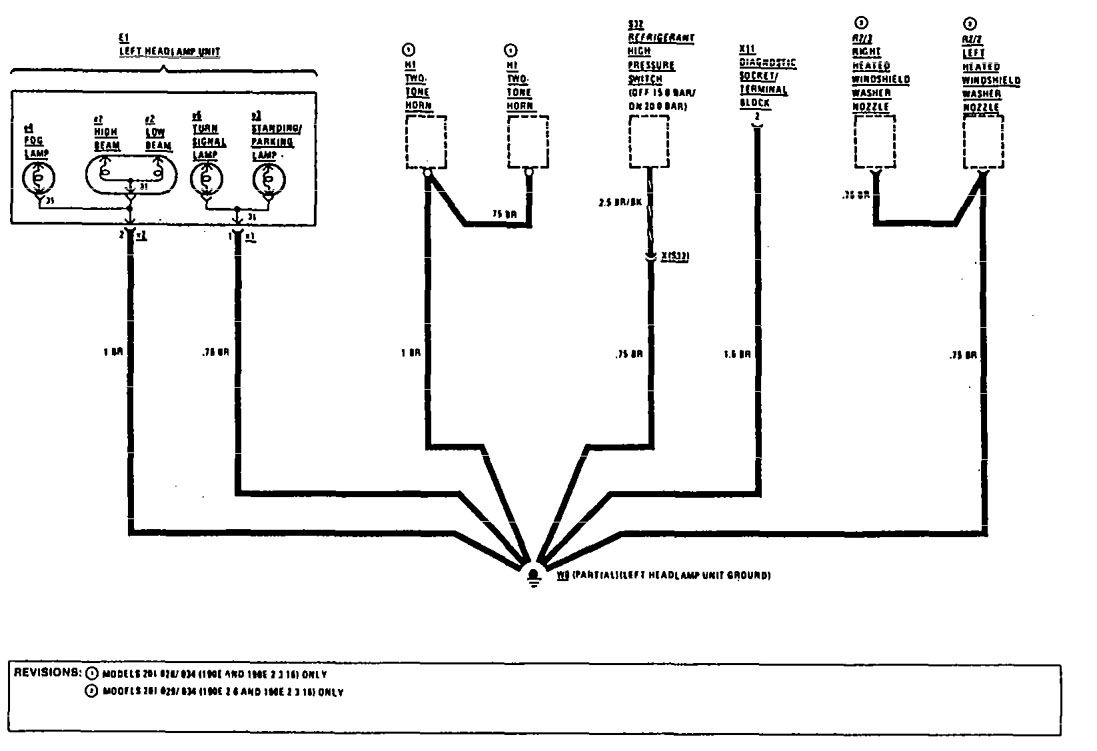

Mercedes-Benz 190E - wiring diagram - ground distribution (part 8)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 8)

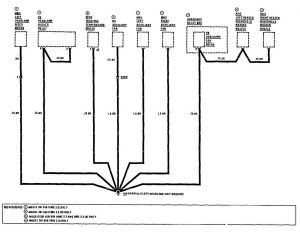

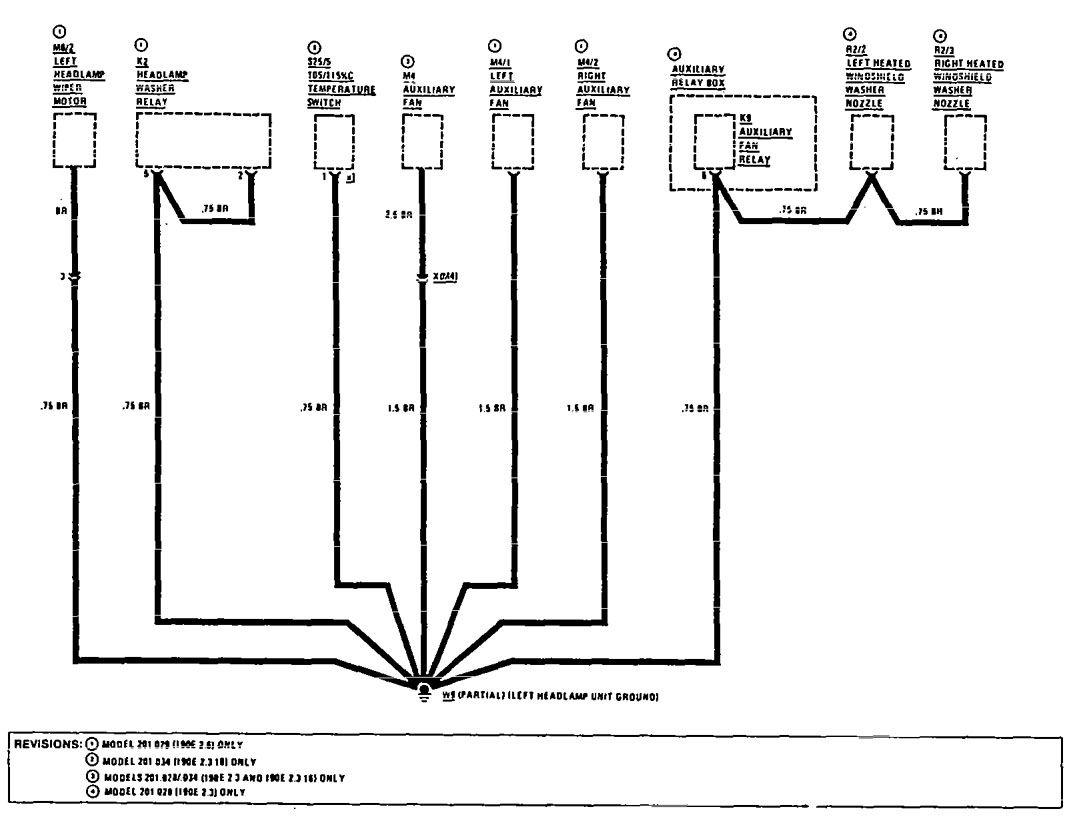

Mercedes-Benz 190E - wiring diagram - ground distribution (part 9)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 9)

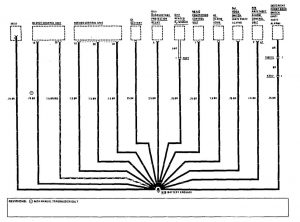

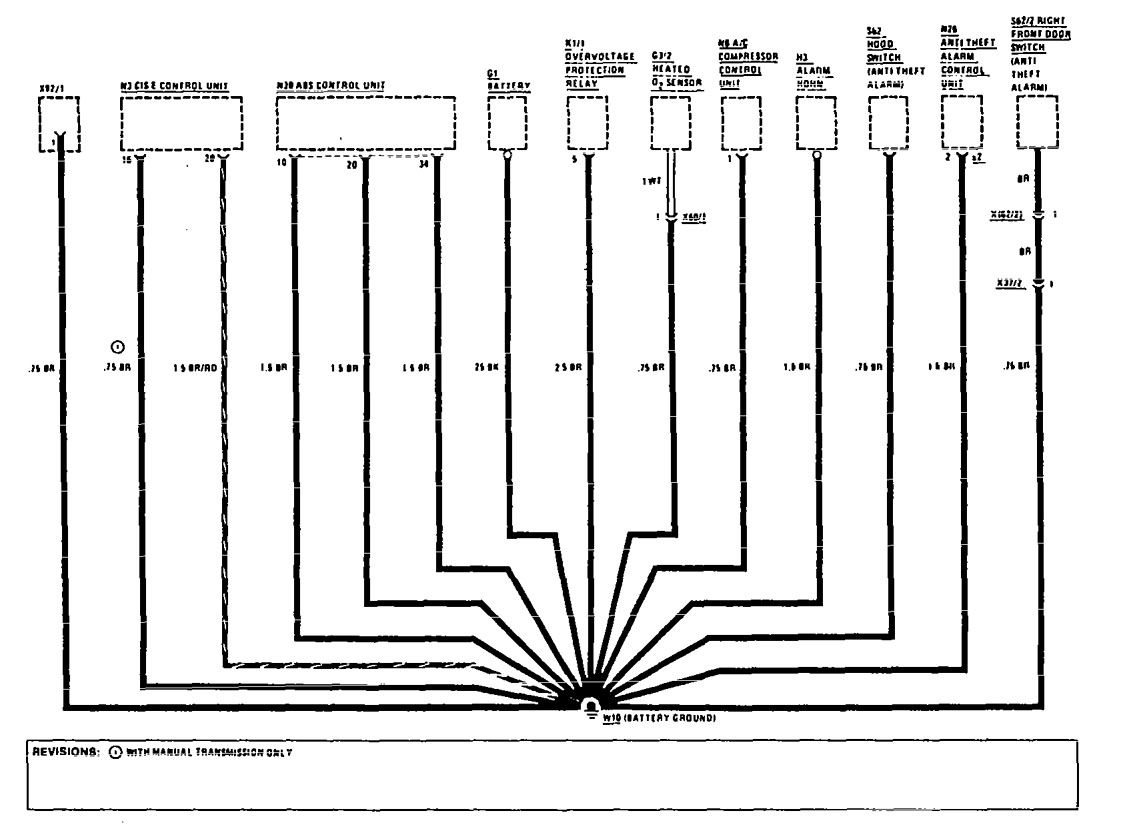

Mercedes-Benz 190E - wiring diagram - ground distribution (part 10)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 10)

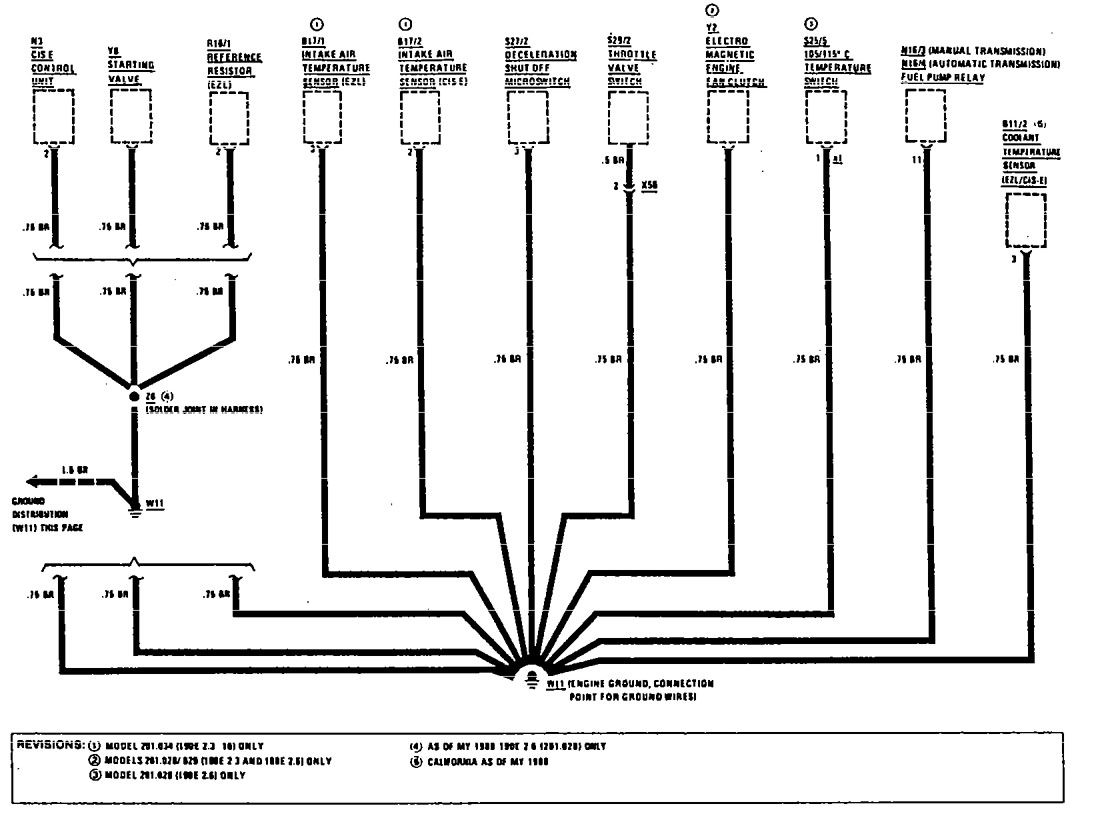

Mercedes-Benz 190E - wiring diagram - ground distribution (part 11)
Mercedes-Benz 190E – wiring diagram – ground distribution (part 11)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
