Mercedes-Benz 190E (1990 – 1991) – wiring diagrams – fog lamps

Mercedes-Benz 190E (1990 – 1991) – wiring diagrams – fog lamps

Year of productions:  1990, 1991

Fog lamps

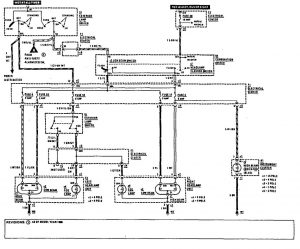

Mercedes-Benz 190E - wiring diagram - fog lamps

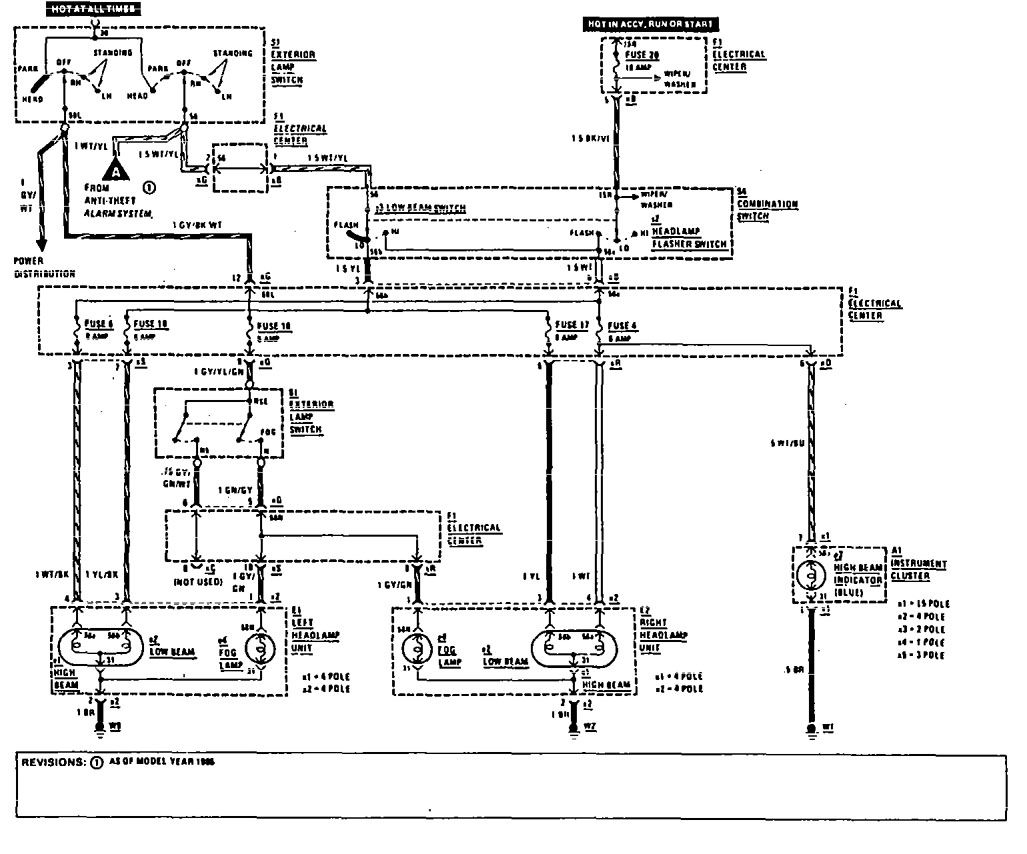

Mercedes-Benz 190E – wiring diagram – fog lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
