Mercedes-Benz 190E (1990) – wiring diagrams – courtesy lamps

Mercedes-Benz 190E (1990) – wiring diagrams – courtesy lamps

Year of productions:  1990

Courtesy lamps

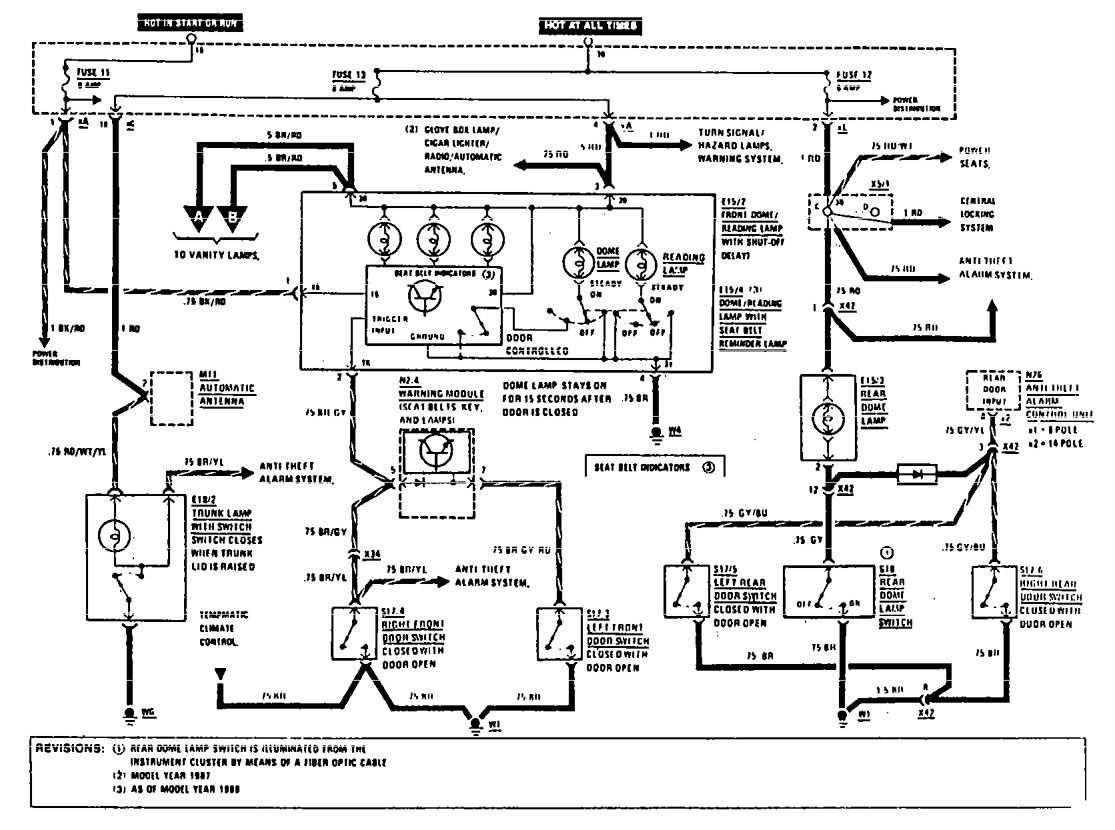

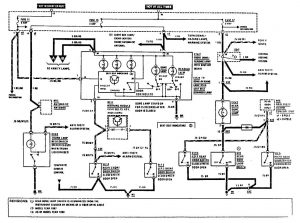

Mercedes-Benz 190E -  wiring diagram - courtesy lamps
Mercedes-Benz 190E –
wiring diagram – courtesy lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
