Mercedes Benz 190E (1992) – wiring diagrams – starting

Mercedes Benz 190E (1992) – wiring diagrams – starting

Year of productions:  1992

Starting

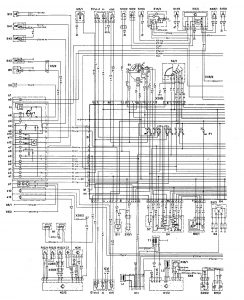

Mercedes-Benz 190E - wiring diagram - starting (part 1)
Mercedes-Benz 190E – wiring diagram – starting (part 1)

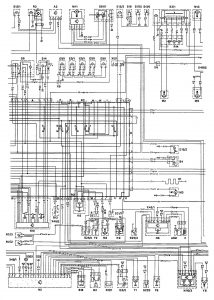

Mercedes-Benz 190E - wiring diagram - starting (part 2)
Mercedes-Benz 190E – wiring diagram – starting (part 2)

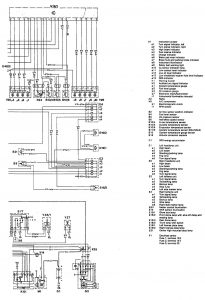

Mercedes-Benz 190E - wiring diagram - starting (part 3)
Mercedes-Benz 190E – wiring diagram – starting (part 3)

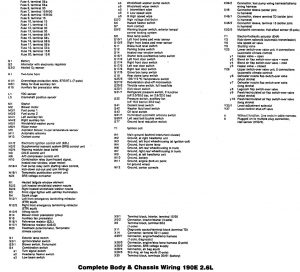

Mercedes-Benz 190E - wiring diagram - starting (part 4)
Mercedes-Benz 190E – wiring diagram – starting (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
