Mercedes 190E (1992) – wiring diagrams – cooling fans

Mercedes 190E (1992) – wiring diagrams – cooling fans

Year of productions:  1992

Cooling fans

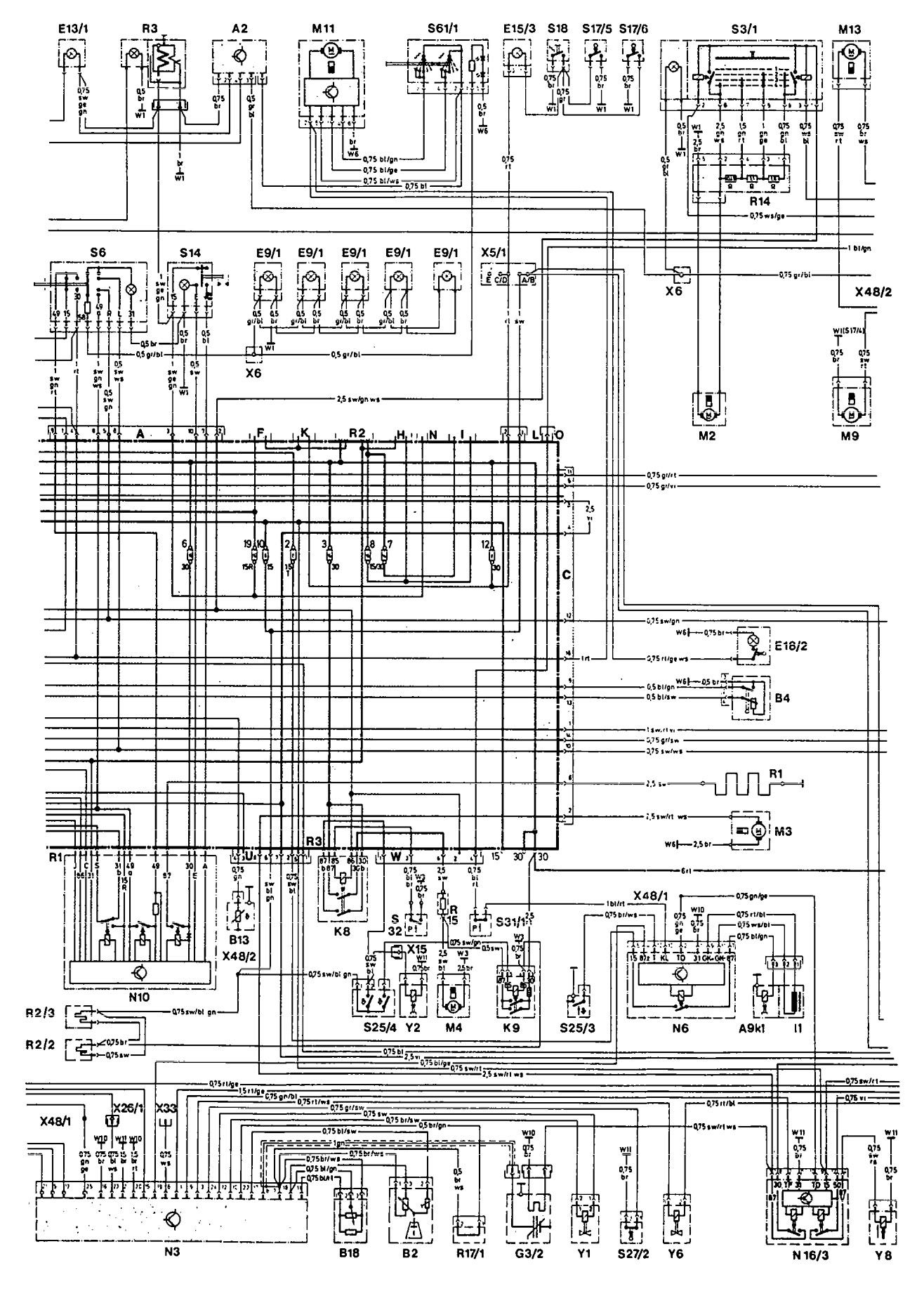

Mercedes Benz 190E -  wiring diagram - cooling fans (part 1)
Mercedes Benz 190E – wiring diagram – cooling fans (part 1)

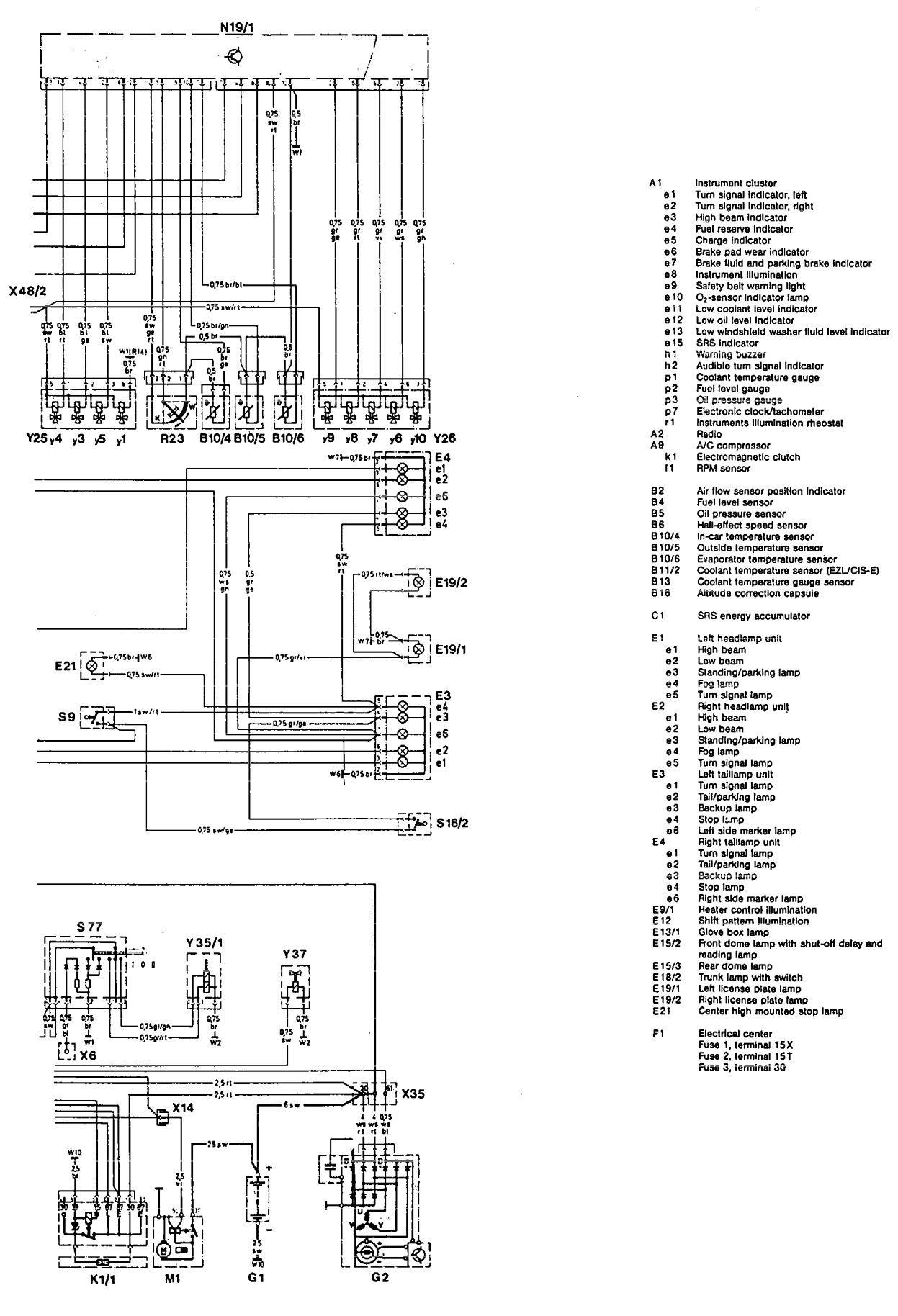

Mercedes Benz 190E -  wiring diagram - cooling fans (part 2)
Mercedes Benz 190E – wiring diagram – cooling fans (part 2)

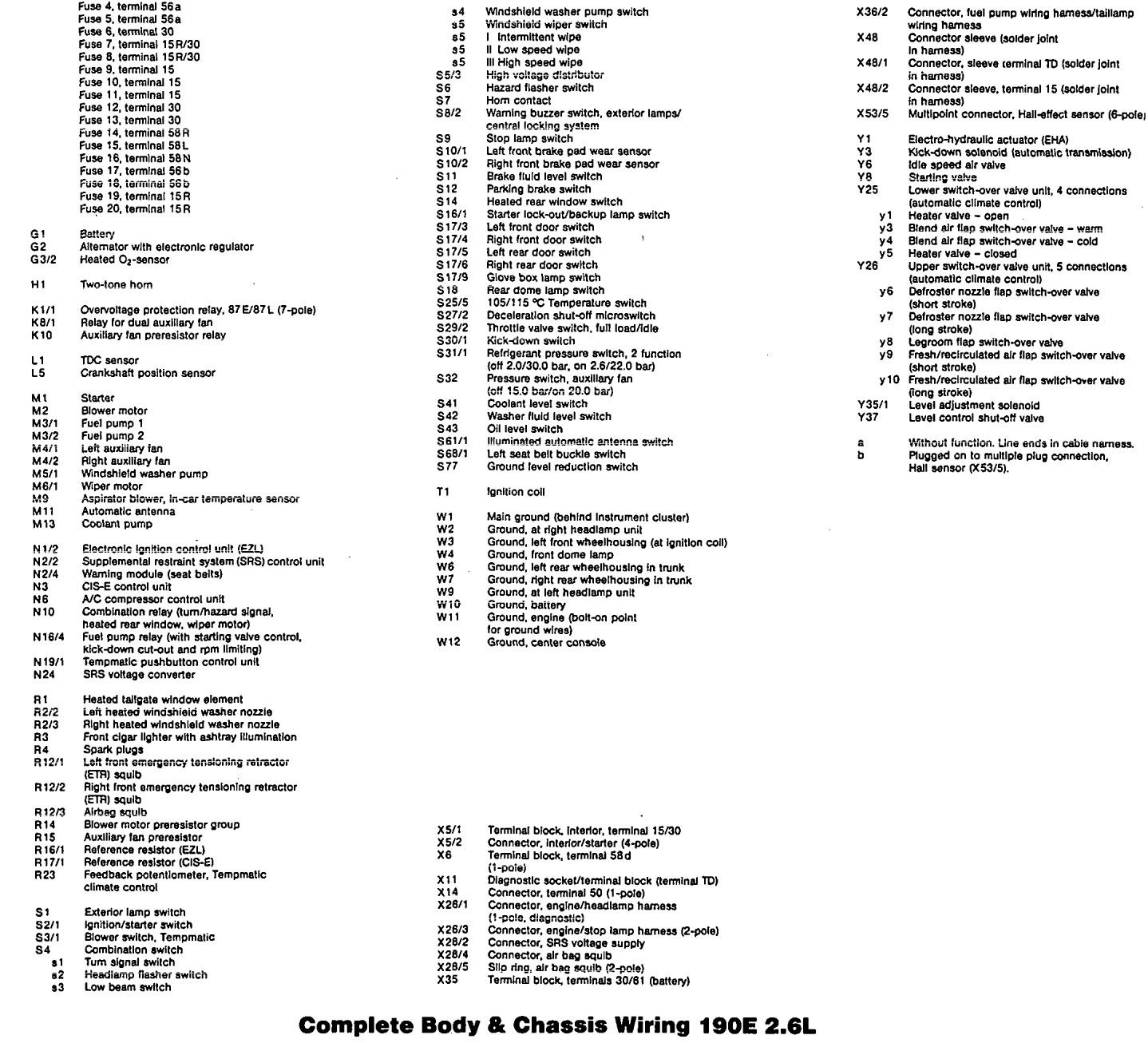

Mercedes Benz 190E -  wiring diagram - cooling fans (part 3)
Mercedes Benz 190E – wiring diagram – cooling fans (part 3)

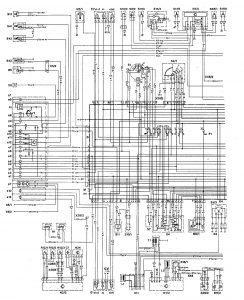

Mercedes Benz 190E -  wiring diagram - cooling fans (part 4)
Mercedes Benz 190E – wiring diagram – cooling fans (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
