Year of productions:  1990, 1991

Rear windows defogger

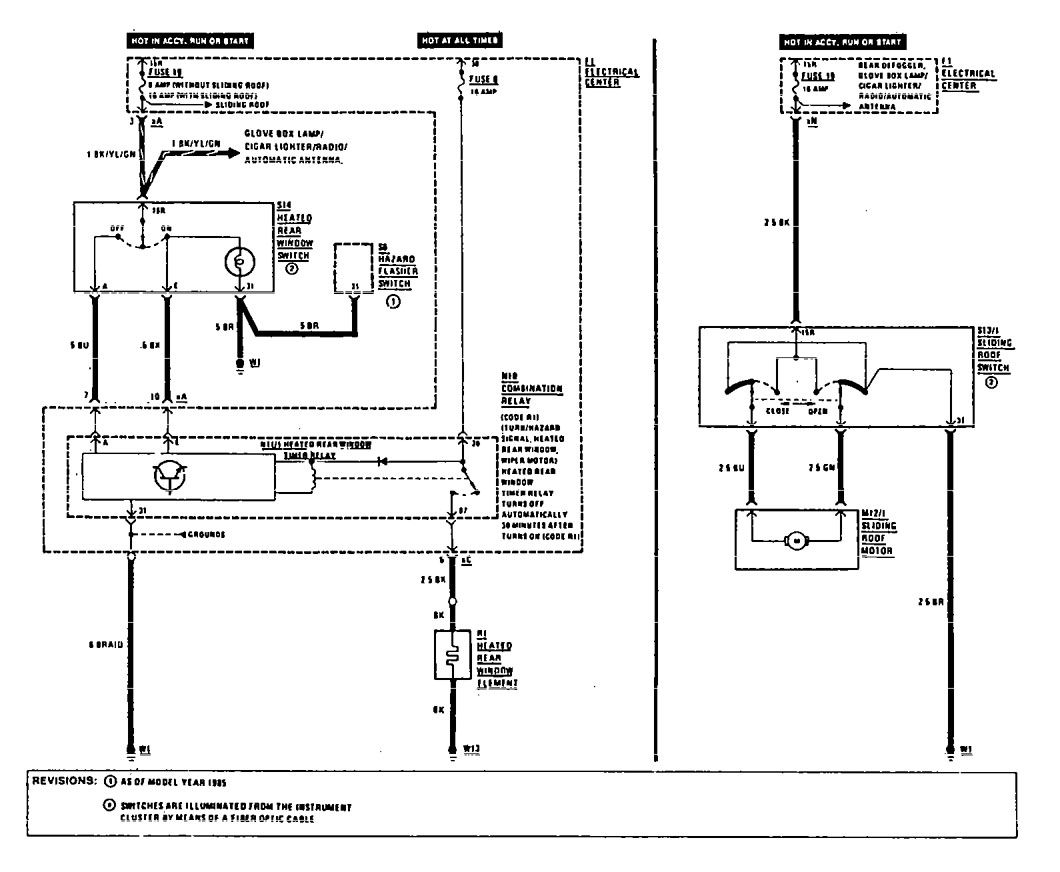

Mercedes Benz 190E - wiring diagram - rear window defogger
Mercedes Benz 190E – wiring diagram – rear window defogger

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
